Honda HR-V: Transmission Housing Secondary Drive Gear Removal and Installation (CVT)
Special Tools Required
Driver Handle, 40 mm I.D. 07746-0030100
.png)
Bearing Driver Attachment, 30 mm I.D.
07746-0030300
.png)
Snap Ring Pliers 07LGC-0010100
.png)
Removal
1. Secondary Drive Gear - Remove
.png)

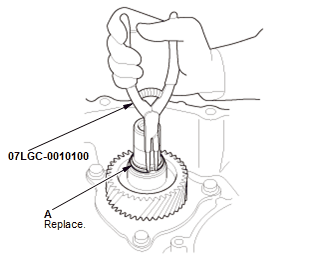

- Remove the snap ring (A) using the snap ring pliers.
.png)

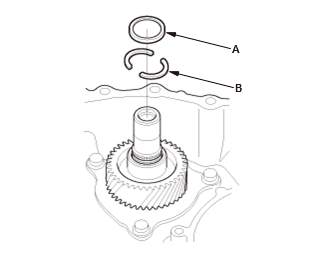

- Remove the cotter retainer (A) and the cotters (B).
.png)

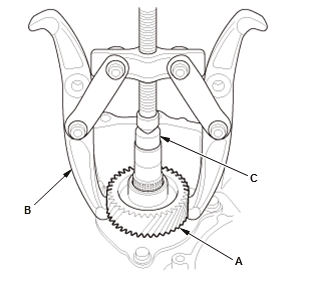

- Remove the secondary drive gear (A) using a puller (B) and a
spacer (C).
Installation
NOTE: Apply a light coat of clean transmission fluid on all parts before
installation.
1. Secondary Drive Gear - Install
.png)

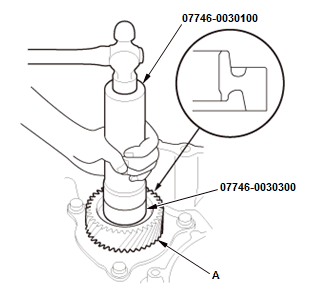

- Install the secondary drive gear (A) as shown using the 40 mm I.D.
driver
handle and the 30 mm I.D. bearing driver attachment.
.png)
- Install the cotters (A) and the cotter retainer (B).
.png)
- Install a new snap ring (A) using the snap ring pliers.
NOTE:
- Be careful not to deform the snap ring by opening/closing it
excessively.
- Make sure the snap ring is firmly installed in the groove.
