Honda HR-V: Front Passenger's Weight Sensor Removal and Installation
Removal
SRS components are located in this area. Review the SRS component locations -
Refer to: SRS Component
Location Index (KA/KC), or SRS Component Location Index (KA/KC) and the
precautions and
procedures before doing repairs or service.
NOTE:
- Removal of the front passenger's weight sensors must be done according
to Precautions and
Procedures.
- The front passenger's weight sensor is part of the seat rail and must be
replaced as an assembly.
1. 12 Volt Battery Terminal - Disconnect
NOTE: Wait at least 3 minutes before starting work.
2. Front Seat Frame (Passenger's side) - Remove
3. Front Passenger's Seat Rail/Front Passenger's Weight Sensors - Remove
.png)

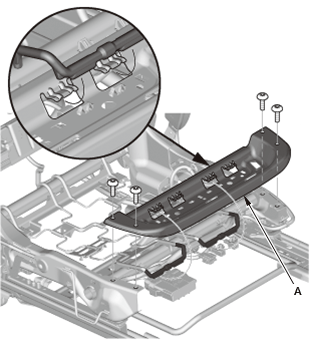

- Remove the seat cushion frame (A).
.png)

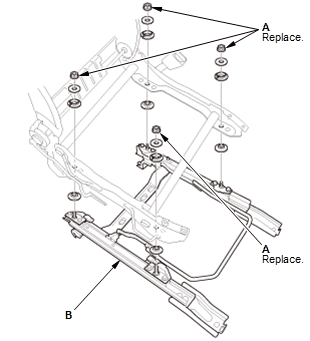

- Remove the nuts (A), then remove the front passenger's seat rail/front
passenger's weight sensors as an assembly (B).
Installation
SRS components are located in this area. Review the SRS component locations -
Refer to: SRS Component
Location Index (KA/KC), or SRS Component Location Index (KA/KC) and the
precautions and
procedures before doing repairs or service.
NOTE:
- Be sure to install the harness wires so they are not pinched or
interfering with other parts.
- The front passenger's weight sensor is part of the seat rail and must be
replaced as an assembly.
1. Front Passenger's Seat Rail/Front Passenger's Weight Sensors - Install
.png)

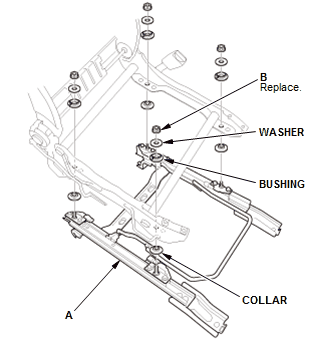

- Install the front passenger's seat rail/front passenger's weight sensors
as an assembly (A) to the seat frame as shown, and loosely tighten the new
nuts (B).

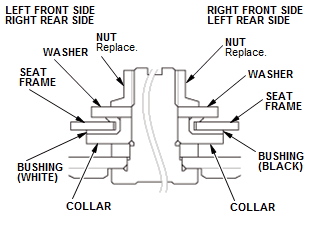

NOTE: The bushings can be identified by their color. Make
sure to install the bushings as shown.
.png)
.png)
Fig. 4: Front Passenger's Seat Rail/Front Passenger's Weight Sensors
Tightening Sequence With
Torque Specifications

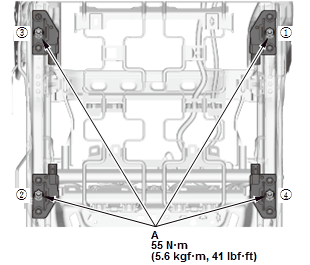

- Tighten the nuts (A) to the specified torque.
NOTE: Tighten the nuts in the numbered sequence shown.
.png)

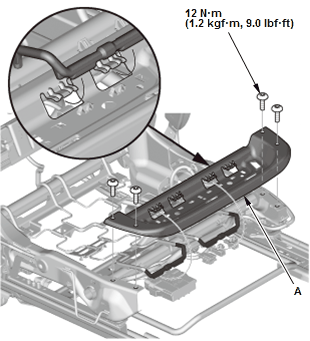

Fig. 5: Seat Cushion Frame With Torque Specifications
- Install the seat cushion frame (A).
2. Front Seat Frame (Passenger's side) - Install
3. 12 Volt Battery Terminal - Connect
4. Seat Operation - Confirm
- Move the front seat and the seat-back through their full ranges of
movement, making sure the
harness are not pinched or interfering with other parts.
5. Front Passenger's Weight Sensor Unit - Initialize
6. Front Passenger's Weight Sensor Unit - Operation Check
7. SRS Operation - Confirm
- Turn the vehicle to the ON mode, and check that the SRS indicator comes
on for about 6 seconds
and then goes off.
