Honda HR-V: Transmission Housing Control Shaft Oil Seal Replacement (CVT)
Special Tools Required
Attachment, 22 x 24 mm
07746-001A800
.png)
Driver Handle, 15 x 135L 07749-0010000
.png)
Replacement
NOTE: Apply a light coat of clean transmission fluid on all parts before
installation.

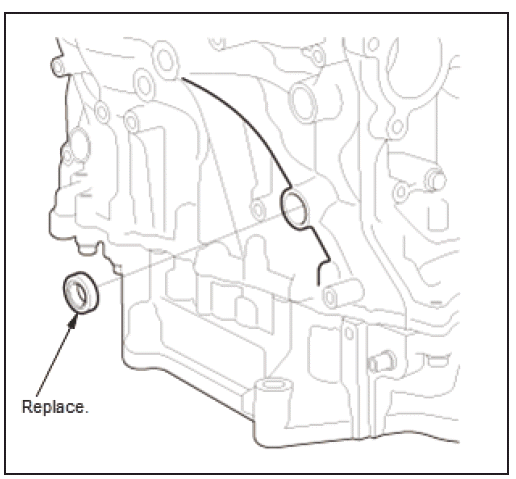

1. Control Shaft Oil Seal - Remove
.png)
2. Control Shaft Oil Seal - Install
.png)
- Install the oil seal (A) flush with the transmission housing using the
15 x
135L driver handle and the 22 x 24 mm bearing driver attachment.
TRANSMISSION HOUSING DRIVEN PULLEY SHAFT BEARING REPLACEMENT (CVT)
*: 07736-A01000B must be used with commercially available 3/8"-16 slide
hammer.
Special Tools Required
Adjustable Bearing Puller, 25-40 mm
07736-A01000B*
.png)
Driver Handle, 40 mm I.D. 07746-0030100
.png)
*: 07736-A01000B must be used with commercially available 3/8"-16 slide
hammer.
Replacement
NOTE: Apply a light coat of clean transmission fluid on all parts before
installation.
1. Driven Pulley Shaft Bearing - Remove
.png)

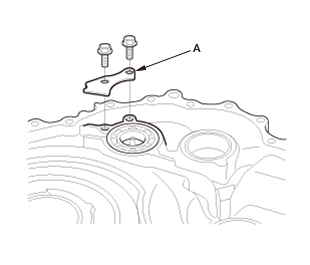

- Remove the bearing set plate (A).
.png)
- Remove the driven pulley shaft bearing (A) using the 25-40 mm adjustable
bearing puller and a commercially available 3/8"-16 slide hammer (B).
.png)
- Remove the oil guide plate (A).
2. Driven Pulley Shaft Bearing - Install
.png)

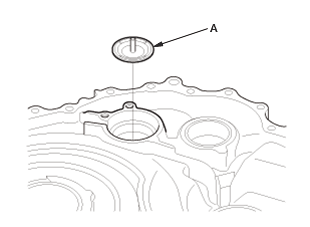

- Install the oil guide plate (A).
.png)

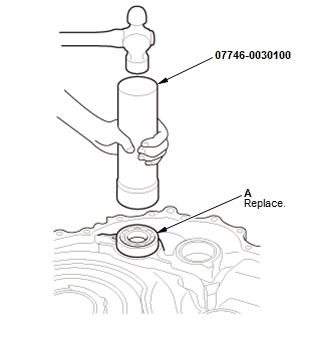

- Install the driven pulley shaft bearing (A) until it bottoms using the
40 mm I.D. driver handle.
.png)

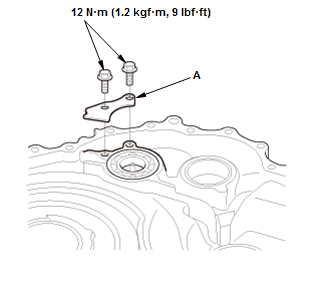

Fig. 33: Bearing Set Plate With Torque Specifications
- Install the bearing set plate (A).
