Honda HR-V: 12 Volt Battery Removal and Installation
Removal
1. 12 Volt Battery Terminal - Disconnect
2. 12 Volt Battery - Remove
.png)

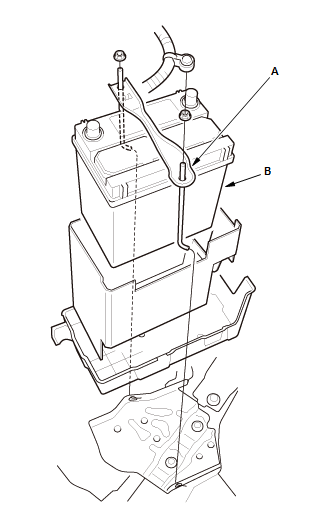

- Remove the 12 volt battery setting plate (A) and the 12 volt
battery (B).
Installation
1. 12 Volt Battery - Install
.png)

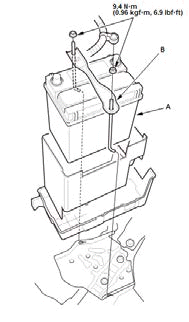

- Install the 12 volt battery (A) and the 12 volt battery setting plate
(B).
NOTE:
Do not deform the 12 volt battery setting plate by over-tightening the nuts.
2. 12 Volt Battery Terminal - Connect
12 VOLT BATTERY TERMINAL DISCONNECTION AND RECONNECTION
Removal
NOTE: After turning the vehicle to the OFF (LOCK) mode, do not disconnect and
isolate the negative cable
connected to the 12 volt battery at least 3 minute.
1. 12 Volt Battery Terminal - Disconnect
.png)

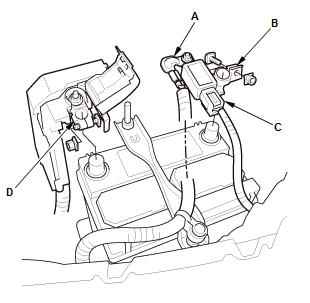

- Make sure the vehicle to the OFF (LOCK) mode
- Disconnect and isolate the cable (A) with the 12 volt battery sensor (B)
from the 12 volt battery.
NOTE :
- Always disconnect the negative side first.
- To protect the 12 volt battery sensor connector (C) from damage, do
not hold it when removing the terminal.
- Do not disconnect the 12 volt battery sensor from the terminal.
- Disconnect the terminal (D) from the 12 volt battery.
Installation
1. 12 Volt Battery Terminal - Connect
.png)
NOTE: If the 12 volt battery performs abnormally, test the 12 volt
battery.
- Clean the 12 volt battery terminals
- Connect the terminal (A) to the 12 volt battery.
NOTE : Always connect
the
positive side first
- Connect the cable and the 12 volt battery sensor (B) to the 12 volt
battery.
NOTE :
To protect the 12 volt battery sensor connector (C) from damage, do not hold
it when
installing the terminal
- Apply multipurpose grease to the terminals to prevent corrosion.
12 VOLT BATTERY TERMINAL FUSE BOX REMOVAL AND INSTALLATION
Removal & Installation
1. 12 Volt Battery Terminal - Disconnect
- Disconnect and isolate the negative cable and 12 volt battery sensor
from the 12 volt
battery.
NOTE:
- Always disconnect the negative cable from the 12 volt battery first.
- Do not hold the 12 volt battery sensor connector, for protecting
from damage when removing
the negative terminal.
2. 12 Volt Battery Terminal Fuse Box - Remove
.png)

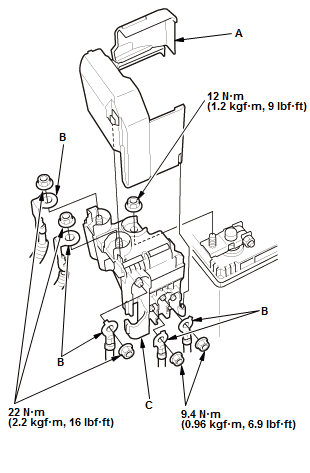

- Remove the cover (A)
- Disconnect the each cable terminals (B) from the 12 volt battery
terminal fuse box (C)
- Remove the 12 volt battery terminal fuse box from the 12 volt
battery terminal.
3. All Removed Parts - Install
- Install the parts in the reverse order of removal.
