Honda HR-V: HFL Microphone Removal and Installation

Removal & Installation

1. HFL Microphone - Remove

Audio Visual Systems - Service Information

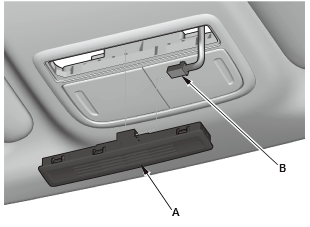

  1. Pull out the HFL microphone (A)
  2. Disconnect the connector (B), then remove the HFL microphone.

Audio Visual Systems - Service Information

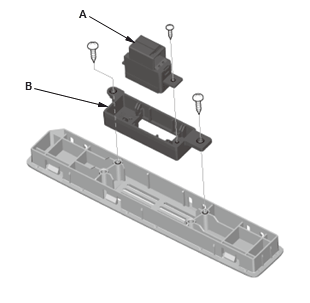

  1. Remove the HFL microphone (A)
  2. Remove the HFL microphone bracket (B) if necessary.

2. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.

HFL SWITCH REMOVAL AND INSTALLATION

Removal & Installation

SRS components are located in this area. Review the SRS component locations - Refer to: SRS Component Location Index (KA/KC), or SRS Component Location Index (KA/KC) and the precautions and procedures before doing repairs or service.

1. Driver's Airbag - Remove

2. Lower Garnish Assembly - Remove

Audio Visual Systems - Service Information

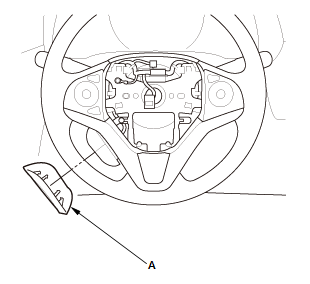

  1. Remove the garnish (A).

Audio Visual Systems - Service Information

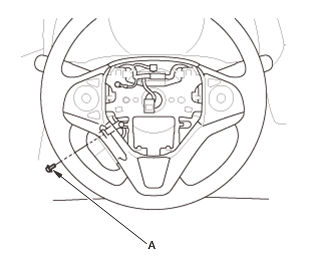

  1. Remove the screw (A).

Audio Visual Systems - Service Information

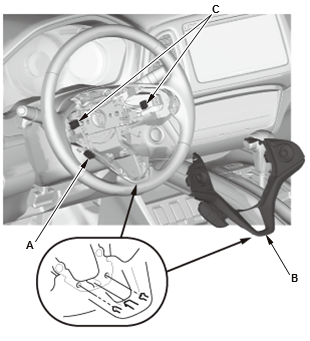

  1. Disconnect the connector (A)
  2. Pull out the lower garnish assembly (B)
  3. Disconnect the connector(s) (C), then remove the lower garnish assembly.

3. HFL Switch - Remove

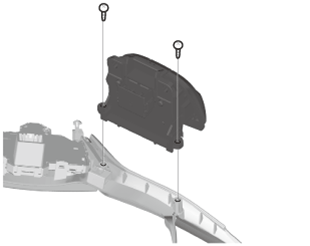

Audio Visual Systems - Service Information

4. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.
