Honda HR-V: Rearview Camera Removal and Installation

Removal & Installation

1. Tailgate Lower Trim - Remove - Refer to: Interior Trim Removal and Installation - Door Areas, or Interior Trim Removal and Installation - Tailgate Areas, or Interior Trim Removal and Installation - Rear Side Area, or Interior Trim Removal and Installation - Cargo Areas, or Interior Trim Removal and Installation - Pillar Areas (With Side Curtain Airbag), or Interior Trim Removal and Installation - Pillar Areas (Without Side Curtain Airbag)

2. Rear License Trim - Remove

3. Rearview Camera - Remove

Audio Visual Systems - Service Information

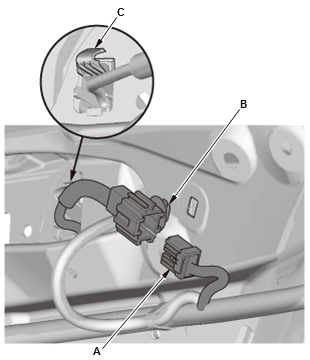

  1. Disconnect the connector (A)
  2. Remove the connector clip (B)
  3. Pushing the tab (C), and pull out the rearview camera.

Audio Visual Systems - Service Information

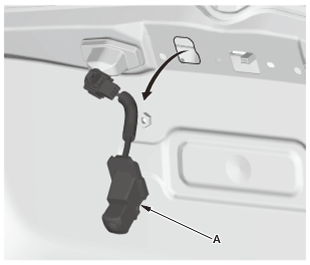

  1. Remove the rearview camera (A).

4. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.

ROOF ANTENNA REMOVAL AND INSTALLATION

Removal & Installation

SRS components are located in this area. Review the SRS component locations - Refer to: SRS Component Location Index (KA/KC), or SRS Component Location Index (KA/KC) and the precautions and procedures before doing repairs or service.

1. Headliner - Remove

2. Roof Antenna - Remove

Audio Visual Systems - Service Information

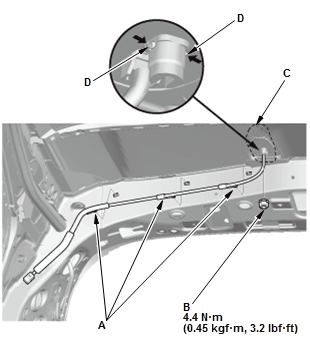

  1. Remove the harness clips (A)
  2. Remove the nut (B)
  3. Remove the roof antenna (C) while pressing the tabs (D).

3. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.
