Honda HR-V: SD Card Module Removal and Installation

Removal & Installation

SRS components are located in this area. Review the SRS component locations - Refer to: SRS Component Location Index (KA/KC), or SRS Component Location Index (KA/KC) and the precautions and procedures before doing repairs or service.

NOTE:

  • When working on electronic components, make sure the work area is clean and dust free.
  • Make sure your hands are clean and free of oils and grease.
  • If the audio-navigation unit (audio unit) is replaced, install the original SD card into the new audio-navigation unit (audio unit).
  • The audio-navigation unit (audio unit) and the SD card module cannot be substituted separately for testing purposes. If you need to substitute a known-good audio-navigation unit (audio unit) for testing, substitute a known-good unit and SD card module at a time.

1. Audio Unit Assembly (Without Navigation) - Remove - Refer to: Audio Unit Removal and Installation (Display Audio Type (7-inch Screen) ), or Audio Unit Removal and Installation (Color Audio Type (5-inch Screen) )

2. Audio-Navigation Unit Assembly (With Navigation) - Remove

3. SD Card - Remove

Audio Visual Systems - Service Information

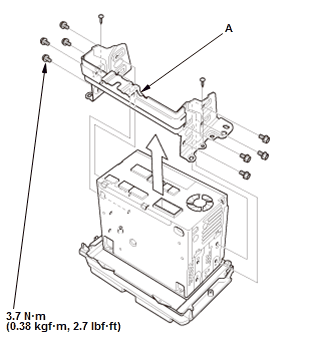

  1. Remove the bracket (A).

Audio Visual Systems - Service Information

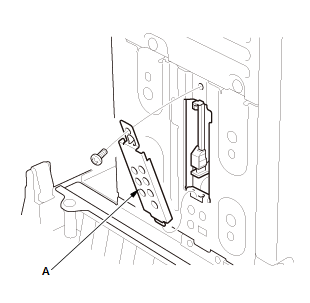

  1. Remove the SD cover (A).

Audio Visual Systems - Service Information

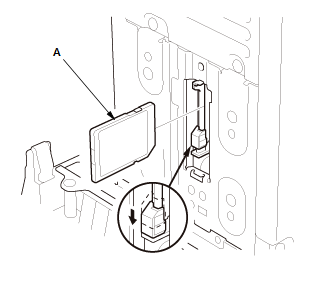

  1. Remove the SD card (A).

4. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.
