Honda HR-V: Speaker Removal, Installation, and Test
Removal & Installation
Door Speaker
1. Door Panel - Remove
- Remove the door panel.
2. Door Speaker - Remove
.png)

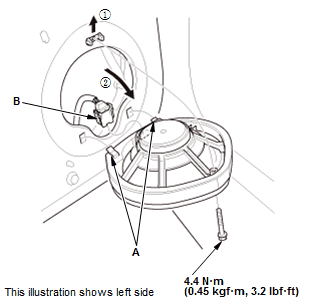

- Remove the bolt, then lift the door speaker straight up to release
the lower clips (A)
- Disconnect the connector (B), then remove the door speaker.
3. All Removed Parts - Install
- Install the parts in the reverse order of removal.
Tweeter
4. Tweeter - Remove
.png)

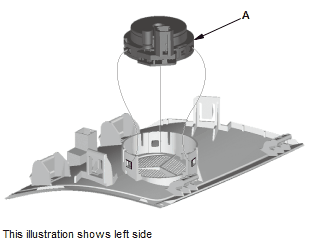

- From the notch (A), carefully pry the tweeter grille (B) out with a
small
screwdriver.
NOTE: Be careful not to damage the tweeter grille and the
dashboard
- Disconnect the connector (C), and remove the tweeter grille.
.png)
- Remove the tweeter (A).
5. All Removed Parts - Install
- Install the parts in the reverse order of removal.
Test
Door Speaker
1. Speaker - Test
.png)

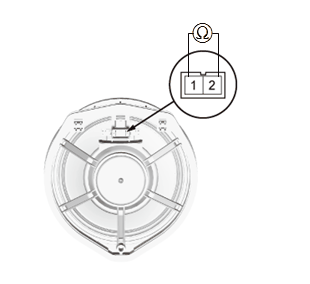

- Measure the resistance between terminals No. 1 and No. 2. There
should be about 4 Ω
- If the resistance is not as specified, replace the door speaker.
Tweeter
2. Tweeter - Test
.png)
- Measure the resistance between terminal No. 1 and the outside terminal
of the
capacitor (A). There should be about 4.0 Ω. Also check the capacitor
condition. If
any problem is found, replace the tweeter
- If the resistance is not as specified, replace the tweeter.
