Inspection
1. Reverse Shift Lever Clearance - Inspect
.png)

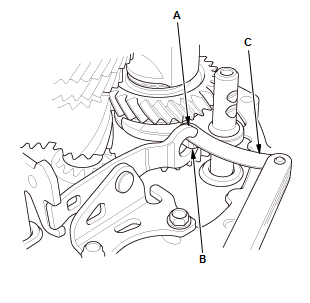

- Measure the clearance between the reverse shift lever (A) and the reverse shift fork (B) with a feeler gauge (C). If the clearance exceeds the service limit, go to step 2.
Standard: 0.40-0.85 mm (0.0157-0.0335 in)
Service Limit: 0.85 mm (0.0335 in)
.png)

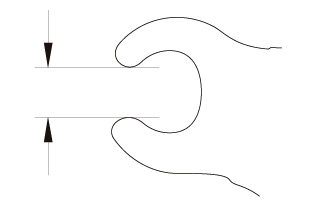

- Measure the width of the reverse shift lever.
- If the width is not within the standard, replace the reverse shift lever.
- If the width is within the standard, replace the reverse shift fork.
Standard: 6.75-7.00 mm (0.2657-0.2756 in)
.png)

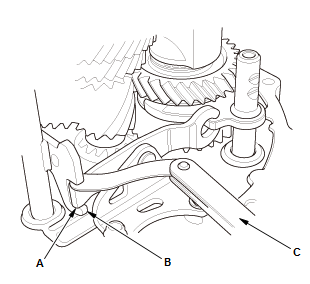

- Measure the clearance between the reverse shift lever (A) and the reverse shift piece (B) with a feeler gauge (C). If the clearance exceeds the service limit, go to step
Standard: 0-0.4 mm (0.00-0.016 in)
Service Limit: 0.4 mm (0.016 in)
.png)

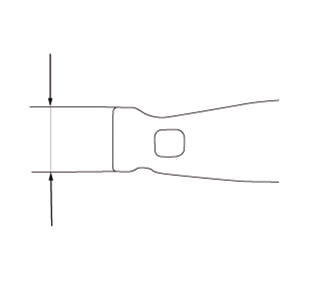

- Measure the width of the reverse shift lever.
- If the width is not within the standard, replace the reverse shift lever.
- If the width is within the standard, replace the reverse shift piece.
Standard: 17.0-17.2 mm (0.669-0.677 in)
