Honda HR-V: Synchro Ring and Gear Inspection (M/T)
Inspection
1. Synchro Ring and Gear - Inspect
.png)

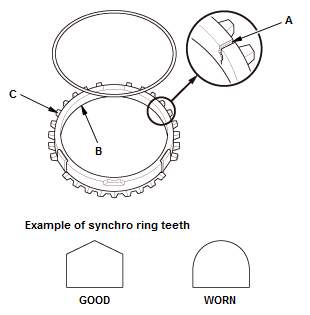

- Inspect the synchro rings for scoring, cracks, and damage (A)
- Inspect the inside of each synchro ring (B) for wear. Inspect the teeth
(C) on each
synchro ring for wear (rounded off).
.png)

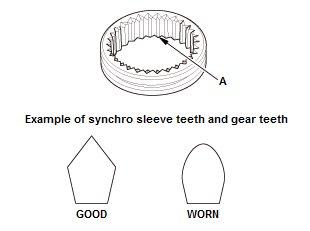

- Inspect the teeth (A) on each synchro sleeve and matching teeth on each
gear for
wear (rounded off).
.png)

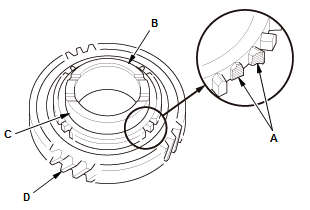

- Inspect the synchro teeth on gear for scoring, cracks, and damage (A)
- Inspect the thrust surface (B) on each gear hub for wear
- Inspect the cone surface (C) on each gear hub for wear and roughness
- Inspect the teeth on all gears (D) for uneven wear, scoring, and cracks
- Coat the cone surface of each gear with MTF, and place its synchro ring
on it.
Rotate the synchro ring, making sure that it does not slip.
.png)

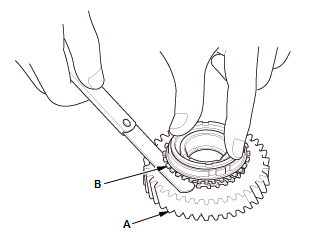

- Measure the clearance between each gear (A) and its synchro ring (B) all
around
the gear. Hold the synchro ring against the gear evenly while measuring the
clearance.
If the clearance is less than the service limit, replace the synchro ring
and gear.

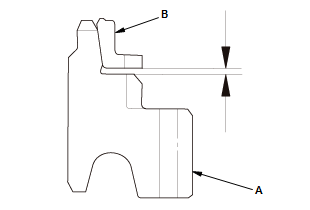

Synchro ring-to-gear clearance
.png)

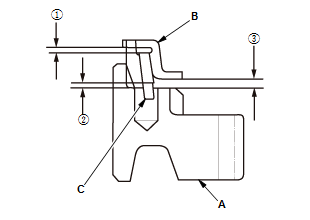

Triple cone synchro-to-gear clearance
.png)
Synchro Ring-to-Gear Clearance
Standard: 0.70-1.49 mm (0.0276-0.0587 in)
Service Limit: 0.70 mm (0.0276 in)
Triple Cone Synchro-to-Gear Clearance Standard:
- Outer Synchro Ring (B) to Synchro Cone (C) 0.70-1.19 mm (0.0276-0.0469
in)
- Synchro Cone (C) to Gear (A) 0.50-1.04 mm (0.0197-0.0409 in)
- Outer Synchro Ring (B) to Gear (A) 0.95-1.68 mm (0.0374-0.0661 in)
Service Limit:
- 0.70 mm (0.0276 in)
- 0.50 mm (0.0197 in)
- 0.95 mm (0.0374 in)
