Honda HR-V: Making a Call

You can make calls by inputting any phone number, or by using the imported phonebook, call history, speed dial entries, or redial.

Bluetooth HandsFreeLink


Any voice-tagged speed dial entry can be dialed by voice from any screen.

Press the button and follow the
prompts.

The maximum range between your phone and vehicles is 30 feet (10 meters).

Once a call is connected, you can hear the voice of the person you are calling through the audio speakers.

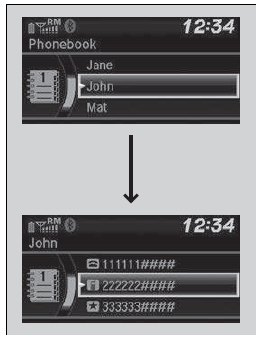

■ To make a call using the imported phonebook

When your phone is paired, the contents of its phonebook are automatically imported to HFL.

1. Press the button or the
button.


2. Rotate to select Phonebook,
then press .


3. The phonebook is stored alphabetically.

Rotate to select the initial,
then press .


4. Rotate to select a name, then
press .


5. Rotate to select a number,
then press .


  • Dialing starts automatically

Bluetooth HandsFreeLink


This function is disabled while the vehicle is moving.

However, you can call a stored voice-tagged speed dial number using voice commands.

■ To make a call using a phone number

1. Press the button or the
button.


2. Rotate to select Dial, then
press .


3. Rotate to select a number,
then press .


4. Rotate to select
, then press
.


  • Dialing starts automatically.

Bluetooth HandsFreeLink


This function is disabled while the vehicle is moving.

However, you can call a stored voice-tagged speed dial number using voice commands.

■ To make a call using redial

1. Press the button or the
button.


2. Rotate to select Redial, then
press .


  • Dialing starts automatically.

Bluetooth HandsFreeLink


Press and hold the
button to redial the last number dialed in your phone's call history.

■ To make a call using the call history

Call history is stored by Dialed Calls, Received Calls, and Missed Calls.

1. Press the button or the
button.


2. Rotate to select Call History,
then press .


3. Rotate to select Dialed Calls,
Received Calls, or Missed Calls, then press .


4. Rotate to select a number,
then press .


  • Dialing starts automatically.

Bluetooth HandsFreeLink


The call history appears only when a phone is connected to HFL, and displays the last 20 dialed, received, or missed calls.

■ To make a call using a speed dial entry

1. Press the button or the
button.


2. Rotate to select Speed Dial,
then press .


3. Rotate to select a number,
then press .


  • Dialing starts automatically.

Bluetooth HandsFreeLink


On the Phone screen, the first six speed dials on the list can be directly selected by pressing the corresponding audio preset buttons (1-6).

Select Others to view another paired phone's speed dial list.

When a voice tag is stored, press the button and
call the number using voice commands.

Any voice-tagged speed dial entry can be dialed by voice from any screen. Press the
button and follow the prompts.

■Receiving a Call

When there is an incoming call, an audible notification sounds and the Incoming Call screen appears.

Press the button to answer the
call.

Press the button to decline or
end the call.

Bluetooth HandsFreeLink


Call Waiting

Press the button to
put the current call on hold to answer the incoming call.

Press the button again to
return to the current call.

Select Ignore to ignore the incoming call if you do not want to answer it.

Press the button if you
want to hang up the current call.

You can select the icons on the audio/information screen instead of the and
buttons. Rotate
to select the icon, then press
.

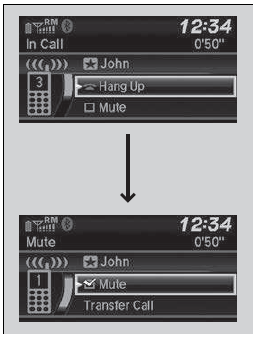

■Options During a Call

The following options are available during a call.

Swap Call: Put the current call on hold to answer the incoming call.

Mute: Mute your voice.

Transfer Call: Transfer a call from HFL to your phone.

Dial Tones: Send numbers during a call. This is useful when you call a menu-driven phone system.

1. To view the available options, press the
button.

2. Rotate to select the option,
then press .


  • The check box is checked when Mute is selected. Select Mute again to turn it off.

Bluetooth HandsFreeLink


Dial Tones: Available on some phones.
