Honda HR-V: HFL Menus

The ignition switch must be in ACCESSORY (I) or ON (II)*1 to use HFL.

To use HFL, you must first pair your Bluetoothcompatible mobile phone to the system while the vehicle is parked.

Some functions are limited while driving. A message appears on the screen when the vehicle is moving and the operation is canceled.

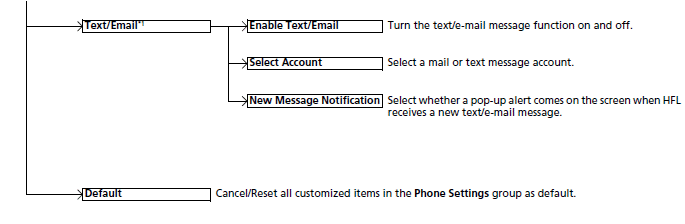

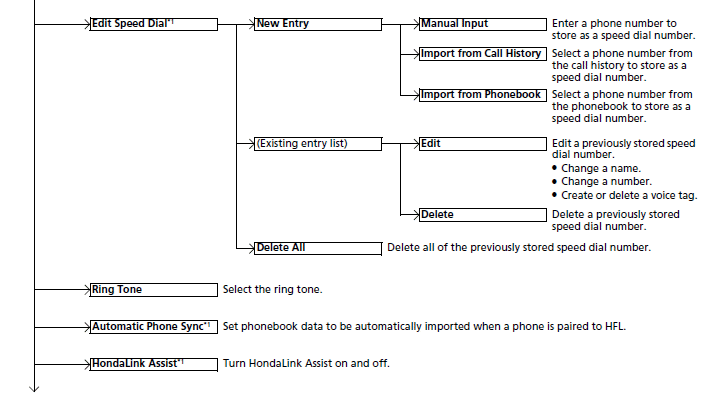

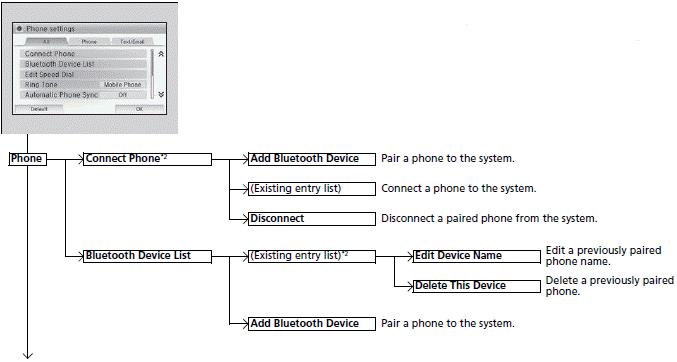

â–  Phone settings screen

1. Select HOME.

2. Select Settings.

3. Select Phone Settings.

Bluetooth HandsFreeLink


*1: Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.

*2: Appears only when a phone is connected to HFL.

Bluetooth HandsFreeLink


Bluetooth HandsFreeLink


*1: Appears only when a phone is connected to HFL.

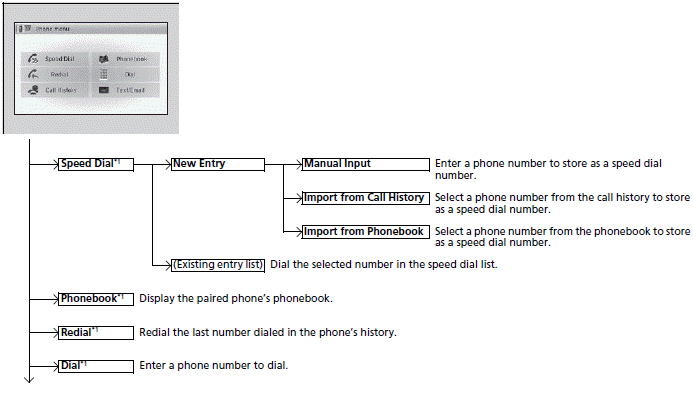

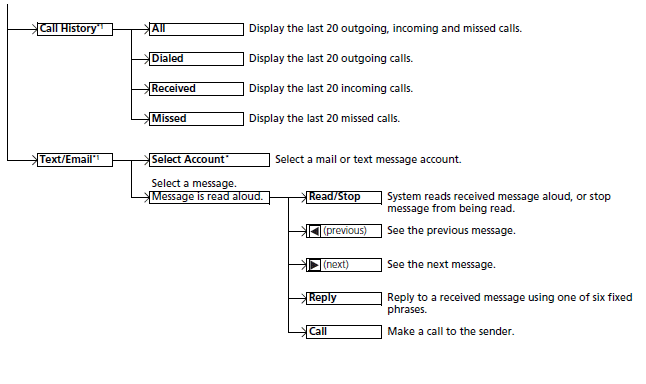

â–  Phone menu screen

1. Press , or select HOME, then
select Phone.

2. Press (MENU) on the steering
wheel, or select MENU.

Bluetooth HandsFreeLink


Bluetooth HandsFreeLink


*1: Appears only when a phone is connected to HFL.
