Honda HR-V: SRS Unit Removal and Installation

Removal and Installation

SRS components are located in this area. Review the SRS component locations - Refer to: SRS Component Location Index (KA/KC), or SRS Component Location Index (KA/KC) and the precautions and procedures before doing repairs or service.

1. 12 Volt Battery Terminal - Disconnect

NOTE: Wait at least 3 minutes before starting work.

2. Center Console - Remove

3. Front Console Panel - Remove

4. SRS Unit - Remove

Supplemental Restraint System - Service Information

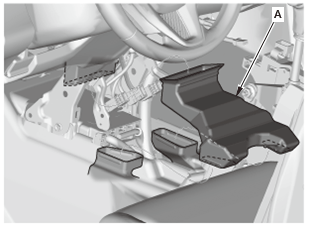

  1. Remove the duct (A).

Supplemental Restraint System - Service Information

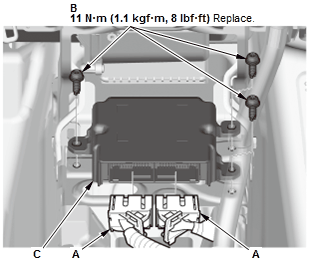

Fig. 7: SRS Unit With Torque Specifications

  1. Disconnect the connectors (A).

    NOTE: The SRS unit connectors have lever locks. Release the locks before disconnecting the connectors.

  2. Remove the bolts (B).2
  3. Remove the SRS unit (C).

5. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.

    NOTE:

    • During installation, install the new bolts to the specified torque.
    • Before installing the center console, make sure the SRS indicator works normally.
    • Make sure the SRS unit has the latest software. If it does not have the latest, update the software in the SRS unit.

6. SRS Operation - Confirm

  1. Do the 12 volt battery terminal reconnection procedure, turn the vehicle to the ON mode, and check that the SRS indicator comes on for about 6 seconds and then goes off.
