Honda HR-V: Mainshaft Assembly Clearance Inspection (M/T)

Inspection

1. Mainshaft Assembly Clearance - Inspect

Manual Transaxle - Testing & Troubleshooting

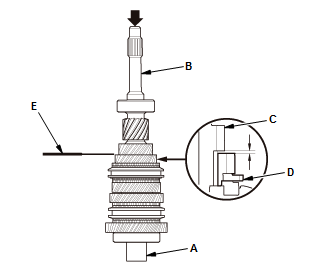

  1. Support the bearing inner race with an appropriate sized socket (A), and push down on the mainshaft (B)
  2. Measure the clearance between 2nd gear (C) and 3rd gear (D) with a feeler gauge (E).
    • If the clearance exceeds the service limit, go to step 3.
    • If the clearance is within the service limit, go to step 4.

Standard: 0.06-0.16 mm (0.0024-0.0063 in)

Service Limit: 0.16 mm (0.0063 in)

Manual Transaxle - Testing & Troubleshooting

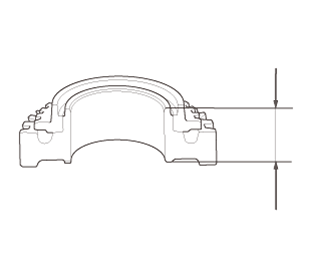

  1. Measure the thickness of 3rd gear.
    • If the thickness is less than the service limit, replace 3rd gear.
    • If the thickness is within the service limit, replace the 3rd/4th synchro hub and the 3rd/4th synchro sleeve as a set.

Standard: 23.92-23.97 mm (0.9417-0.9437 in)

Service Limit: 23.92 mm (0.9417 in)

Manual Transaxle - Testing & Troubleshooting

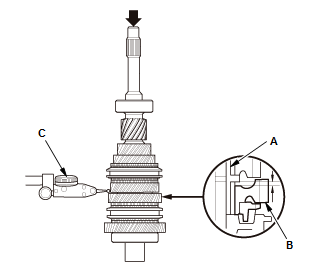

  1. Measure the clearance between 4th gear (A) and the 4th/5th gear distance collar (B) with a dial indicator (C).
    • If the clearance exceeds the service limit, go to step 5.
    • If the clearance is within the service limit, go to step 7.

Standard: 0.06-0.16 mm (0.0024-0.0063 in)

Service Limit: 0.16 mm (0.0063 in)

Manual Transaxle - Testing & Troubleshooting

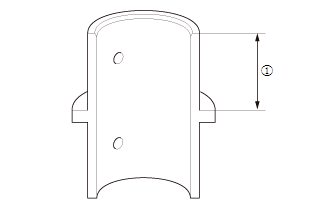

  1. Measure the length of the 4th/5th gear distance collar as shown.
    • If the length is not within the standard, replace the 4th/5th gear distance collar.
    • If the length is within the standard, go to step 6.

Standard: 22.53-22.58 mm (0.8870-0.8890 in)

Manual Transaxle - Testing & Troubleshooting

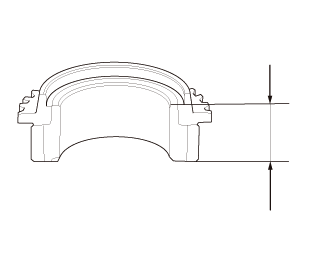

  1. Measure the thickness of 4th gear.
    • If the thickness is less than the service limit, replace 4th gear.
    • If the thickness is within the service limit, replace the 3rd/4th synchro hub and the 3rd/4th synchro sleeve as a set.

Standard: 22.42-22.47 mm (0.8827-0.8846 in)

Service Limit: 22.42 mm (0.8827 in)

Manual Transaxle - Testing & Troubleshooting

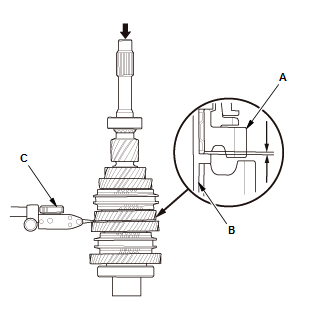

  1. Measure the clearance between the 4th/5th gear distance collar (A) and 5th gear (B) with a dial indicator (C).
    • If the clearance exceeds the service limit, go to step 8.
    • If the clearance is within the service limit, go to step 10.

Standard: 0.06-0.16 mm (0.0024-0.0063 in)

Service Limit: 0.16 mm (0.0063 in)

Manual Transaxle - Testing & Troubleshooting

  1. Measure the length of the 4th/5th gear distance collar as shown.
    • If the length is not within the standard, replace the 4th/5th gear distance collar.
    • If the length is within the standard, go to step 9.

Standard: 22.53-22.58 mm (0.8870-0.8890 in)

Manual Transaxle - Testing & Troubleshooting

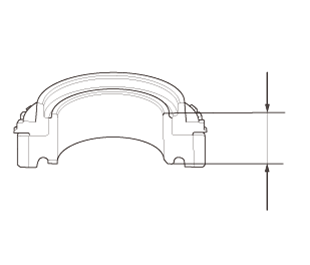

  1. Measure the thickness of 5th gear.
    • If the thickness is less than the service limit, replace 5th gear.
    • If the thickness is within the service limit, replace the 5th/6th synchro hub and the 5th/6th synchro sleeve as a set.

Standard: 22.42-22.47 mm (0.8827-0.8846 in)

Service Limit: 22.42 mm (0.8827 in)

Manual Transaxle - Testing & Troubleshooting

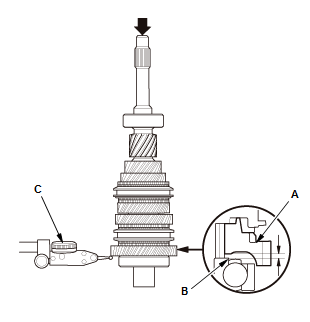

  1. Measure the clearance between 6th gear (A) and the angular ball bearing inner race (B) with a dial indicator (C). If the clearance exceeds the service limit, go to step

Standard: 0.06-0.16 mm (0.0024-0.0063 in)

Service Limit: 0.16 mm (0.0063 in)

Manual Transaxle - Testing & Troubleshooting

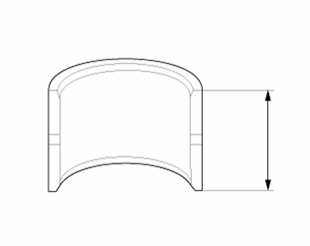

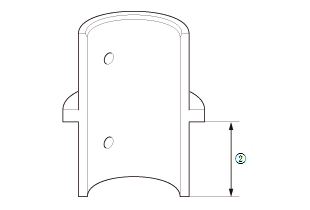

  1. Measure the length of the 6th gear distance collar.
    • If the length is not within the standard, replace the 6th gear distance collar.
    • If the length is within the standard, go to step 12.

Standard: 27.03-27.08 mm (1.0642-1.0661 in)

Manual Transaxle - Testing & Troubleshooting

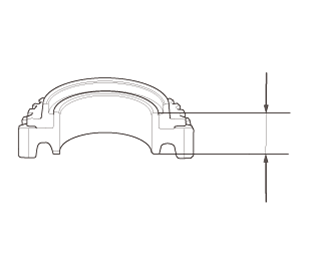

  1. Measure the thickness of 6th gear.
    • If the thickness is less than the service limit, replace 6th gear.
    • If the thickness is within the service limit, replace the 5th/6th synchro hub and the 5th/6th synchro sleeve as a set.

Standard: 26.92-26.97 mm (1.0598-1.0618 in)

Service Limit: 26.92 mm (1.0598 in)
