Honda HR-V: Interior Trim
CENTER CONSOLE DISASSEMBLY AND REASSEMBLY
Disassembly and Reassembly
1. Center Console - Remove
2. Center Console Cup Holder - Remove
.png)

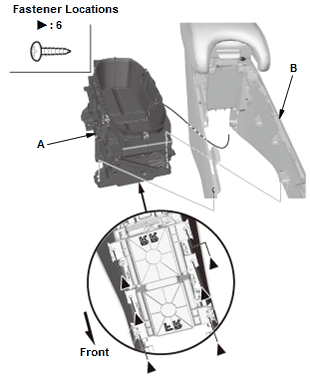

- Remove the screws, then remove the center console cup holder (A)
from the center console (B).
3. Console Box - Remove
.png)

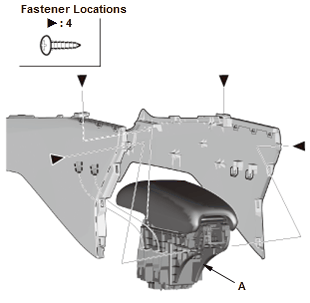

- Remove the screws, then remove the console box
(A).
4. All Removed Parts - Reassemble
- Reassemble the parts in the reverse order of removal.
COMPONENT LOCATION INDEX

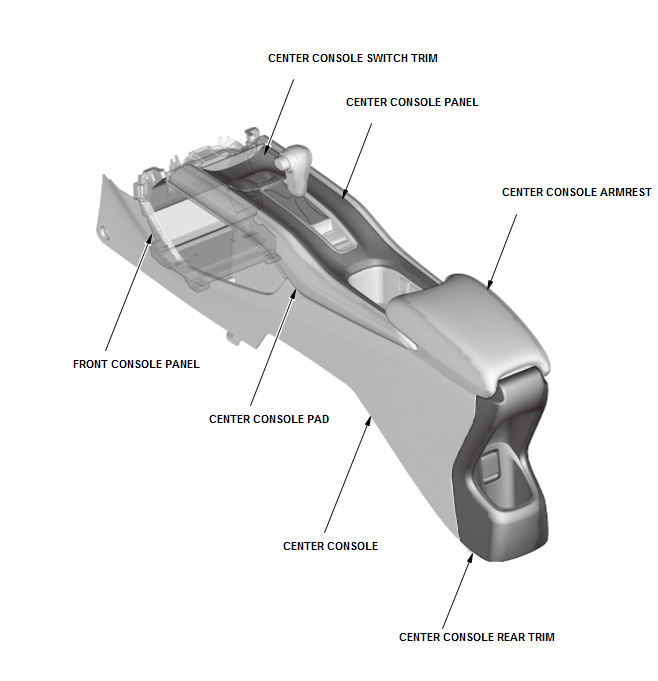

CONSOLES COMPONENT LOCATION INDEX
.png)

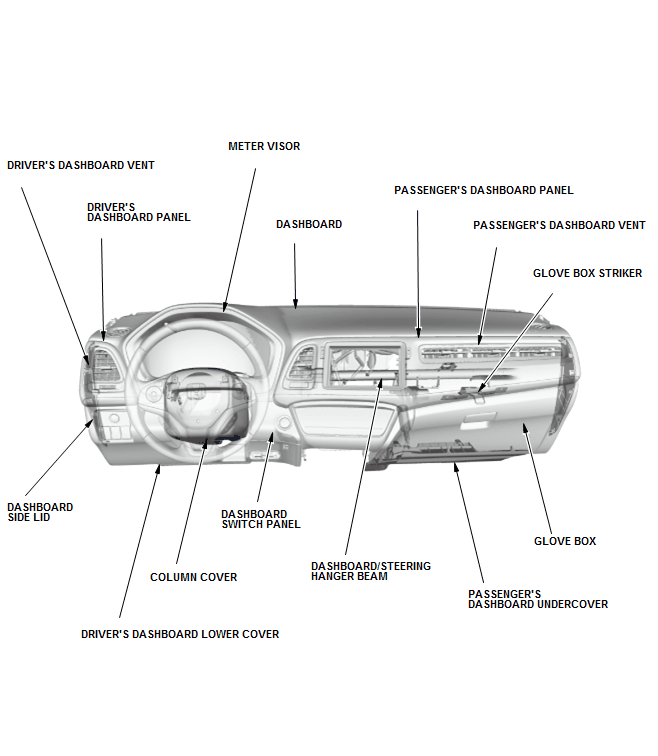

DASHBOARD COMPONENT LOCATION INDEX
.png)

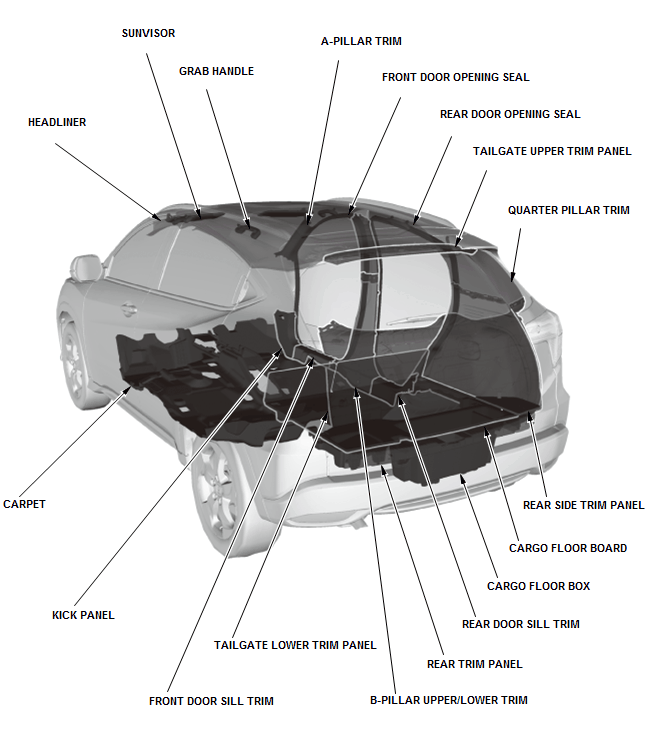

INTERIOR TRIM COMPONENT LOCATION INDEX
.png)
