Honda HR-V: Center Console Armrest Removal and Installation

Honda HR-V (2015-2021) Service Manual / Accessories & Equipment / Interior Trim - Service Information / Center Console Armrest Removal and Installation

Removal & Installation

1. Center Console Rear Trim - Remove

2. Center Console Armrest - Remove

Interior Trim - Service Information

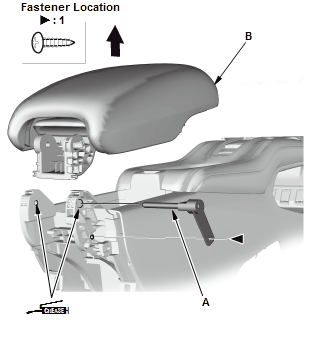

  1. Remove the screw, then remove the hinge pin (A)
  2. Remove the center console armrest (B).

3. All Removed Parts -Install

  1. Install the parts in the reverse order of removal.

CENTER CONSOLE PAD REMOVAL AND INSTALLATION

Removal & Installation

1. Center Console Panel - Remove

2. Center Console Pad - Remove

Interior Trim - Service Information

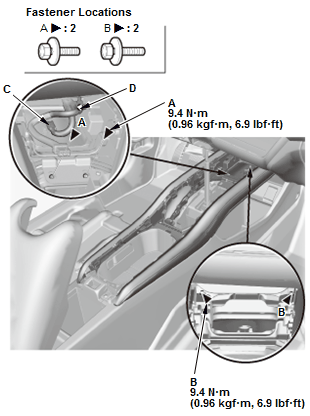

  1. Remove the bolts (A) and loosen the bolts (B).

    NOTE : When loosening, be careful not to drop the bolts

  2. Disconnect the connector (C)
  3. Remove the harness clip (D).

Interior Trim - Service Information

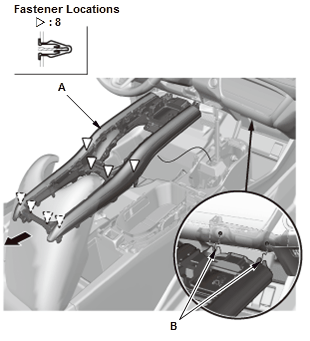

  1. Remove the center console pad (A).

    NOTE : Disengage the brackets (B) from the bolts.

Interior Trim - Service Information

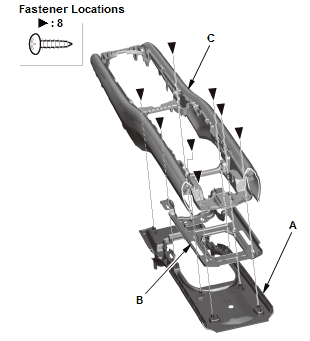

  1. If necessary, remove the lower panel (A) and pad bracket (B) from the center console pad (C).

Interior Trim - Service Information

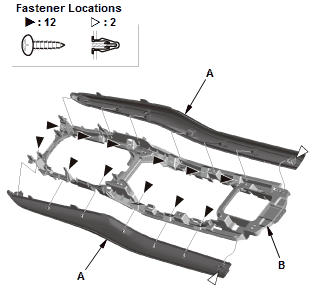

  1. If necessary, remove the pads (A) from the center console pad panel (B).

3. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.
