Honda HR-V: Dashboard Side Lid Removal and Installation
Removal & Installation
NOTE : SRS components are located in this area. Review the SRS component locations - Refer to: SRS Component Location Index (KA/KC), or SRS Component Location Index (KA/KC) and the precautions and procedures before doing repairs or service.
Driver's Side
1. Dashboard Side Lid - Remove
.png)

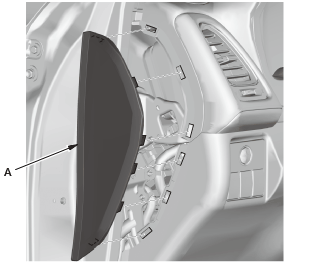

- Remove the driver's dashboard side lid (A).
2. All Removed Parts - Install
- Install the parts in the reverse order of removal.
Passenger's Side
3. Dashboard Side Lid - Remove
Without front passenger's airbag ON/OFF switch
.png)
With front passenger's airbag ON/OFF switch
.png)

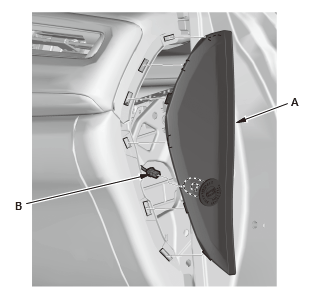

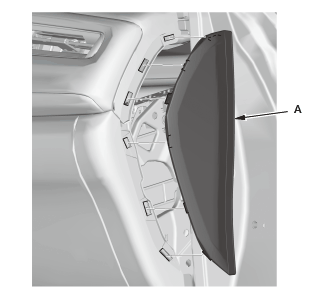

- Remove the passenger's dashboard side lid (A)
- Disconnect the connector (B). (with front passenger's airbag ON/OFF switch)
4. All Removed Parts - Install
- Install the parts in the reverse order of removal.
DASHBOARD SWITCH PANEL REMOVAL AND INSTALLATION
Removal & Installation
1. Dashboard Switch Panel - Remove
.png)
- Adjust the steering column to the full tilt up position, and to the full telescopic out position

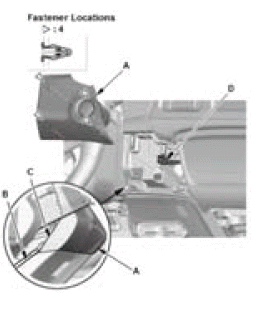

- Remove the dashboard switch panel (A).
NOTE : Insert a small flat-tip screwdriver (B) between the dashboard switch panel and dashboard panel (C), remove the dashboard switch panel as shown
- Disconnect the connector (D). (with one push start switch)
2. All Removed Parts - Install
- Install the parts in the reverse order of removal.
