Honda HR-V: Driver's Dashboard Lower Cover Removal and Installation

Honda HR-V (2015-2021) Service Manual / Accessories & Equipment / Interior Trim - Service Information / Driver's Dashboard Lower Cover Removal and Installation

Removal & Installation

1. Dashboard Side Lid - Remove (Driver's Side)

2. Dashboard Switch Panel - Remove

3. Driver's Dashboard Lower Cover - Remove

Interior Trim - Service Information

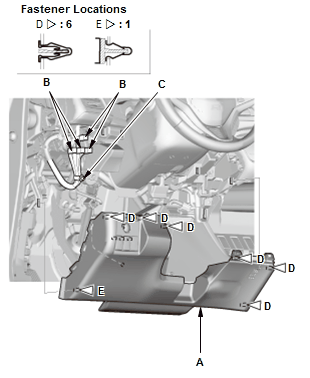

  1. Remove the driver's dashboard lower cover (A)
  2. Disconnect the connectors (B). (for some models)
  3. Remove the harness clip (C).

Interior Trim - Service Information

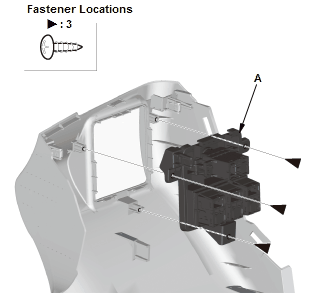

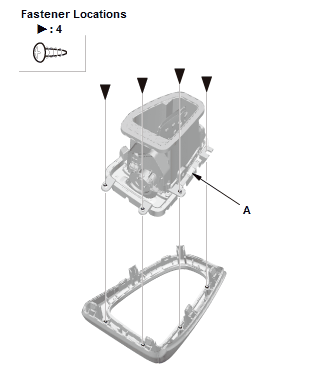

  1. If necessary, remove the switch panel (A).

4. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.

DRIVER'S DASHBOARD PANEL REMOVAL AND INSTALLATION

Removal & Installation

1. Driver's Dashboard Panel - Remove

Interior Trim - Service Information

2. Driver's Dashboard Vent - Remove

Interior Trim - Service Information

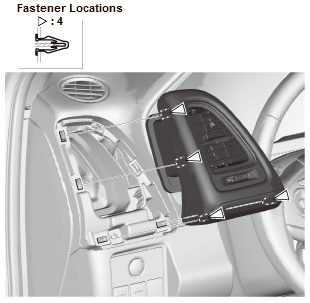

  1. If necessary, remove the driver's dashboard vent (A).

3. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.
