Honda HR-V: Glove Box Removal and Installation

Honda HR-V (2015-2021) Service Manual / Accessories & Equipment / Interior Trim - Service Information / Glove Box Removal and Installation

Removal & Installation

1. Dashboard Side Lid - Remove (Passenger's Side)

2. Passenger's Dashboard Undercover - Remove

3. Glove Box - Remove

Interior Trim - Service Information

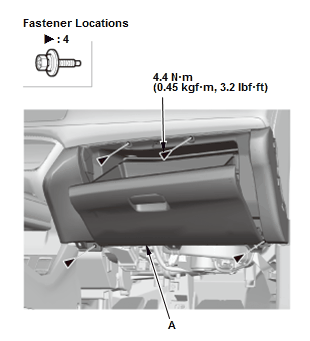

  1. Open the glove box (A), then remove the bolts.

Interior Trim - Service Information

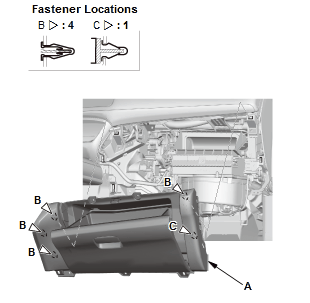

  1. Remove the glove box (A).

4. Glove Box Striker - Remove

Interior Trim - Service Information

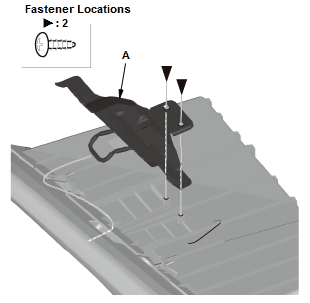

  1. If necessary, remove the glove box striker (A).

5. Glove Box Damper - Remove

Interior Trim - Service Information

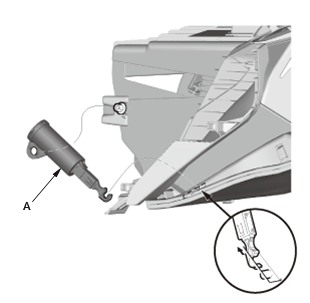

  1. If necessary, remove the glove box damper (A).

Interior Trim - Service Information

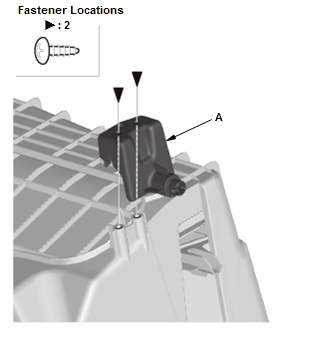

  1. If necessary, remove the glove box damper bracket (A).

6. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.
