Honda HR-V: CVT Road Test (CVT)
Test
1. HDS - Connect
2. Engine - Warm Up
- Start the engine, and warm it up to normal operating temperature (the
radiator fan
comes on twice).
3. CVT - Road Test
- Park the vehicle on the level ground.
- Apply the parking brake, and block all four wheels
- Start the engine
- Shift the transmission to D position/mode while pressing the brake
pedal. Press the accelerator pedal, and release it suddenly. The engine
should not stall
- Repeat step 4 in all positions / modes
- Prepare the HDS and the MVCI to take a SNAPSHOT (refer to the HDS user's
guide for more details if needed):
- Set the Trigger Type to Parameter.
- Adjust the Parameter setting to APP Sensor A above 1.20 V.
- Set the Record Time to 60 seconds.
- Set the Trigger Point to (Negative) - 30 seconds.
- Find a suitable level road
- When you are ready to do the test, press OK on the HDS
- Accelerate quickly until APP Sensor A reads 1.21 V. Maintain a steady
throttle at 1.21 V until the vehicle reaches a reasonable speed, then slow
the vehicle, and come to a stop
- Save the snapshot if the entire event was recorded, or increase the
recording time setting as necessary, and repeat step 9
- Adjust the parameter setting to 2.30 V
- Test-drive the vehicle again. Accelerate quickly until APP Sensor A
reads 2.31 V. Maintain a steady throttle until the vehicle reaches a
reasonable speed, then slow the vehicle, and come to
a stop
- Save the snapshot if the entire event was recorded, or increase the
recording time setting as necessary, and repeat step 12
- Accelerate quickly until the accelerator pedal is to the floor. Maintain
a steady pedal until the vehicle reaches to reasonable speed, then slow to a
stop, and save the snapshot.
- Review each snapshot individually, and compare APP Sensor A (V), the
Vehicle Speed, and the Engine Speed to the following table:

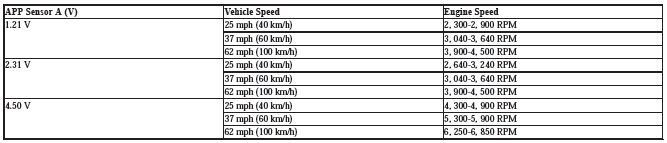

D Position/Mode:
.png)

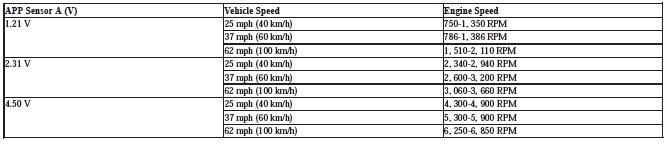

S Position/Mode:
.png)
.png)
L Position/Mode: (Without Paddle Shifter)
.png)

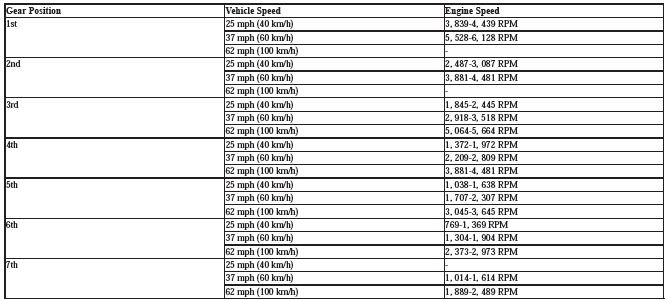

Sequential Sportshift Mode: (With Paddle Shifter)
.png)
- Park the vehicle on an upward slope (about 16 degrees), apply the
parking brake, and shift the transmission to P position/mode. Release the
brake; the vehicle should not move.
NOTE: Always use the parking brake to hold the vehicle when stopped on an
incline. Depending on the grade of the incline, the vehicle could roll if the
brake is released.
