Honda HR-V: Wheel Bolt Removal and Installation
Special Tools Required

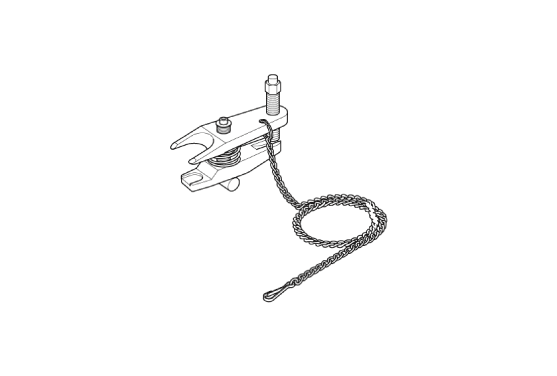

Ball Joint Remover, 28 mm 07MAC-SL00202
.png)
Removal

- Do not use a hammer or impact tools (pneumatic or electric).
- Be careful not to damage the threads of the wheel bolts.
Front
1. Vehicle - Lift
2. Front Wheel - Remove
3. Front Hub - Remove
4. Wheel Bolt - Remove
.png)

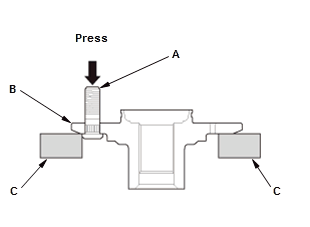

- Separate the wheel bolt (A) from the hub (B) using a hydraulic press.
Support the hub with hydraulic press attachments (C) or
equivalent tools.
Rear
5. Vehicle - Lift
6. Rear Wheel - Remove
7. Rear Brake Disc - Remove
8. Wheel Bolt - Remove
.png)
- Separate the wheel bolt (A) from the hub (B).
NOTE: If the angle of the remover against the wheel bolt is not vertical,
readjust the ball
joint remover by turning the head (C) of the adjusting bolt (D).
Installation

- Do not use a hammer or impact tools (pneumatic or electric).
- Be careful not to damage the threads of the wheel bolts.
Front
1. Wheel Bolt - Install
.png)
- Insert a new wheel bolt (A) into the hub (B) while aligning the splined
surfaces (C) on the hub hole with the wheel bolt.
NOTE:
- Degrease the area around the wheel bolt.
- Make sure the wheel bolt is installed vertically to the hub disc
surface.
- Before installing the new wheel bolt, clean the mating surfaces on
the bolt and the hub.
- Install the wheel bolt using a hydraulic press until the wheel bolt
shoulder is fully seated. Support the hub with hydraulic press
attachments (D) or equivalent tools.
2. Front Hub - Install
3. Front Wheel - Install
NOTE: If you cannot tighten the wheel nut to the specified torque when
installing the wheel, replace the front hub.
Rear
4. Wheel Bolt - Install
.png)
- Insert a new wheel bolt (A) into the hub (B) while aligning the splined
surfaces (C) on the hub hole with the wheel bolt.
NOTE:
- Before installing the new wheel bolt, clean the mating surfaces on
the bolt and the hub.
- Degrease the area around the wheel bolt and the threaded section of
the nut.
- Adjust the measurement (D) with the washers (P/N 94101-12800 or
equivalent) (E)
- Install a nut (P/N 90304-SC2-000 or equivalent) (F) hand-tight.
NOTE :
- Make sure the wheel bolt is installed vertically to the hub disc
surface.
- Do not install the nut and the washers that have been used as tools
on a vehicle.
- Tighten the nut.
NOTE:
- Do not exceed the maximum torque limit.
- Make sure there is no gap (G) between the bolt and the hub.
Limited torque: 108 N.m (11.0 kgf.m, 80 lbf.ft) max.
NOTE: If you cannot tighten the wheel nut to the specified torque when
installing the wheel,
replace the rear hub bearing unit as an assembly - Refer to: Rear Hub
Bearing Unit Removal and Installation (2WD), or Rear Hub Bearing Unit
Removal and Installation (AWD).
5. Rear Brake Disc - Install
6. Rear Wheel - Install
WHEEL REMOVAL AND INSTALLATION
Removal & Installation
1. Vehicle - Lift
2. Wheel - Remove
.png)

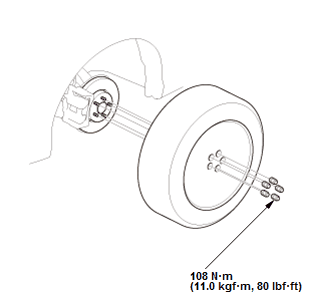

Fig. 32: Wheel Mounting Bolts Torque Specifications
3. All Removed Parts - Install
- Install the wheel in the reverse order of removal.
NOTE: Before installing the wheel, clean the mating surfaces between the
brake disc and the inside of the wheel.
