Honda HR-V: Symptom Troubleshooting

BOTH THE RADIATOR FAN AND THE A/C CONDENSER FAN DO NOT RUN AT LOW SPEED

Diagnostic Procedure

1. Radiator and A/C Condenser Fan Low Speed Circuit Troubleshooting

Also check for

Check the connectors are properly connected and the terminals are making good contact

COOLING FAN CONTROLS SYMPTOM TROUBLESHOOTING INDEX

Engine Cooling System - Testing & Troubleshooting

Engine Cooling System - Testing & Troubleshooting

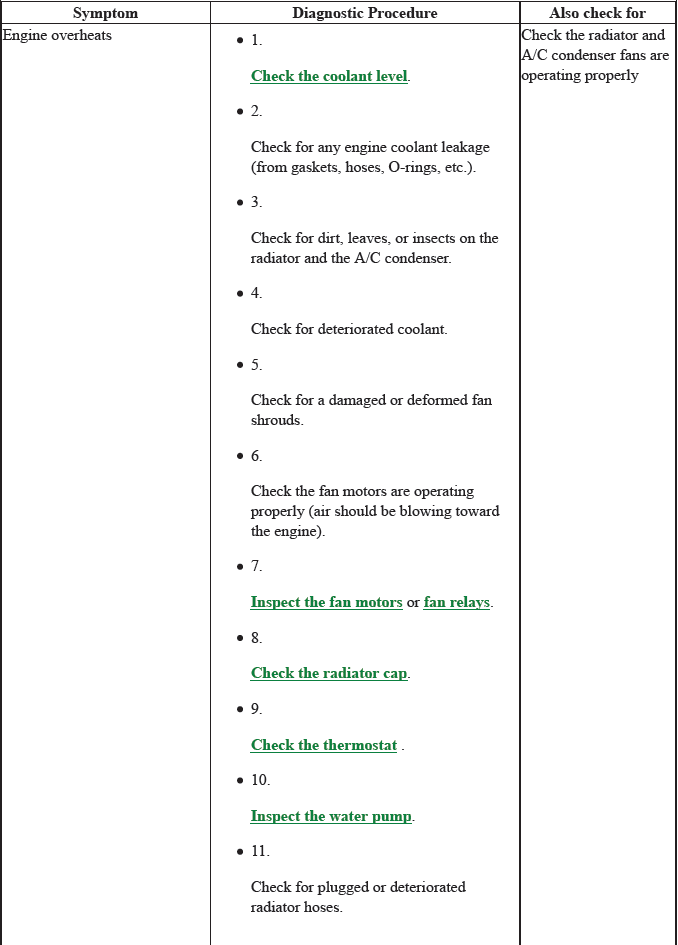

ENGINE OVERHEATS

Diagnostic Procedure

1. Coolant Check

2. Check for any engine coolant leakage (from gaskets, hoses, O-rings, etc.).

3. Check for dirt, leaves, or insects on the radiator and the A/C condenser.

4. Check for deteriorated coolant.

5. Check for a damaged or deformed fan shrouds.

6. Check the fan motors are operating properly (air should be blowing toward the engine).

7. Radiator and A/C Condenser Fan Motor Test

8. Radiator Cap Test

9. Thermostat Removal, Installation, And Test

10. Water Pump Inspection

11. Check for plugged or deteriorated radiator hoses.

12. Check for a plugged heater core or hoses.

13. Check for a damaged cylinder head gasket.

Also check for

Check the radiator and A/C condenser fans are operating properly

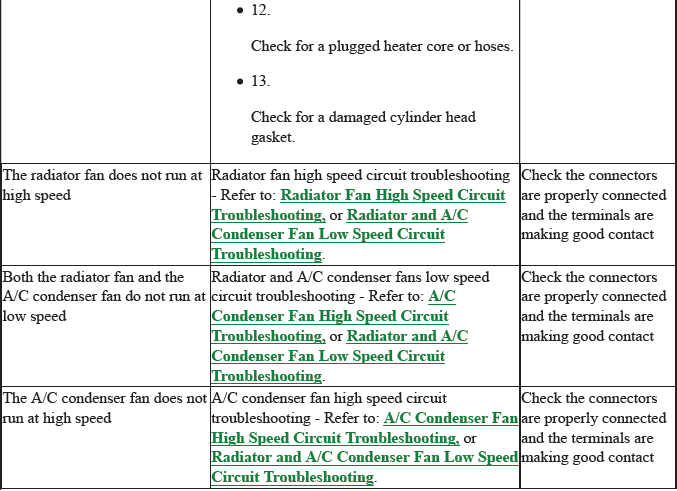

THE A/C CONDENSER FAN DOES NOT RUN AT HIGH SPEED

Diagnostic Procedure

The A/C condenser fan does not run at high speed

Also check for

Check the connectors are properly connected and the terminals are making good contact

THE RADIATOR FAN DOES NOT RUN AT HIGH SPEED

Diagnostic Procedure

Radiator Fan High Speed Circuit Troubleshooting

Also check for

Check the connectors are properly connected and the terminals are making good contact

CIRCUIT DIAGRAM

COOLING FAN CONTROLS CIRCUIT DIAGRAM

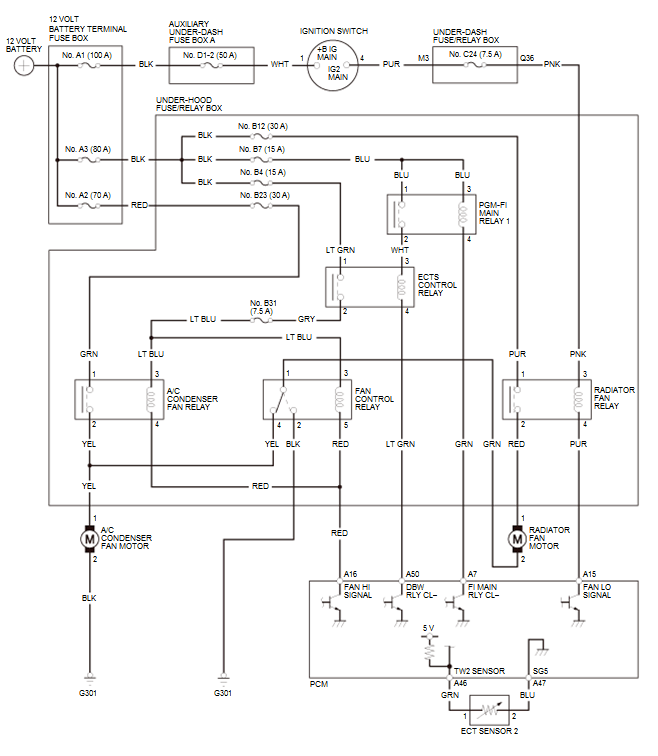

Without Keyless Access System

Engine Cooling System - Testing & Troubleshooting

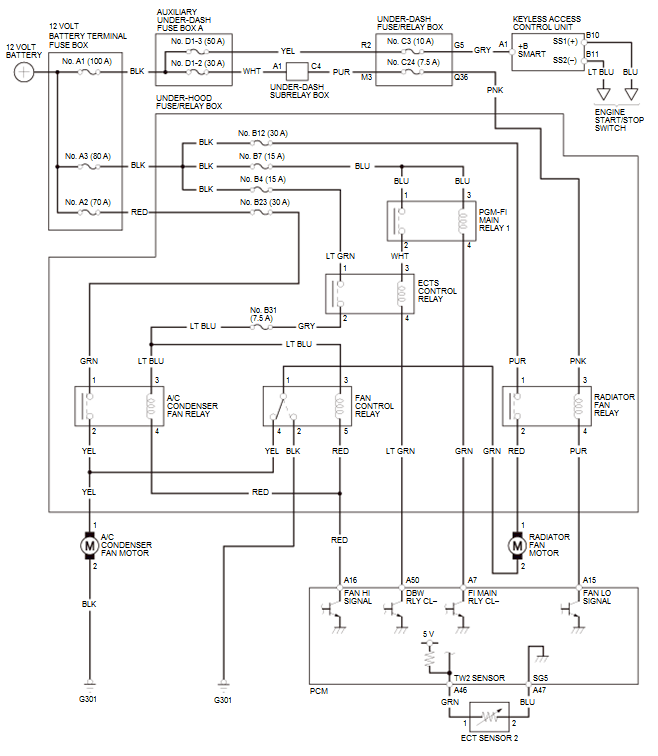

With Keyless Access System

Engine Cooling System - Testing & Troubleshooting
