Honda HR-V: Drive Plate Removal and Installation (CVT)
Removal & Installation
1. Transmission Assembly - Remove
2. Drive Plate Assembly - Remove

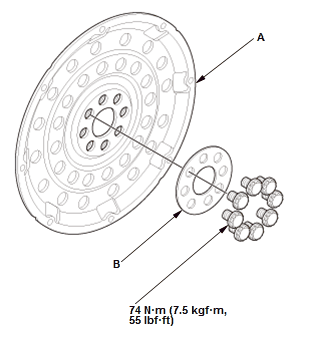

Fig. 10: Drive Plate Bolt With Torque Specifications
- Remove the drive plate (A) with the washer (B).
3. All Removed Parts - Install
- Install the parts in the reverse order of removal.
NOTE: Install the drive plate and the washer, and
tighten the bolts in a crisscross pattern in at least two steps.
ECT SENSOR 1 REMOVAL AND INSTALLATION
Removal & Installation
1. Engine Coolant - Drain

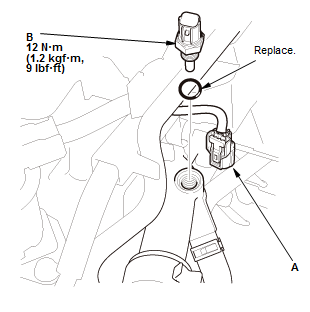

2. ECT Sensor 1 - Remove
- Disconnect the connector (A)
- Remove ECT sensor 1 (B).
3. All Removed Parts - Install
- Install the parts in the reverse order of removal with a new O-ring.NOTE:
Refill the radiator with engine coolant.
ECT SENSOR 2 REMOVAL AND INSTALLATION
Removal & Installation
1. Engine Undercover (2WD) - Remove
2. Engine Coolant - Drain

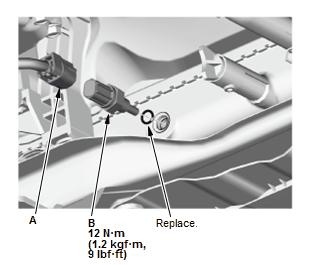

3. ECT Sensor 2 - Remove
- Disconnect the connector (A)
- Remove ECT sensor 2 (B).
4. All Removed Parts - Install
- Install the parts in the reverse order of removal with a new O-ring.
NOTE:
Refill the radiator with engine coolant.
EGR VALVE AND EGR PIPE REMOVAL AND INSTALLATION
Removal & Installation
1. EGR Pipe - Remove

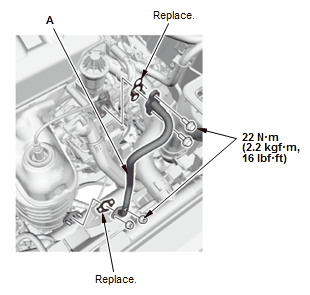

Fig. 11: EGR Pipe With Torque Specification
- Remove the EGR pipe (A).
2. EGR Valve - Remove

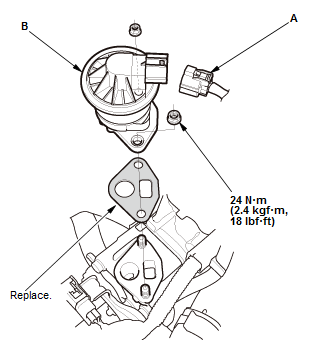

Fig. 12: EGR Valve With Torque Specification
- Disconnect the connector (A).
- Remove the EGR valve (B).
3. All Removed Parts - Install
- Install the parts in the reverse order of removal with a new gasket.
