Honda HR-V: Shift Cable Removal and Installation (CVT)

Removal

SRS components are located in this area. Review the SRS component locations - Refer to: SRS Component Location Index (KA/KC), or SRS Component Location Index (KA/KC) and the precautions and procedures before doing repair or service.

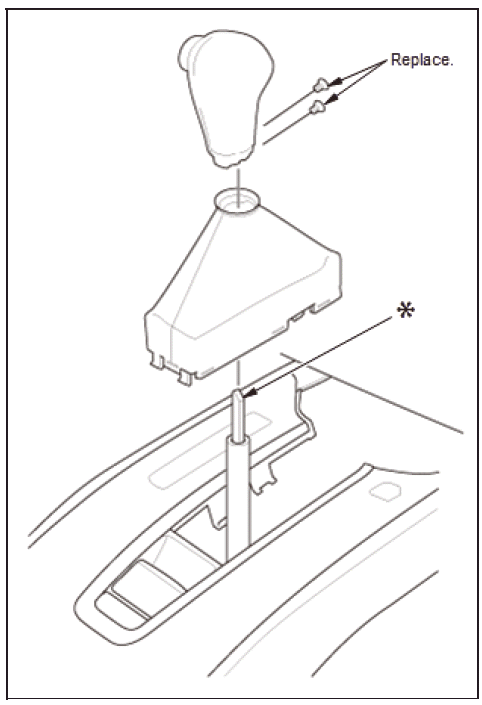

1. Shift Lever Knob / Shift Lever Boots - Remove

Continuously Variable Transmission (CVT) - Service Information

NOTE: Do not wipe off the special grease applied to the area of the shift lever marked with an asterisk (*).

2. Center Console - Remove

3. Shift Cable (Shift Lever Side) - Remove

Continuously Variable Transmission (CVT) - Service Information

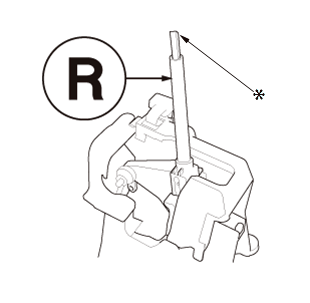

  1. Shift the transmission to R position/mode.

    NOTE: Do not wipe off the special grease applied to the area of the shift lever marked with an asterisk (*).

Continuously Variable Transmission (CVT) - Service Information

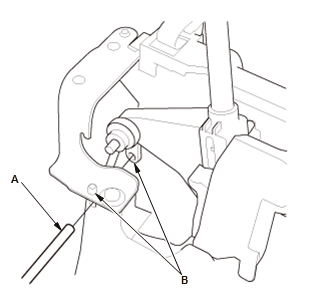

  1. Insert a 6.0 mm (0.236 in) pin (A) into the positioning holes (B).

    NOTE: Use only a 6.0 mm (0.236 in) pin with no burrs.

Continuously Variable Transmission (CVT) - Service Information

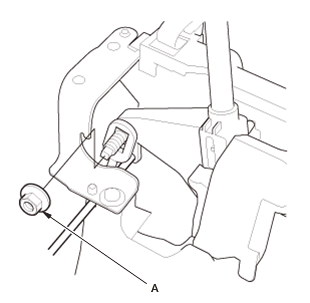

  1. Remove the shift cable end nut (A).

Continuously Variable Transmission (CVT) - Service Information

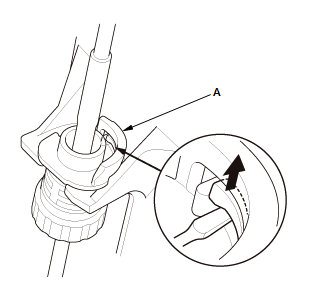

  1. Expand the lock tab (A).

Continuously Variable Transmission (CVT) - Service Information

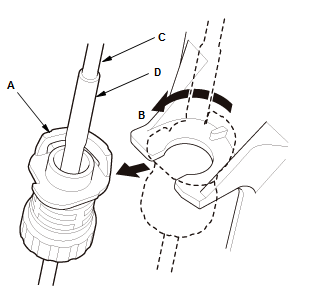

  1. Rotate the socket holder retainer (A) counterclockwise (B) until it stops, then remove the shift cable (C).

    NOTE: Do not remove the shift cable by pulling the shift cable guide (D).

Continuously Variable Transmission (CVT) - Service Information

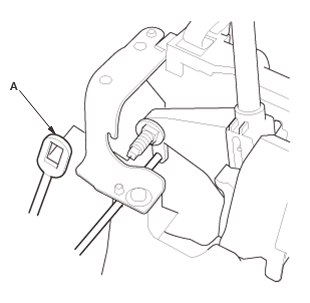

  1. Remove the shift cable end (A).

4. Front Grille Cover - Remove

5. Air Cleaner - Remove

6. Harness Cover - Remove

Continuously Variable Transmission (CVT) - Service Information

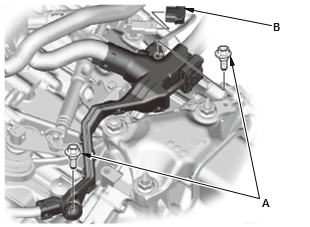

  1. Remove the bolts (A).
  2. Disconnect the connector (B).

7. Shift Cable (Transmission Side) - Remove

Continuously Variable Transmission (CVT) - Service Information

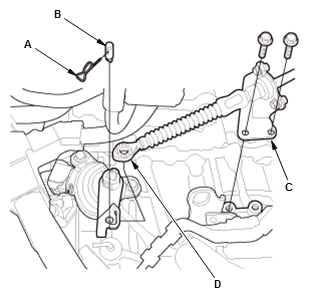

  1. Remove the lock pin (A) and the control pin (B).
  2. Remove the shift cable bracket (C) and the shift cable end (D).

    NOTE: Do not bend the shift cable excessively.

8. Vehicle - Lift

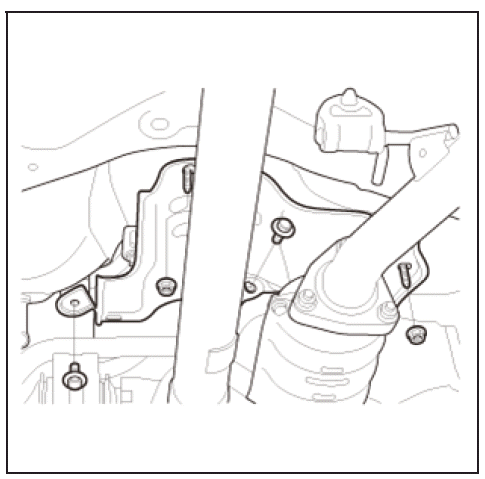

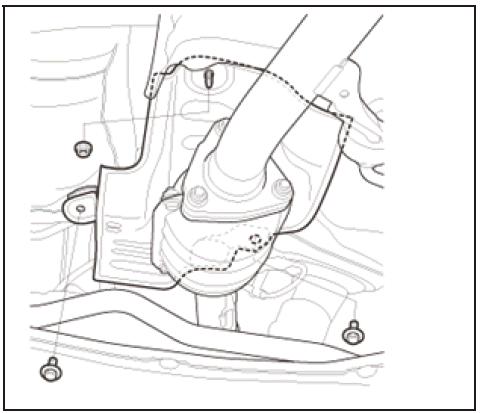

9. Heat Shield - Remove

2WD

Continuously Variable Transmission (CVT) - Service Information

AWD

Continuously Variable Transmission (CVT) - Service Information

10. Shift Cable - Remove

Continuously Variable Transmission (CVT) - Service Information

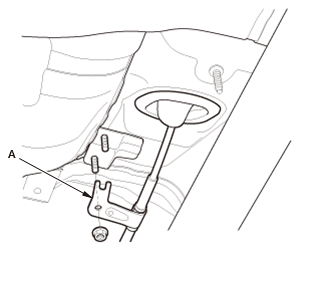

  1. Remove the shift cable bracket (A).

Continuously Variable Transmission (CVT) - Service Information

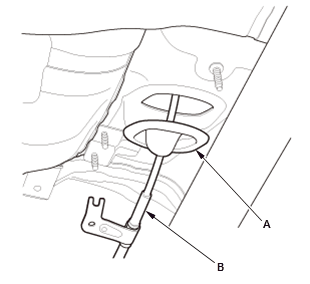

  1. Remove the shift cable grommet (A), and pull out the shift cable (B).

    NOTE: Do not bend the shift cable excessively.

Installation

SRS components are located in this area. Review the SRS component locations - Refer to: SRS Component Location Index (KA/KC), or SRS Component Location Index (KA/KC) and the precautions and procedures before doing repair or service.

1. Shift Cable - Install

Continuously Variable Transmission (CVT) - Service Information

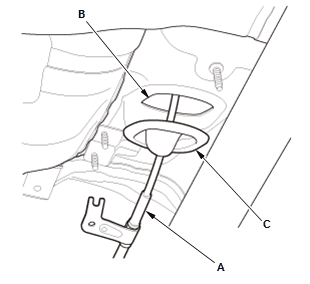

  1. Insert the shift cable (A) through the grommet hole (B), and install the shift cable grommet (C) in its hole.

    NOTE: Do not bend the shift cable excessively.

Continuously Variable Transmission (CVT) - Service Information

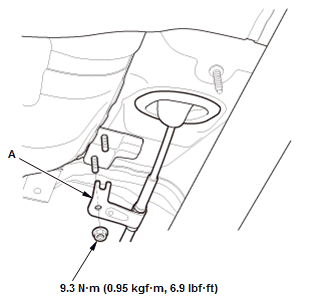

  1. Install the shift cable bracket (A).

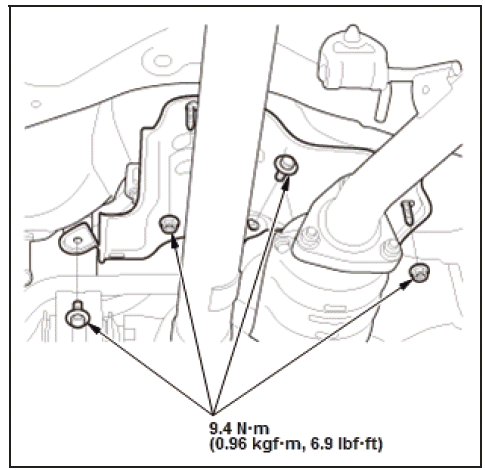

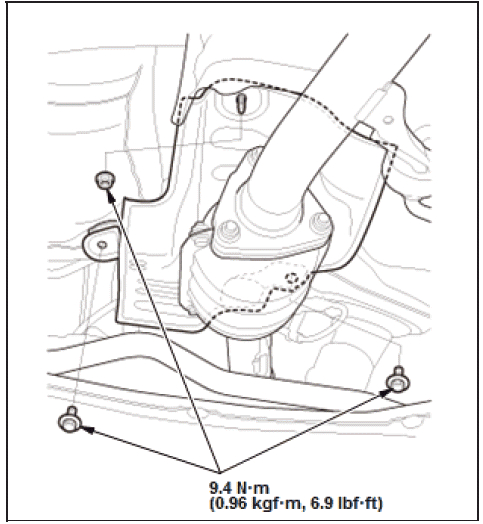

2. Heat Shield - Install

2WD

Continuously Variable Transmission (CVT) - Service Information

AWD

Continuously Variable Transmission (CVT) - Service Information

3. Shift Cable (Transmission Side) - Install

Continuously Variable Transmission (CVT) - Service Information

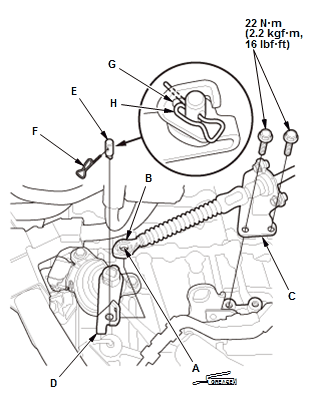

Fig. 21: Shift Cable (Transmission Side) With Torque Specifications

  1. Apply molybdenum grease to the inner surface of the hole (A) in the shift cable end (B).
  2. Install the shift cable bracket (C) while installing the shift cable end to the control lever (D).

    NOTE: Do not bend the shift cable excessively.

  3. Install the control pin (E).
  4. Insert the lock pin (F) in the direction shown through the control pin hole and out the opening (G) of the control lever so that the hooked end (H) of the lock pin locks into the control pin hole.

4. Harness Cover - Install

Continuously Variable Transmission (CVT) - Service Information

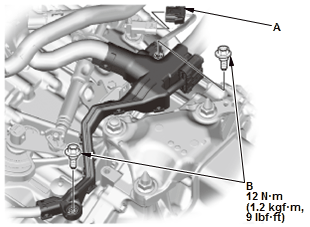

Fig. 22: Harness Cover With Torque Specifications

  1. Connect the connector (A).
  2. Install the bolts (B).

5. Air Cleaner - Install

6. Front Grille Cover - Install

7. Shift Cable - Adjust

Continuously Variable Transmission (CVT) - Service Information

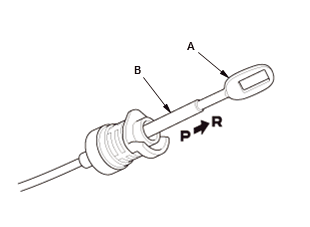

  1. Push the shift cable (A) until it stops, then release it.

    NOTE: Do not hold the shift cable guide (B) to adjust the shift cable.

  2. Pull the shift cable back one step from the P position so that the shift position is in R.

Continuously Variable Transmission (CVT) - Service Information

  1. Turn the vehicle to the ON mode.

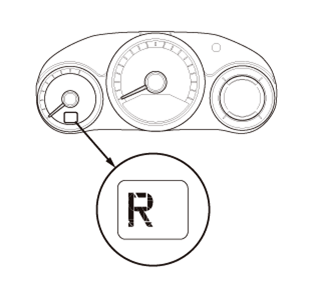

  2. Check that the R indicator comes on.
  3. Turn the vehicle to the OFF (LOCK) mode or the ACCESSORY mode.

8. Shift Cable (Shift Lever Side) - Install

Continuously Variable Transmission (CVT) - Service Information

  1. Install the shift cable end (A) over the mounting stud (B) by aligning its square hole (C) with the square fitting (D) at the bottom of the stud.

Continuously Variable Transmission (CVT) - Service Information

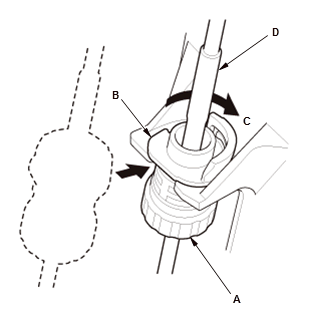

  1. Install the socket holder (A), then rotate the socket holder retainer (B) clockwise (C) until it stops.

    NOTE:

    • Do not install the shift cable by holding the shift cable guide (D).

Continuously Variable Transmission (CVT) - Service Information

  1. Make sure that the shift cable end (A) is properly installed on the mounting stud (B).
    • If the cable end is out of position with the mounting stud, remove the shift cable from the shift cable bracket, then reinstall the cable end over the mounting stud before reinstalling the shift cable to the shift cable bracket. Do not install the shift cable end on the mounting stud with the shift cable installed on the shift cable bracket.
    • If the shift cable end does not ride at the bottom of the mounting stud, rotate the stud to align the square fitting with the hole.

Continuously Variable Transmission (CVT) - Service Information

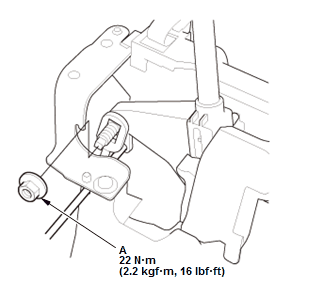

Fig. 23: Shift Cable End Nut With Torque Specifications

  1. Install the shift cable end nut (A).

Continuously Variable Transmission (CVT) - Service Information

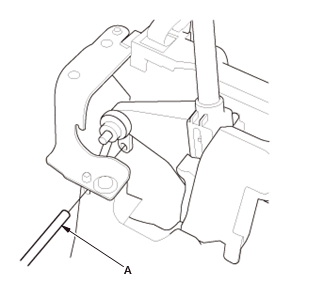

  1. Remove the 6.0 mm (0.236 in) pin (A) that was installed to hold the shift lever.

9. Center Console - Install

10. Shift Cable - After Install Check

  1. Start the engine.
    NOTE: Check that the engine starts in P or N position/mode, and does not start in any other positions / modes.
  2. Check the shift lever operation.
  3. Move the shift lever through all positions / modes, and verify the transmission range switch matches with the A/T gear position indicator.
  4. Check that the back-up lights come on when the transmission is in R position/mode.
  5. Shift the transmission to P position/mode.
  6. Check that the shift lock works properly. Push the shift lock release, and check that the shift lever releases, and also check that the shift lever locks when it is shifted back to P position/mode.
  7. Make sure the vehicle is turned to the OFF (LOCK) mode with the shift lever is in P position/mode.

    If it does not, adjust the shift cable.
