Honda HR-V: Shift Lever Removal and Installation (CVT)

Removal

SRS components are located in this area. Review the SRS component locations - Refer to: SRS Component Location Index (KA/KC), or SRS Component Location Index (KA/KC) and the precautions and procedures before doing repair or service.

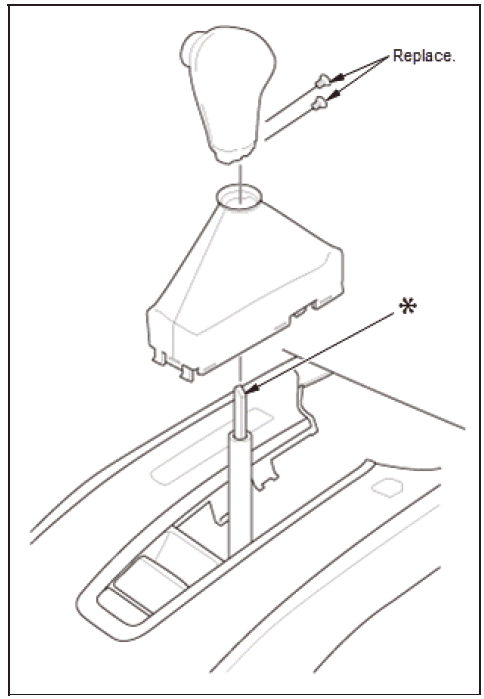

1. Shift Lever Knob / Shift Lever Boots - Remove

Continuously Variable Transmission (CVT) - Service Information

NOTE: Do not wipe off the special grease applied to the area of the shift lever marked with an asterisk (*).

2. Center Console - Remove

3. Shift Cable (Shift Lever Side) - Remove

Continuously Variable Transmission (CVT) - Service Information

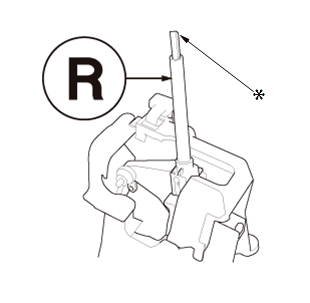

  1. Shift the transmission to R position/mode.
    NOTE: Do not wipe off the special grease applied to the area of the shift lever marked with an asterisk (*).

Continuously Variable Transmission (CVT) - Service Information

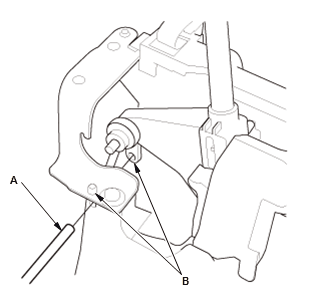

  1. Insert a 6.0 mm (0.236 in) pin (A) into the positioning holes (B).

    NOTE: Use only a 6.0 mm (0.236 in) pin with no burrs.

Continuously Variable Transmission (CVT) - Service Information

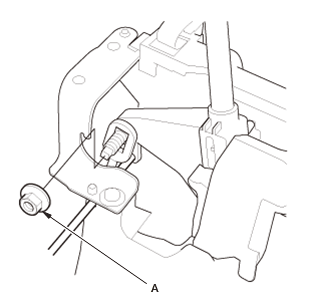

  1. Remove the shift cable end nut (A).

Continuously Variable Transmission (CVT) - Service Information

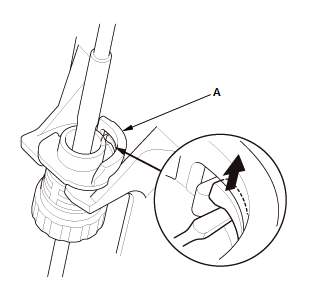

  1. Expand the lock tab (A).

Continuously Variable Transmission (CVT) - Service Information

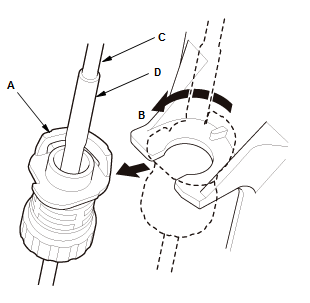

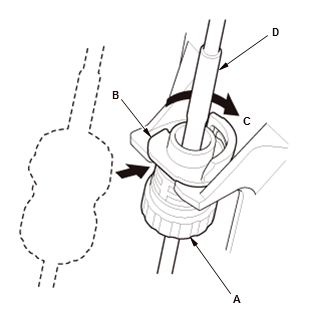

  1. Rotate the socket holder retainer (A) counterclockwise (B) until it stops, then remove the shift cable (C).

    NOTE: Do not remove the shift cable by pulling the shift cable guide (D).

Continuously Variable Transmission (CVT) - Service Information

  1. Remove the shift cable end (A).

4. Connector - Disconnect

Continuously Variable Transmission (CVT) - Service Information

5. Shift Lever Assembly - Remove

Continuously Variable Transmission (CVT) - Service Information

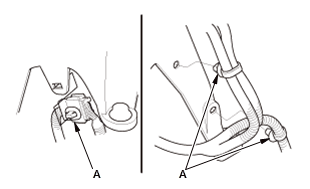

  1. Remove the harness clamps (A).

Continuously Variable Transmission (CVT) - Service Information

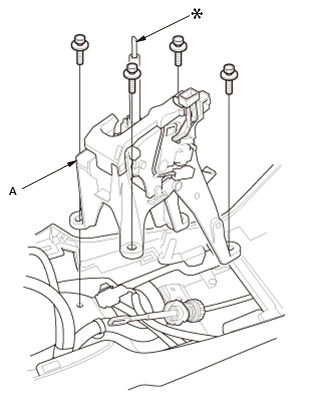

  1. Remove the shift lever assembly (A).

    NOTE: Do not wipe off the special grease applied to the area of the shift lever marked with an asterisk (*).

Installation

SRS components are located in this area. Review the SRS component locations - Refer to: SRS Component Location Index (KA/KC), or SRS Component Location Index (KA/KC) and the precautions and procedures before doing repair or service.

1. Shift Lever Assembly - Install

Continuously Variable Transmission (CVT) - Service Information

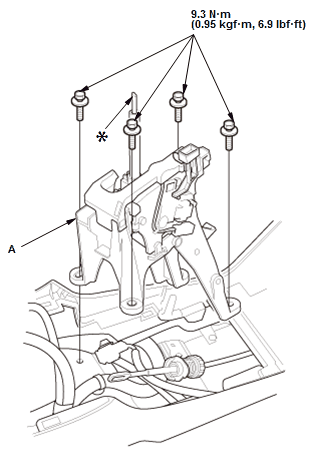

  1. Install the shift lever assembly (A).

    NOTE: Do not wipe off the special grease applied to the area of the shift lever marked with an asterisk (*).

Continuously Variable Transmission (CVT) - Service Information

  1. Install the harness clamps (A).

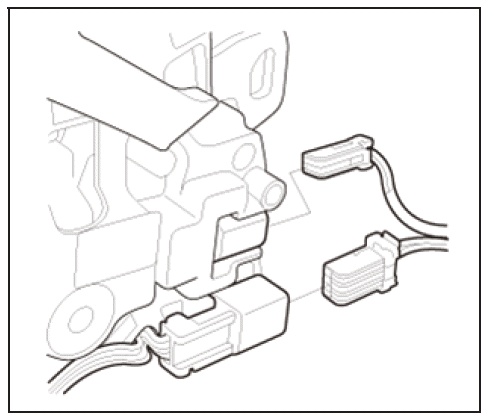

2. Connector - Connect

Continuously Variable Transmission (CVT) - Service Information

3. Shift Cable - Adjust

Continuously Variable Transmission (CVT) - Service Information

  1. Push the shift cable (A) until it stops, then release it.

    NOTE: Do not hold the shift cable guide (B) to adjust the shift cable.

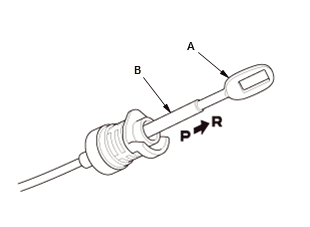

  2. Pull the shift cable back one step from the P position so that the shift position is in R.

Continuously Variable Transmission (CVT) - Service Information

  1. Turn the vehicle to the ON mode.

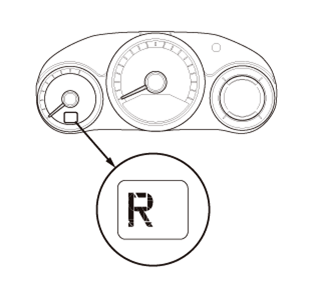

  2. Check that the R indicator comes on.
  3. Turn the vehicle to the OFF (LOCK) mode or the ACCESSORY mode.

4. Shift Cable (Shift Lever Side) - Install

Continuously Variable Transmission (CVT) - Service Information

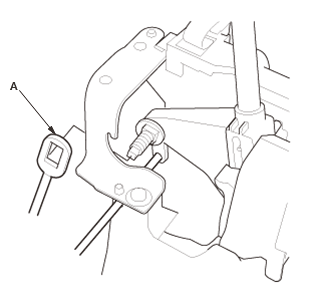

  1. Install the shift cable end (A) over the mounting stud (B) by aligning its square hole (C) with the square fitting (D) at the bottom of the stud.

Continuously Variable Transmission (CVT) - Service Information

  1. Install the socket holder (A), then rotate the socket holder retainer (B) clockwise (C) until it stops.
    NOTE:
    • Do not install the shift cable by holding the shift cable guide (D).

Continuously Variable Transmission (CVT) - Service Information

  1. Make sure that the shift cable end (A) is properly installed on the mounting stud (B).
    • If the cable end is out of position with the mounting stud, remove the shift cable from the shift cable bracket, then reinstall the cable end over the mounting stud before reinstalling the shift cable to the shift cable bracket. Do not install the shift cable end on the mounting stud with the shift cable installed on the shift cable bracket.
    • If the shift cable end does not ride at the bottom of the mounting stud, rotate the stud to align the square fitting with the hole.

Continuously Variable Transmission (CVT) - Service Information

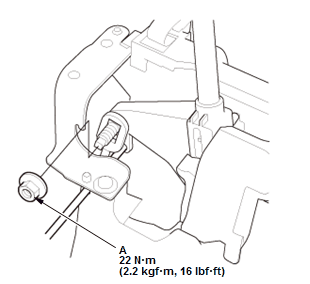

Fig. 24: Shift Cable End Nut With Torque Specifications

  1. Install the shift cable end nut (A).

Continuously Variable Transmission (CVT) - Service Information

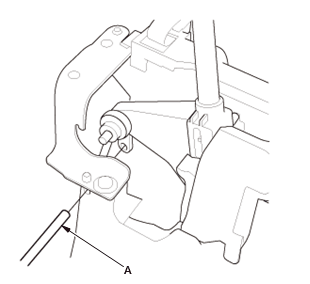

  1. Remove the 6.0 mm (0.236 in) pin (A) that was installed to hold the shift lever.

5. Center Console - Install

6. Shift Lever Knob / Shift Lever Boots - Remove

Continuously Variable Transmission (CVT) - Service Information

NOTE: Do not wipe off the special grease applied to the area of the shift lever marked with an asterisk (*).

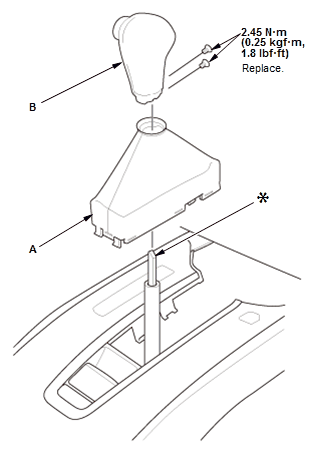

  1. Install the shift lever boots (A).
  2. Install the shift lever knob (B) to the shift lever, using a new screws.

7. Shift Lever Assembly - After Install Check

  1. Turn the vehicle to the ON mode.
  2. Shift the transmission to each position/mode, and check that the A/T gear position indicator follows the shift lever operation.
  3. Check that the back-up lights come on when the transmission is in R position/mode.
  4. Check that the engine starts when the transmission is in P or N position/mode, and does not start in any other positions / modes.
  5. Shift the transmission to P position/mode.
  6. Check that the shift lock works properly. Push the shift lock release, and check that the shift lever releases, and also check that the shift lever locks when it is shifted back to P position/mode.
