Honda HR-V: Clutch Hydraulic System Bleeding
CLUTCH HYDRAULIC SYSTEM BLEEDING (M/T)
Bleeding
NOTE:
- Do not reuse the drained fluid. Always use genuine Honda DOT 3 or DOT 4
Brake Fluid from an unopened container. Using a non-Honda brake fluid can
cause corrosion and shorten the life of the
system.
- Make sure no dirt or other foreign matter is allowed to contaminate the
brake fluid.
- Do not spill brake fluid on the vehicle; it may damage the paint or
plastic. If brake fluid gets on the paint or plastic, wash it off
immediately with water.
- If may be necessary to limit the movement of the release fork with a
block of wood to remove all the air from the system.
- Use fender covers to avoid damaging painted surfaces.

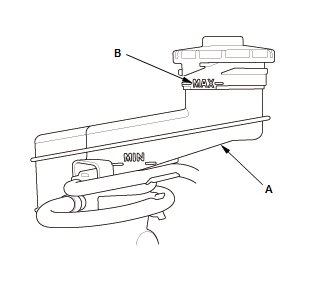

1. Reservoir - Check
.png)
- Make sure the brake fluid level in the reservoir (A) is at the MAX
(upper) level line
(B).

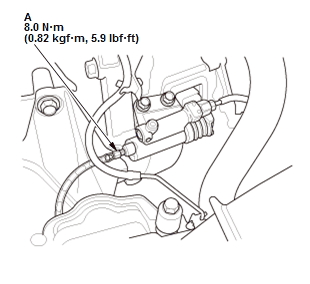

2. Clutch Hydraulic System - Bleed
.png)
- Attach one end of a clear tube to the bleeder screw (A), and put the
other end into a
container.
- Loosen the bleeder screw to allow air to escape from the system.
- Make sure there is an adequate supply of fluid in the reservoir, then
slowly push the
clutch pedal all the way down. Before releasing the pedal, have an assistant
temporarily tighten the bleeder screw. Loosen the bleeder screw and push the
clutch
pedal down again. Repeat this step until no more bubbles appear at the clear
tube.
NOTE: Make sure the fluid level on the reservoir does not go below MIN
(lower).
- Tighten the bleeder screw securely. Torque Specifications for details on
how to
recalculate the torque wrench setting.
- Refill the brake fluid in the reservoir to the MAX (upper) level line.
- Check the clutch operation and check for leaking fluid.
COMPONENT LOCATION INDEX

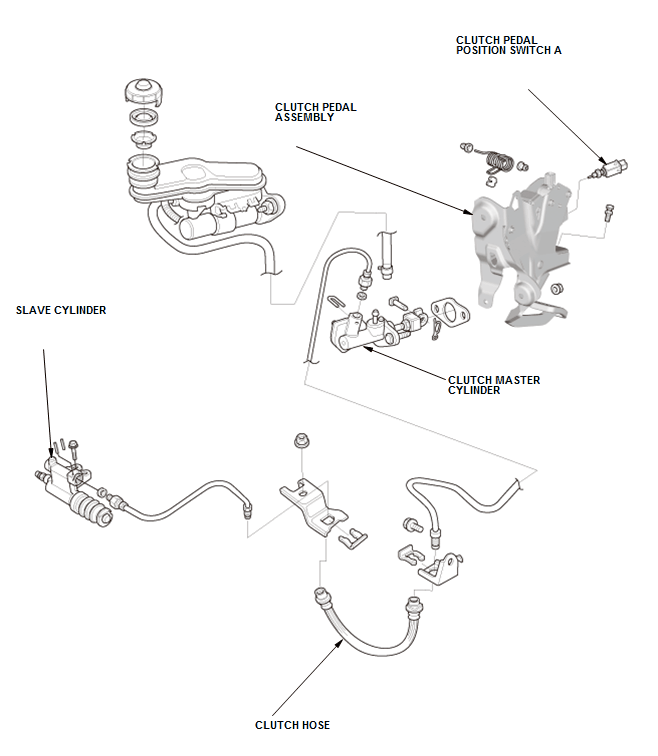

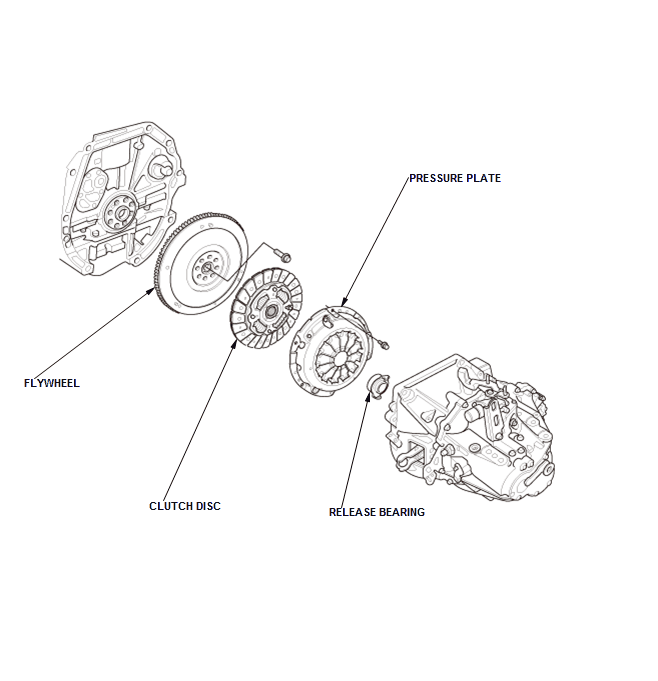

CLUTCH COMPONENT LOCATION INDEX (M/T)
.png)
.png)

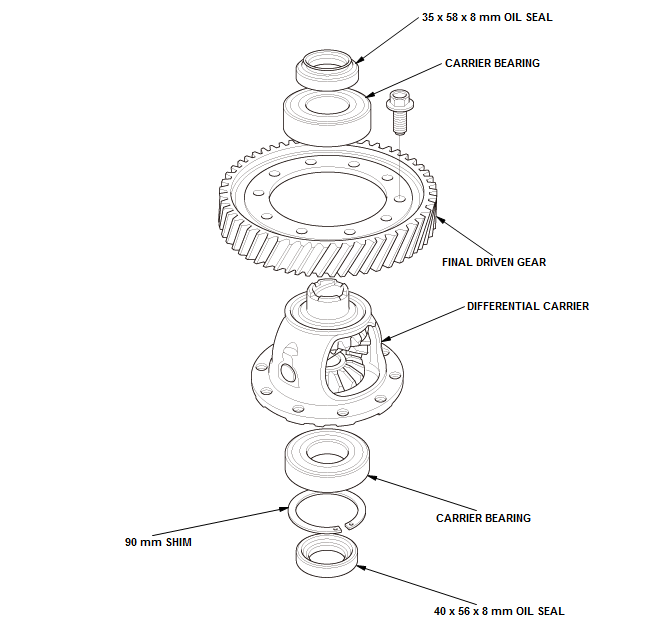

M/T DIFFERENTIAL COMPONENT LOCATION INDEX (M/T)
.png)

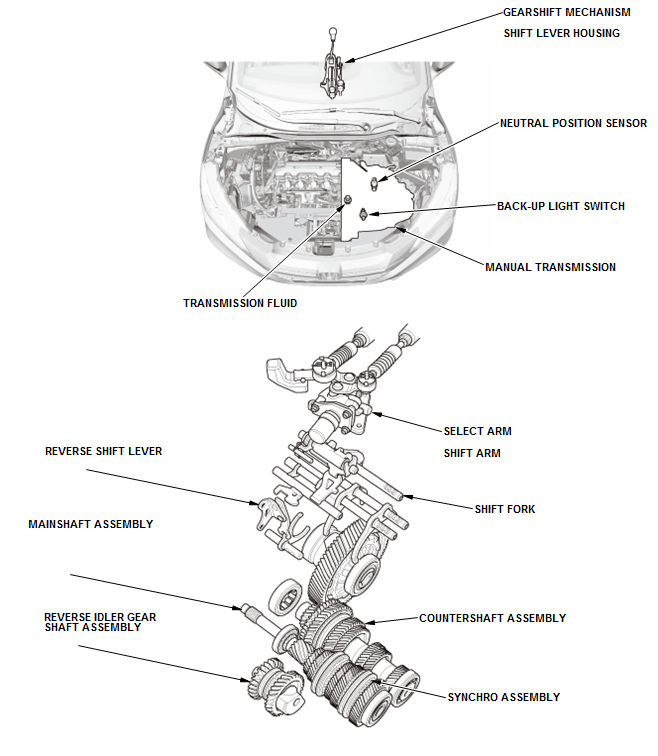

MANUAL TRANSMISSION COMPONENT LOCATION INDEX (M/T)
.png)

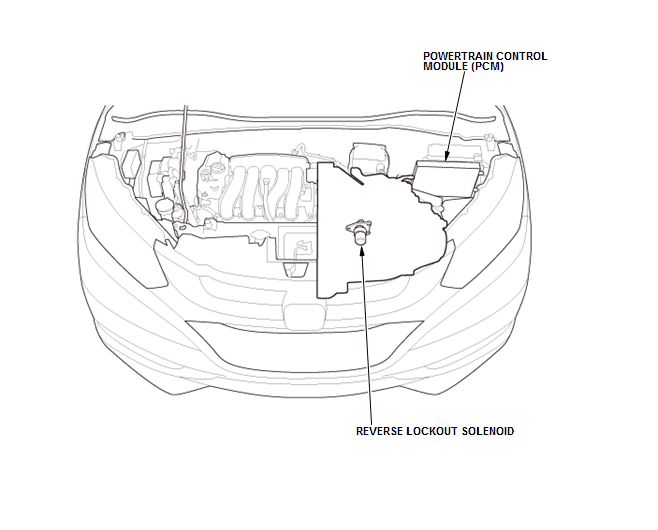

REVERSE LOCKOUT SYSTEM COMPONENT LOCATION INDEX (M/T)
.png)
