Honda HR-V: Rear Hub Bearing Unit Removal and Installation (AWD)

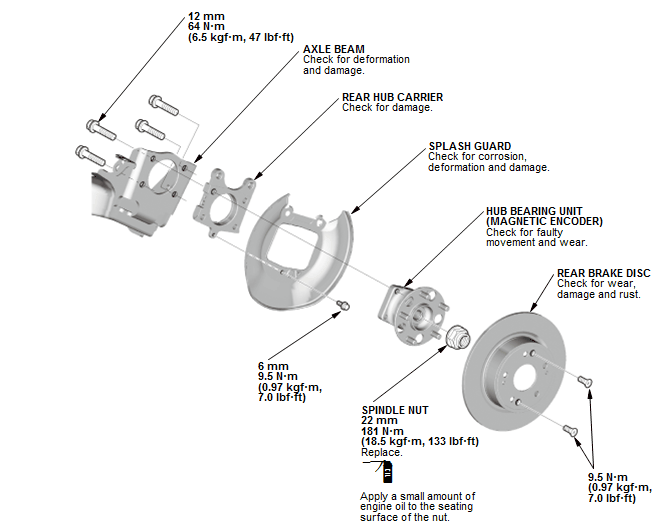

Exploded View
1. Hub Bearing Unit - Exploded View
Exploded View
.png)
Fig. 26: Rear Hub Bearing Exploded View WIth Torque Specifications
Removal & Installation
NOTE: Refer to the Exploded View as needed during the following procedures.
1. Vehicle - Lift
2. Rear Wheel - Remove
3. Parking Brake - Release

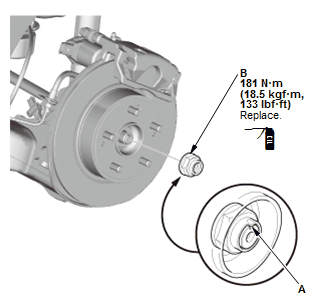

4. Driveshaft Spindle Nut - Remove
.png)
- Pry up the stake (A) on the spindle nut (B)
- Remove the spindle nut.
5. Rear Wheel Speed Sensor - Remove
.png)
6. Rear Brake Calliper - Remove

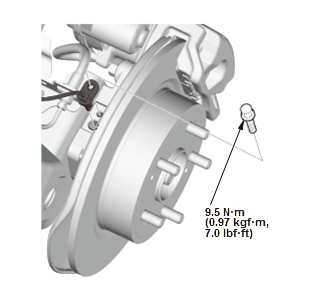

7. Rear Brake Disc - Remove

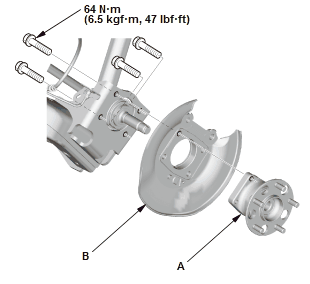

8. Hub Bearing Unit - Remove
.png)
Fig. 28: Rear Hub Bearing Mounting Bolts Torque Specifications
- Remove the hub bearing unit (A) and the splash guard/rear hub carrier
(B).
NOTE:
- Do not pull the driveshaft end outward. The inner driveshaft inboard
joint may come apart.
- Be careful not to damage the brake line.
- Keep the wheel bearing/encoder away from any magnetic field. The
encoder can be damaged or erased.
9. All Removed Parts - Install
- Install the hub bearing unit in the reverse order of removal.
NOTE: Apply a small amount of engine oil to the seating surface of a new
spindle nut.
REAR SPRING REMOVAL AND INSTALLATION (2WD)
Removal
1. Vehicle - Lift
2. Rear Wheels - Remove

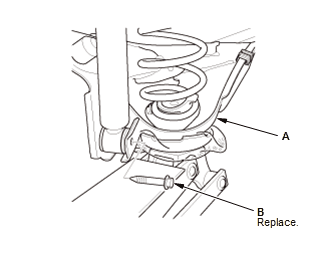

3. Damper Lower Side - Disconnect
.png)
- Position a floor jack under lower spring seat (A) of the axle beam. Do
not place the floor jack under the center of the axle
beam
- Raise the floor jack until the suspension begins to compress
- Remove the damper mounting bolt (B).

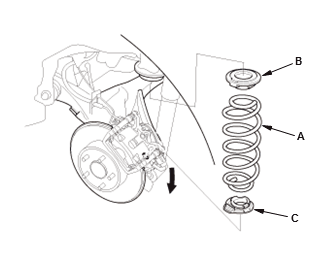

4. Spring - Remove
.png)
- Lower the floor jack gradually
- Remove the spring (A), upper rubber mount (B), and lower rubber mount
(C).
Installation
1. Spring - Install
.png)
- Install the upper rubber mount (A) on the spring (B) by aligning the
upper end (C) of the spring with the ledge portion (D) of the
upper rubber mount.
.png)
- Install the lower rubber mount (A) on the spring (B) by aligning the
lower end (C) of the spring with the ledge portion (D) of the
lower rubber mount.

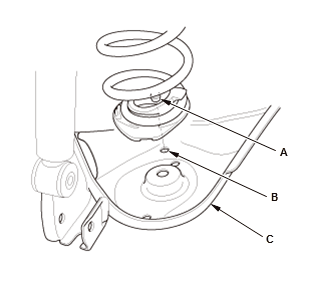

.png)
- Install the tab (A) of the lower rubber mount into the groove (B) of the
lower spring seat.
NOTE:
- Make sure that the tab of the lower rubber mount is properly
installed into the axle beam (C).
- Make sure that the spring was installed correctly.

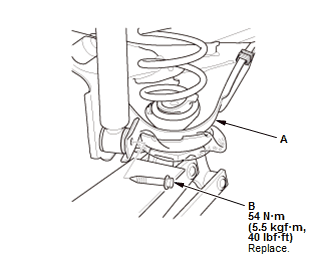

2. Rear Damper Lower Side - Connect
.png)
Fig. 29: Rear Damper Lower Mounting Bolt Torque Specifications
- Position a floor jack under lower spring seat (A) of the axle beam. Do
not place the floor jack under the center of the axle beam
- Raise the floor jack until the suspension begins to compress
- Loosely install a new damper mounting bolt (B)
- Raise the rear suspension with the jack until the vehicle just lifts off
of the safety stands, then tighten the damper mounting bolt to the specified
torque.
3. Rear Wheels - Install
4. Wheel Alignment - Check
