Honda HR-V: Rear Bumper Reflector Removal and Installation

Honda HR-V (2015-2021) Service Manual / Accessories & Equipment / Exterior Trim - Service Information / Rear Bumper Reflector Removal and Installation

Removal & Installation

1. Rear Inner Fender - Remove

  1. Remove the rear inner fender - Refer to: Front Inner Fender Removal and Installation, or Rear Inner Fender Removal and Installation as needed.

2. Rear Bumper Reflector - Remove

Exterior Trim - Service Information

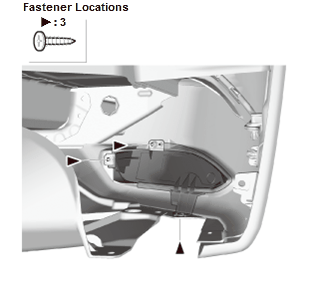

  1. Remove the screws.

Exterior Trim - Service Information

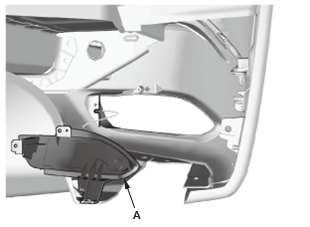

  1. Remove the rear bumper reflector (A).

3. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.

REAR BUMPER REMOVAL AND INSTALLATION

Removal & Installation

1. Rear Wheel Arch Protector - Remove

  1. Remove the rear wheel arch protector - Refer to: Front Wheel Arch Protector Removal and Installation, or Rear Wheel Arch Protector Removal and Installation as needed.

2. Rear Bumper - Remove

Exterior Trim - Service Information

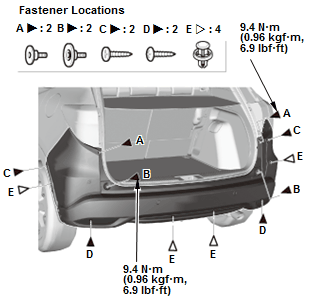

  1. Remove the bolts (A, B), the screws (C, D), and the clips (E).

Exterior Trim - Service Information

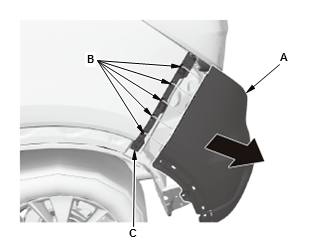

  1. Pull out the rear bumper (A) at the wheel arch area to release it from the hooks (B) on the side spacer (C).

Exterior Trim - Service Information

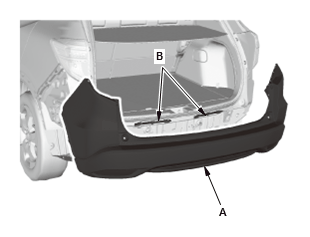

  1. With the help of an assistant, pull out the rear bumper (A) to release it from the hooks (B) on the upper brackets
  2. Remove the rear bumper.

3. Rear Bumper Side Spacer - Remove

Exterior Trim - Service Information

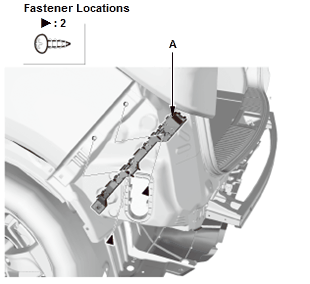

  1. If necessary, remove the rear bumper side spacer (A).

4. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.

REAR FLOOR UNDERCOVER REMOVAL AND INSTALLATION (2WD)

Removal & Installation

1. Vehicle - Lift

2. Rear Floor Undercover - Remove (For Some Models)

Exterior Trim - Service Information

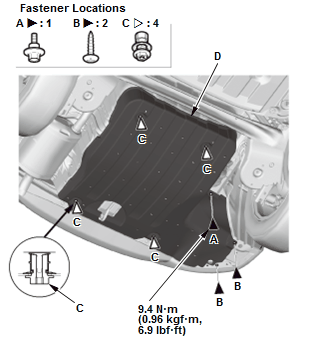

NOTE : The retainer clips (C) will stay in the rear floor under cover (D).

3. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.
