Honda HR-V: Rear Inner Fender Removal and Installation

Honda HR-V (2015-2021) Service Manual / Accessories & Equipment / Exterior Trim - Service Information / Rear Inner Fender Removal and Installation

Removal & Installation

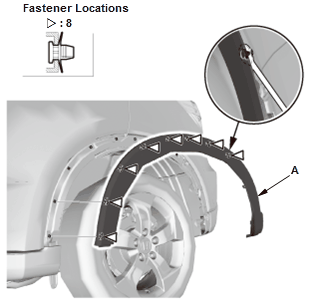

1. Rear Strake - Remove

2. Rear Splash Guard - Remove (For Some Models) - Refer to: Rear Splash Guard Removal and Installation, or Front Splash Guard Removal and Installation

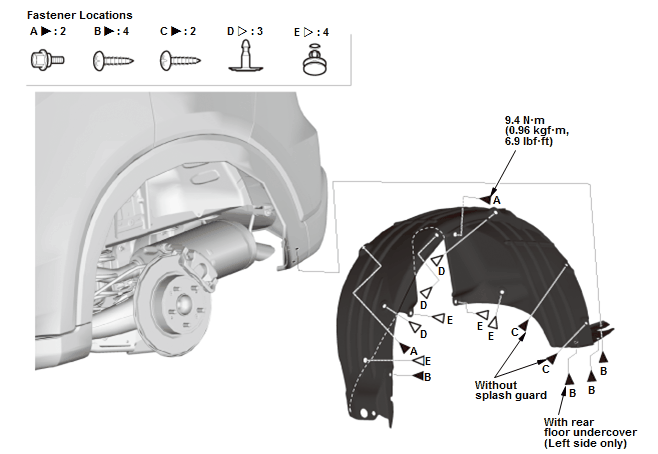

3. Rear Inner Fender - Remove

Exterior Trim - Service Information

4. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.

REAR LICENSE TRIM REMOVAL AND INSTALLATION

Removal & Installation

1. Rear License Trim - Remove

Exterior Trim - Service Information

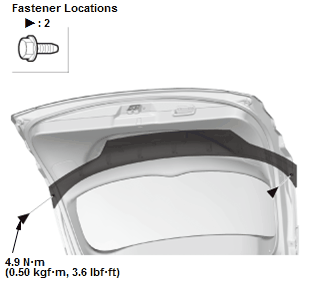

  1. Remove the bolts.

Exterior Trim - Service Information

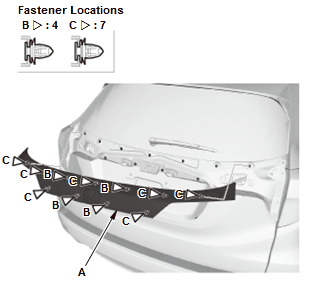

  1. Remove the rear license trim (A).

Exterior Trim - Service Information

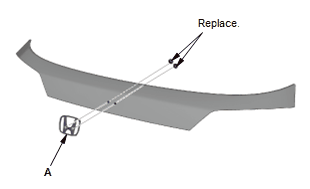

  1. If necessary, remove the rear "H" emblem (A).

2. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.

REAR PILLAR CORNER TRIM REMOVAL AND INSTALLATION

Removal & Installation

1. Rear Pillar Corner Trim - Remove

Exterior Trim - Service Information

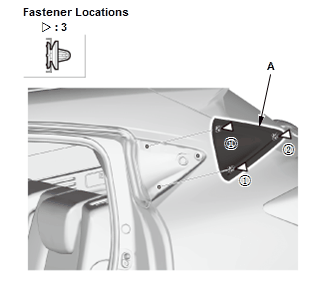

  1. Remove the rear pillar corner trim (A).

2. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.

REAR SPLASH GUARD REMOVAL AND INSTALLATION

Removal & Installation

1. Rear Splash Guard - Remove

Exterior Trim - Service Information

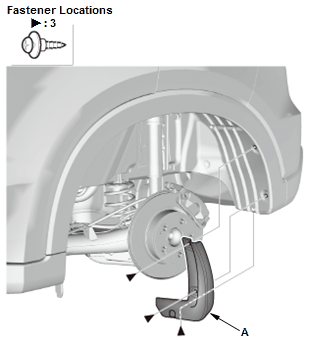

  1. Remove the rear splash guard (A).

2. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.

REAR STRAKE REMOVAL AND INSTALLATION

Removal & Installation

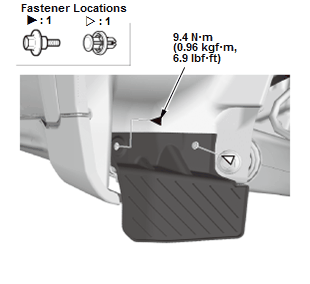

1. Rear Strake - Remove

Exterior Trim - Service Information

2. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.

REAR WHEEL ARCH PROTECTOR REMOVAL AND INSTALLATION

Removal & Installation

1. Rear Wheel Arch Protector - Remove

Exterior Trim - Service Information

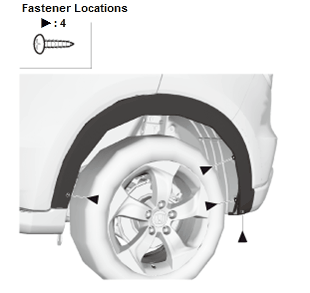

  1. Remove the screws.

Exterior Trim - Service Information

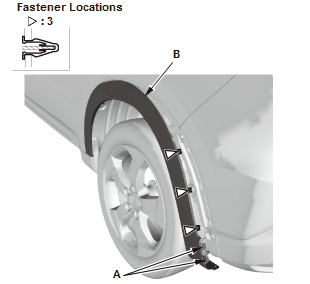

  1. Release the hooks (A) and clips from the rear side of the rear wheel arch protector (B).

Exterior Trim - Service Information

  1. Carefully pry out the clip portions of the rear wheel arch protector (A) with the trim tool to detach the clips, then remove it.

2. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.
