Honda HR-V: Radiator Removal and Installation

Removal and Installation

1. Engine Coolant - Drain

2. Engine Undercover - Remove (With Engine Undercover)

3. Lower Radiator Hose and Connector (ECT Sensor 2) - Disconnect

Engine Cooling System - Service Information

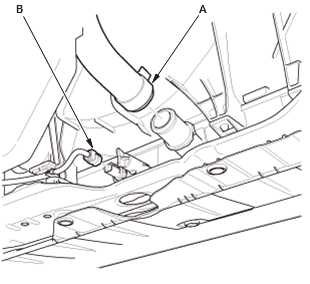

  1. Disconnect the lower radiator hose (A) and the connector (B).

4. Radiator Fan Shroud Assembly and A/C Condenser Fan Shroud Assembly - Remove

5. Upper Radiator Hose - Disconnect

Engine Cooling System - Service Information

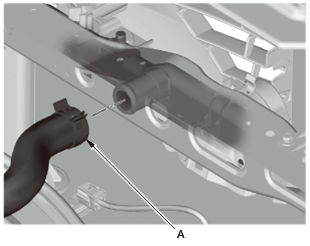

  1. Disconnect the upper radiator hose (A).

6. Coolant Reservoir Hose and Coolant Filler - Remove

Engine Cooling System - Service Information

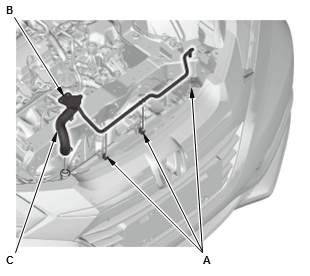

  1. Remove the coolant reservoir hose from the clamps (A)
  2. Remove the coolant filler (B) with the coolant filler hose (C).

7. Radiator - Remove

Engine Cooling System - Service Information

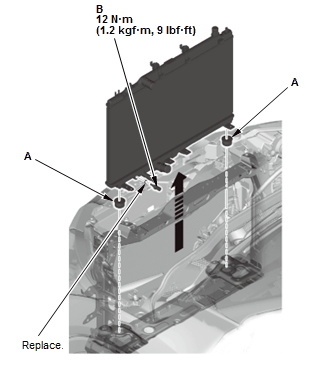

  1. Pull up the radiator
  2. Remove the lower cushions (A) and ECT sensor 2 (B).

8. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.

    NOTE:

    • When the radiator installed. Make sure the lower cushions are set securely.
    • After installing all the removed parts, refill the radiator with engine coolant, and bleed the air from the cooling system.
