Honda HR-V: Moonroof Frame and Drain Tube Removal and Installation

Honda HR-V (2015-2021) Service Manual / Accessories & Equipment / Moonroof - Service Information / Moonroof Frame and Drain Tube Removal and Installation

Removal & Installation

SRS components are located in this area. Review the SRS component locations - Refer to: SRS Component Location Index (KA/KC), or SRS Component Location Index (KA/KC) and the precautions and procedures before doing repairs or service.

NOTE :

  • Before installing the frame, clear the drain tubes and the drain valves using compressed air.
  • To install a new drain tube, tie the string left in the body during drain tube removal to the top end of the new drain tube, and pull it up into the roof.
  • When connecting the drain tubes, slide them over the frame nozzles at least 10 mm (0.39 in).
  • Check the frame seal.

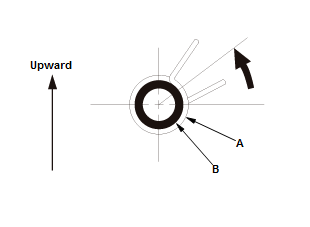

  • Install the tube clips (A) on the drain tubes (B) as shown.

Moonroof - Service Information

Moonroof Frame

1. Headliner - Remove

2. These Items - Remove (if necessary)

If necessary, remove these items.

  • Remove the moonroof glass
  • Remove the wind deflector
  • Remove the drain channel
  • Remove the moonroof motor

3. Moonroof Frame - Remove

Moonroof - Service Information

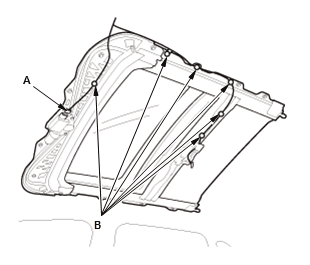

  1. Disconnect the connector (A)
  2. Remove the harnesses clips (B).

Moonroof - Service Information

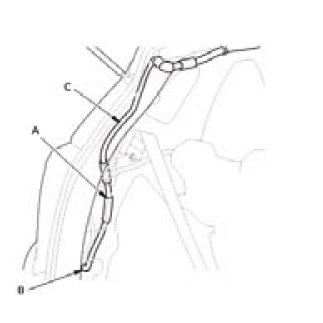

  1. Disconnect the front drain tubes (A) and the rear drain tubes (B).

Moonroof - Service Information

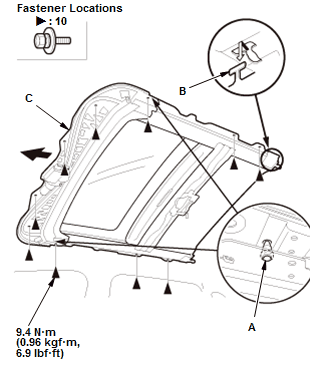

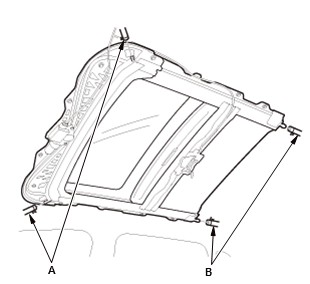

  1. Remove the bolts and lower the frame to release the pins (A), then release the hooks (B)
  2. With the help of an assistant, then remove the panoramic glass roof frame (C).

Moonroof - Service Information

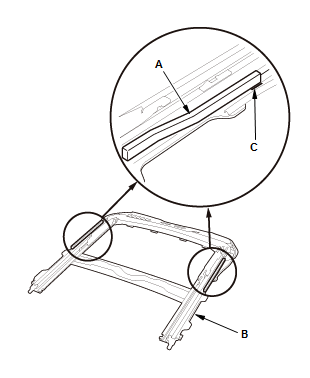

  1. If necessary, remove the frame seals (A) from the frame (B).

    NOTE : Make sure the frame seals line up with the alignment marks (C).

4. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.

5. Moonroof Glass Position - Adjust

6. Moonroof Control Unit - Reset

7. Water Leaks - Check

Front Drain Tube

8. Headliner - Remove

9. Driver's Dashboard Lower Cover - Remove

10. Under-Dash Fuse/Relay Box - Remove

11. Passenger's Dashboard Undercover - Remove

12. Glove Box - Remove

13. Front Drain Tube - Remove

Moonroof - Service Information

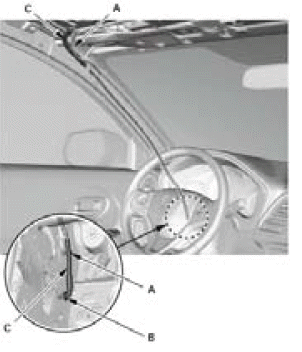

  1. Pull the front drain valve (A) out of the body hole
  2. Pull the front drain valve (B) out of the body hole
  3. Tie a string to the top end of the front drain tube (C), then pull the drain tube down out of the pillar. Leave the string in the pillar to use when reinstalling the drain tube.

14. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.

15. Water Leaks - Check

Rear Drain Tube

16. Headliner - Remove

17. Rear Drain Tube - Remove

Moonroof - Service Information

  1. Remove the clip (A). (left side only)
  2. Pull the rear drain valve (B) out of the body hole
  3. Tie a string to the top end of the rear drain tube (C), then pull the drain tube down out of the pillar. Leave the string in the pillar to use when reinstalling the drain tube.

18. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.

19. Water Leaks - Check
