Honda HR-V: Fuel Cap Adapter Removal and Installation
Removal & Installation
1. Rear Inner Fender - Remove (Left Side) - Refer to: Front Inner Fender Removal and Installation, or Rear Inner Fender Removal and Installation
2. Fuel Cap Adapter - Remove
.png)

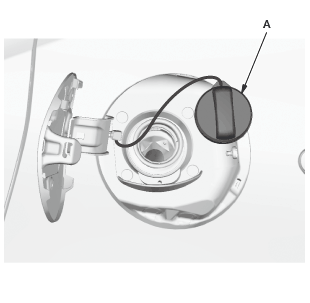

- Remove the fuel cap (A).
.png)

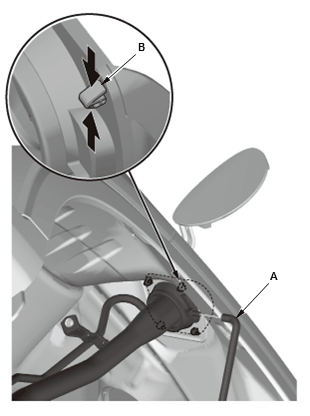

- Remove the hose (A), then release the clips (B).
.png)

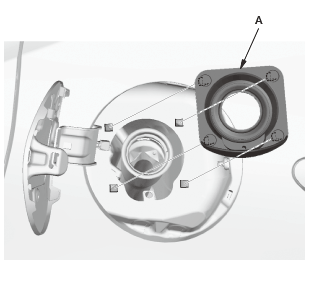

- Remove the fuel cap adapter (A).
3. All Removed Parts - Install
- Install the parts in the reverse order of removal.
FUEL FILL DOOR OPENER CABLE REMOVAL AND INSTALLATION
Removal & Installation
1. Fuel Fill Door Opener - Remove
2. Front Seat - Remove (Driver's Side)
3. B-Pillar Lower Trim - Remove (Driver's Side) - Refer to: Interior Trim Removal and Installation - Door Areas, or Interior Trim Removal and Installation - Tailgate Areas, or Interior Trim Removal and Installation - Rear Side Area, or Interior Trim Removal and Installation - Cargo Areas, or Interior Trim Removal and Installation - Pillar Areas (With Side Curtain Airbag), or Interior Trim Removal and Installation - Pillar Areas (Without Side Curtain Airbag)
4. Rear Door Sill Trim - Remove (Driver's Side) - Refer to: Interior Trim Removal and Installation - Door Areas, or Interior Trim Removal and Installation - Tailgate Areas, or Interior Trim Removal and Installation - Rear Side Area, or Interior Trim Removal and Installation - Cargo Areas, or Interior Trim Removal and Installation - Pillar Areas (With Side Curtain Airbag), or Interior Trim Removal and Installation - Pillar Areas (Without Side Curtain Airbag)
5. Rear Side Trim Panel - Remove (Driver's Side) - Refer to: Interior Trim Removal and Installation - Door Areas, or Interior Trim Removal and Installation - Tailgate Areas, or Interior Trim Removal and Installation - Rear Side Area, or Interior Trim Removal and Installation - Cargo Areas, or Interior Trim Removal and Installation - Pillar Areas (With Side Curtain Airbag), or Interior Trim Removal and Installation - Pillar Areas (Without Side Curtain Airbag)
6. Fuel Fill Door Opener Cable - Remove
.png)

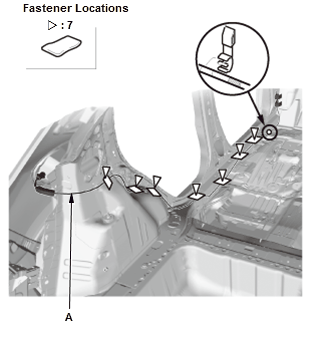

- Remove the fuel fill door opener cable (A) from inside the body.
.png)
- Pull back the carpet as needed

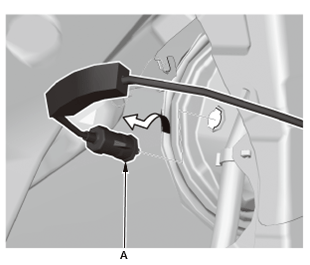

- Remove the fuel fill door opener cable (A).
7. All Removed Parts - Install
- Install the parts in the reverse order of removal.
