Honda HR-V: Moonroof Sunshade Removal and Installation
Removal & Installation
1. Headliner - Remove
2. Sunshade - Remove
.png)

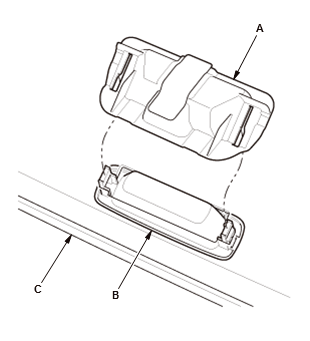

- Remove the sunshade handle bracket (A), then remove the sunshade
handle (B) from the sunshade (C).
.png)

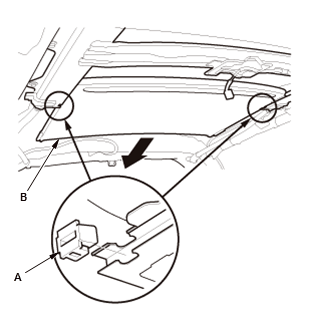

- Remove both sunshade rear stoppers (A)
- Remove the sunshade (B).
3. All Removed Parts - Install
- Install the parts in the reverse order of removal.
MOONROOF SWITCH REMOVAL, INSTALLATION, AND TEST
Removal & Installation
1. Front Individual Map Light - Remove

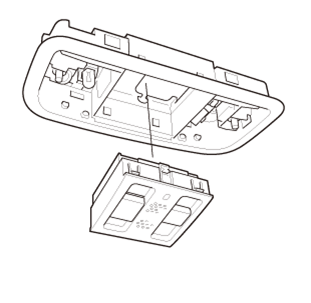

2. Moonroof Switch - Remove
.png)
3. Moonroof Switch Bulb - Remove
.png)

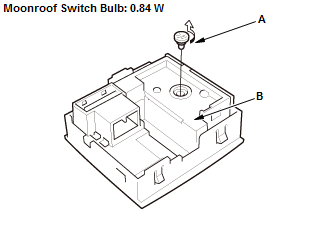

- Remove the cover (A)
- Turn the bulb (B) 45º counterclockwise to remove the
bulb.
4. All Removed Parts - Install
- Install the parts in the reverse order of removal.
Test
1. Moonroof Switch - Test
.png)
.png)

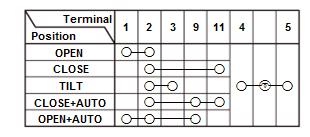

- Check for continuity between the terminals in each
switch position according to the table
- If the continuity is not as specified, replace the bulb
- If the continuity is still not as specified, replace the

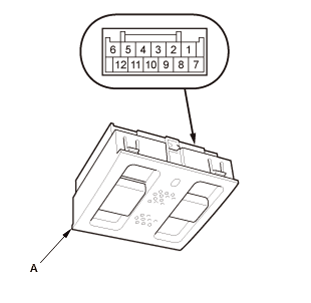

interior light/moonroof switch (A).
MOONROOF WIND DEFLECTOR REMOVAL AND INSTALLATION
Removal & Installation
1. Wind Deflector - Remove
.png)
- Open the glass fully

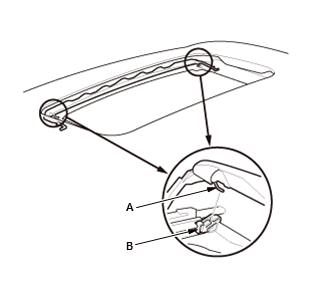

- Disconnect the deflector springs (A) from the bushings (B) on
both sides.
.png)

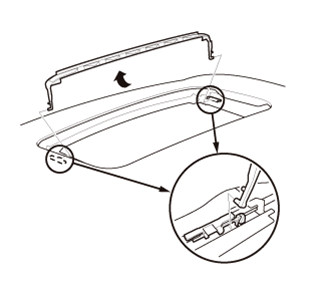

- Remove the wind deflector.
2. All Removed Parts - Install
- Install the parts in the reverse order of removal.
3. Moonroof Control Unit - Reset
