Honda HR-V: Lane Departure Warning System Description - Overview

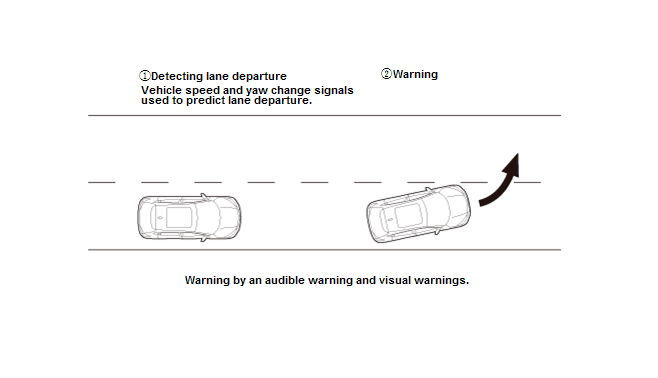

The lane departure warning system determines if the vehicle is unintentionally leaving the lane in which it is travelling. By identifying the lane markings in reference to the vehicle position, the system issues an audible warning and visual warning in the multi-information display when vehicle lane departure occurs.

Driving Assistance Warning - Testing & Troubleshooting

Multi Purpose camera unit

The multi purpose camera unit mounts behind the rear view mirror on the windshield.

LDW OFF switch

To disable the system, the LDW OFF switch is pressed for a minimum of 0.5 seconds.

Operation

  • To control the lane departure warning system, the multi purpose camera unit receives information from the integrated camera, VSA modulator-control unit and the PCM, and sends commands to the gauge control module and multi-information display to issue warnings to the driver.
  • The multi purpose camera unit looks at signals from the gauge control module and VSA modulator-control unit to determine if the driver is actively controlling the vehicle or not. Use of the turn signals and brakes indicate the driver is controlling the vehicle, and no warnings would be issued.

LDW Activate Condition

The system might activate (warn the driver) when it detects or encounters these situations:

  • Metallic projections on the road
  • Metallic manhole and drain covers
  • Signs and guardrails ahead
  • Low overpasses and narrow gates
  • Approaching vehicle that are turning left or right
  • Passing slower vehicle ahead

The system may not activate (no warning) when it detects or encounters these situations:

  • Low-speed, heavy traffic (such as in a traffic jam)
  • Being cut-off by a slower vehicle
  • Approaching a vehicle stopped at an angle
  • Driving on curves
  • Approaching a bicycle or moped
  • Dirt or snow stuck on the camera
  • Heavy rain or snow

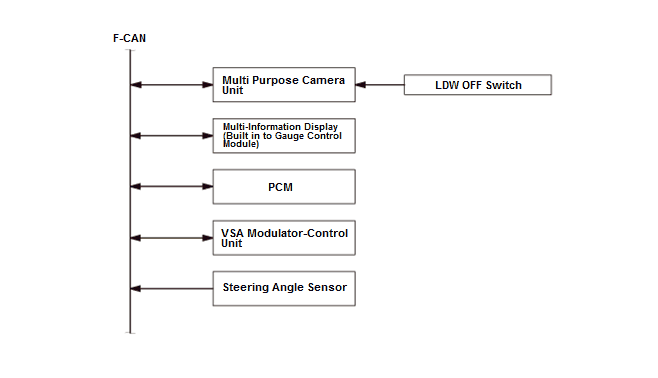

LANE DEPARTURE WARNING SYSTEM DESCRIPTION - SYSTEM DIAGRAM

Driving Assistance Warning - Testing & Troubleshooting
