Honda HR-V: Interior Trim Removal and Installation - Tailgate Areas

Honda HR-V (2015-2021) Service Manual / Accessories & Equipment / Interior Trim - Service Information / Interior Trim Removal and Installation - Tailgate Areas

Removal & Installation

Tailgate Upper Trim Panel

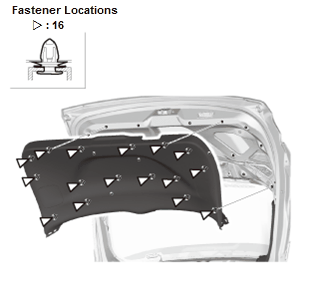

1. Tailgate Upper Trim Panel - Remove

Interior Trim - Service Information

Tailgate Side Trim Panel

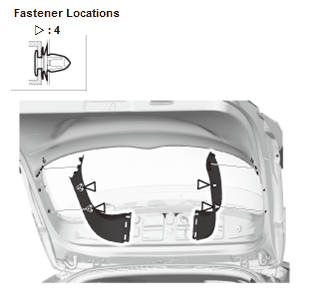

2. Tailgate Side Trim Panel - Remove

Interior Trim - Service Information

Tailgate Lower Trim Panel

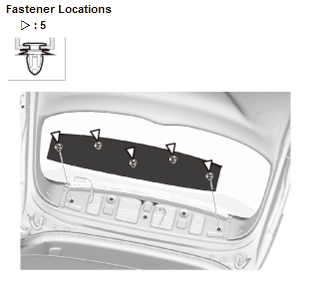

3. Tailgate Lower Trim Panel - Remove

Interior Trim - Service Information

4. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.

Pull Pocket

5. Tailgate Pull Pocket - Remove

Interior Trim - Service Information

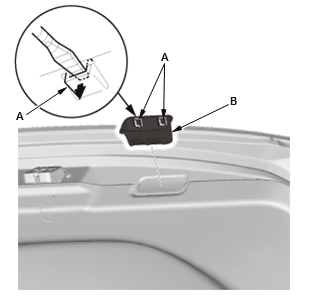

  1. Release the hooks (A) with the flat-tip screwdriver, and then remove the pull pocket (B).

6. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.
