Honda HR-V: Inspection & Adjustment
DRIVE BELT AUTO-TENSIONER INSPECTION
Inspection
1. Drive Belt Auto-Tensioner - Position Check
.png)
- Turn the vehicle to the ON mode, and make sure to turn the A/C switch
OFF, then turn
the vehicle to the OFF (LOCK) mode.
- Check the position of the drive belt auto-tensioner indicator pointer
(A) and the
indicator (B).
- Start the engine, then check the position again with the engine idling.
If the position of
the indicator moves or fluctuates a lot, do the drive belt auto-tensioner
air bleeding,
and recheck. If the position is still fluctuates, replace the drive belt
auto-tensioner.
- Check for abnormal noise from the drive belt auto-tensioner pulley. If
you hear any
abnormal noise, replace the drive belt auto-tensioner.
2. Drive Belt - Remove
3. Drive Belt Auto-Tensioner - Inspect
.png)

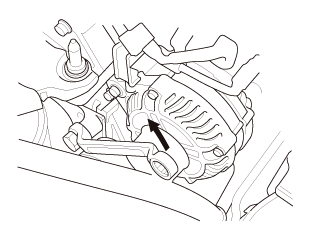

- Set a wrench on the drive belt auto-tensioner, and slowly turn the
wrench in
the direction of the arrow.
NOTE:
- This is a hydraulic type auto-tensioner, so you must turn the wrench
slowly and take at least 3 seconds to finish the stroke.
- Check the drive belt for cracks or damage.
- Check for oil leakage from the damper rubber bellows.
- If the drive belt auto-tensioner does not move smoothly, or you hear
abnormal noise, replace the drive belt auto-tensioner.
4. All Removed Parts - Install
- Install the parts in the reverse order of removal.
DRIVE BELT INSPECTION
Inspection
1. Drive Belt - Inspect
.png)
- Inspect the drive belt for cracks or damage. If the drive belt is
cracked or damaged,
replace it.
- Check the position of the drive belt auto-tensioner indicator pointer
(A) is within the standard range (B) as shown. If it is out of the standard
range, replace the drive belt.
NOTE: When replaced a new drive belt, check the position of the drive belt
auto-tensioner
indicator pointer is within the standard range (C) as shown.
2. Maintenance Minder - Reset (With Maintenance Minder System)
- If the Maintenance Minder required to inspect the drive belt, reset the
Maintenance Minder with
the gauge (see "Resetting the Maintenance Minder").
