CHARGING SYSTEM SYMPTOM TROUBLESHOOTING INDEX
.png)
CHARGING SYSTEM INDICATOR STAYS ON
Diagnostic procedure
1. Gauges Self-Diagnostic Function
CIRCUIT DIAGRAM
CHARGING SYSTEM CIRCUIT DIAGRAM

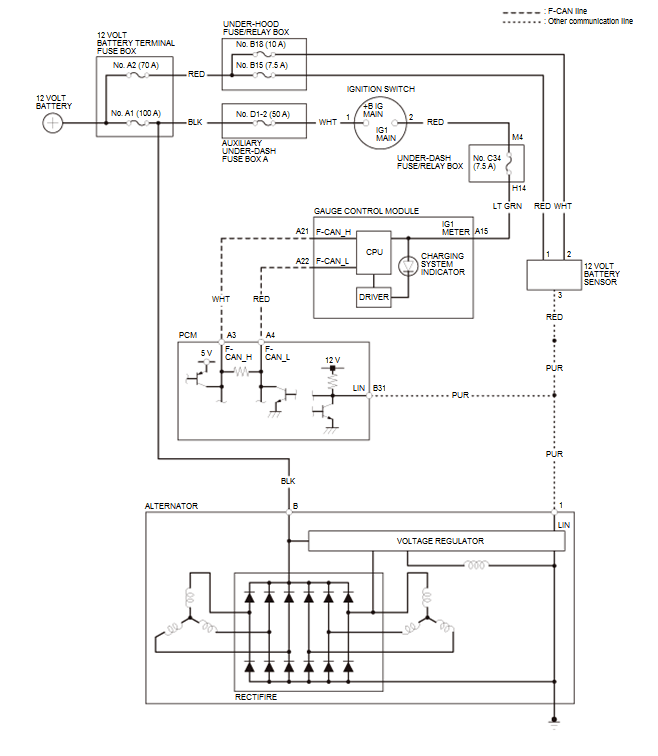

Without Keyless Access System
.png)

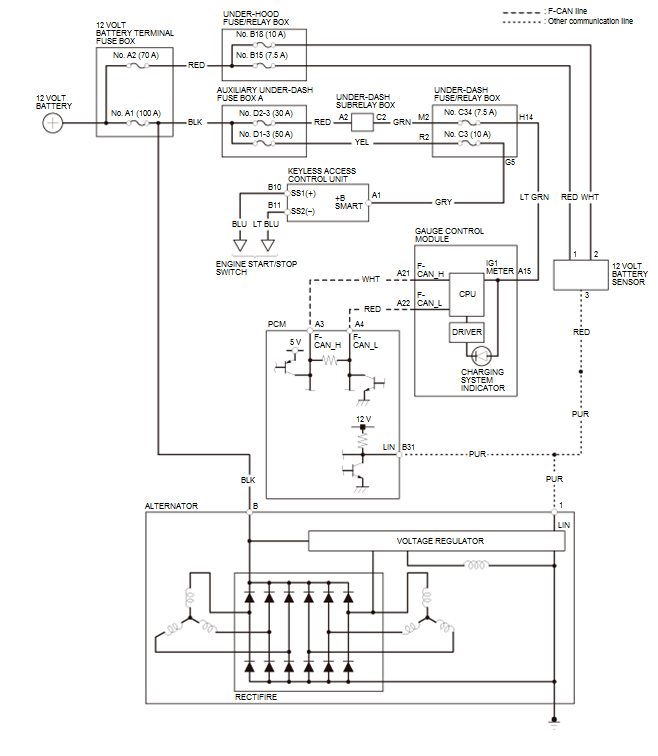

With Keyless Access System
.png)
WIRING DIAGRAM
CHARGING SYSTEM ELECTRONIC WIRING DIAGRAM
Refer To Appropriate Wiring Diagram. SYSTEM WIRING DIAGRAMS
DRIVE BELT AUTO-TENSIONER AIR BLEEDING
Bleeding
1. Drive Belt - Remove
2. Drive Belt Auto Tensioner - Air Bleed
.png)
- From the top of the engine. Set a wrench on the drive belt auto-tensioner.
Take at least 3
seconds to complete a full stroke to compress the drive belt auto-tensioner
in the direction of
the arrow. Then take 3 seconds to complete a full stroke to move the drive
belt auto-tensioner
in the opposite direction (decompressing it). Repeat the full
compress/decompressing action
three more times.
3. All Removed Parts - Install
- Install the parts in the reverse order of removal.
COMPONENT LOCATION INDEX

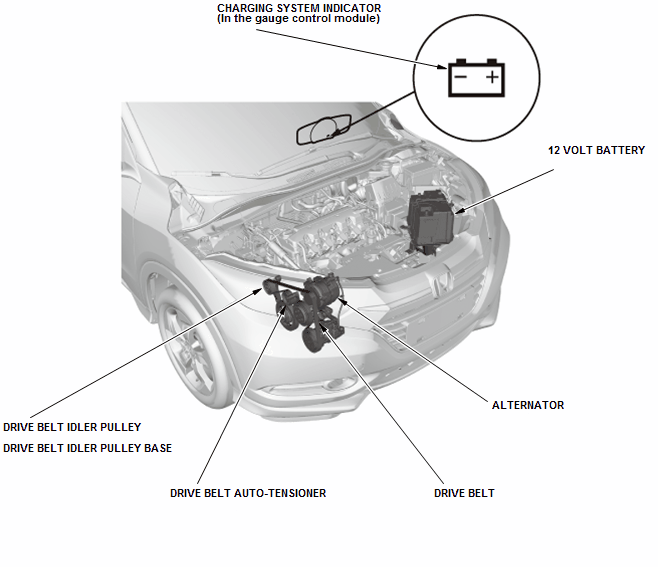

CHARGING SYSTEM COMPONENT LOCATION INDEX
.png)
READ NEXT:
ALTERNATOR OVERHAUL
Special Tools Required
Bearing Driver
Attachment, 42 x
47 mm
07746-0010300
Driver Handle, 15
x 135L
07749-0010000
Exploded View
1. Alternator Exploded View
Fig. 1: Alternator Ex
Removal
1. 12 Volt Battery Terminal - Disconnect
2. 12 Volt Battery - Remove
Remove the 12 volt battery setting plate (A) and the 12 volt
battery (B).
Installation
1. 12 Volt Battery - Install
