Honda HR-V: Immobilizer System Symptom Troubleshooting - Immobilizer Indicator Does Not Go OFF

Honda HR-V (2015-2021) Service Manual / Accessories & Equipment / Security System Keyless Entry System - Testing & Troubleshooting / Symptom Troubleshooting / Immobilizer System Symptom Troubleshooting - Immobilizer Indicator Does Not Go OFF

1. Immobilizer system check.

  1. Connect the HDS to the data link connector (DLC).
  2. Turn the vehicle to the ON mode.
  3. From the SYSTEM SELECTION MENU, enter IMMOBI, then select IMMOBILIZER INFO.

NOTE: If the HDS does not communicate with the immobilizer-keyless control unit, check the power, ground, and K line connections.

Immobilizer - Information/Record Data/History Data - Immobilizer Information

  1. Do the SYSTEM CHECK from the IMMOBILIZER INFO.

Is N-1 OK indicated?

YES

Replace the gauge control module.

NO

Replace the immobilizer-keyless control unit.

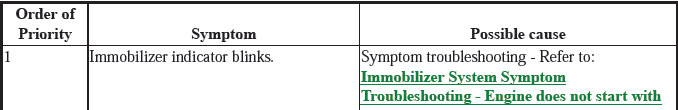

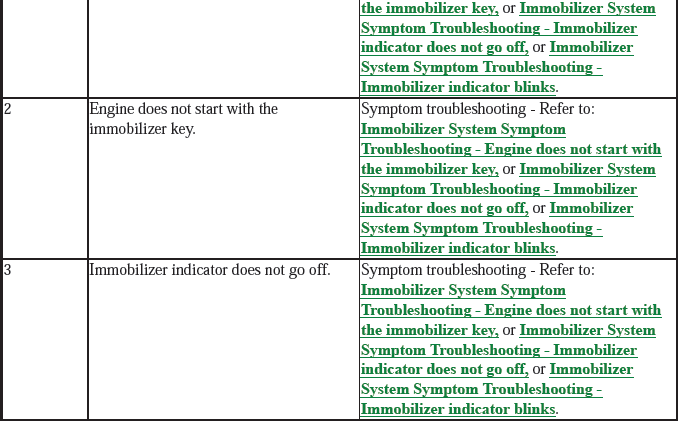

IMMOBILIZER SYSTEM SYMPTOM TROUBLESHOOTING INDEX

Troubleshoot the immobilizer system in the order shown:

Security System Keyless Entry System - Testing & Troubleshooting

Security System Keyless Entry System - Testing & Troubleshooting

IMMOBILIZER INDICATOR DOES NOT GO OFF OR DOES NOT COME ON

Refer to: Keyless Access System Symptom Troubleshooting - Immobilizer indicator does not go off or does not come on
