Honda HR-V: Hood Insulator Removal and Installation
Removal & Installation

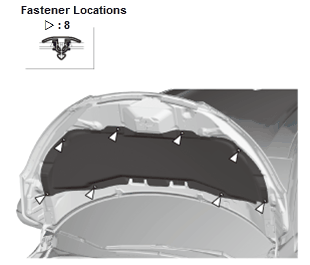

1. Hood Insulator - Remove
.png)
2. All Removed Parts - Install
- Install the parts in the reverse order of removal.
HOOD LATCH REMOVAL AND INSTALLATION
Removal & Installation
1. Front Grille Cover - Remove
2. Front Grille Center Stay - Remove
3. Hood Latch - Remove
.png)

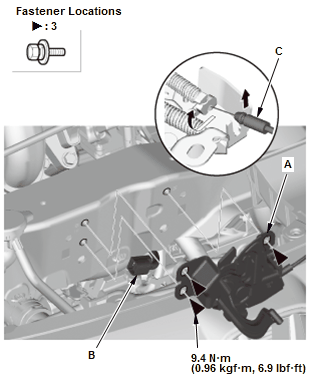

- Remove the hood latch (A)
- Disconnect the connector (B)
- Disconnect the hood opener cable (C) from the hood latch.
4. All Removed Parts - Install
- Install the parts in the reverse order of removal.
HOOD OPENER CABLE REMOVAL AND INSTALLATION
Removal & Installation
1. Front Inner Fender - Remove (Driver's Side) - Refer to: Front Inner Fender Removal and Installation, or Rear Inner Fender Removal and Installation
2. Front Grille Cover - Remove
3. Front Grille Center Stay - Remove
4. Air Intake Duct - Remove
5. Hood Latch - Remove
6. Hood Release Handle - Remove
7. Hood Opener Cable - Remove
.png)

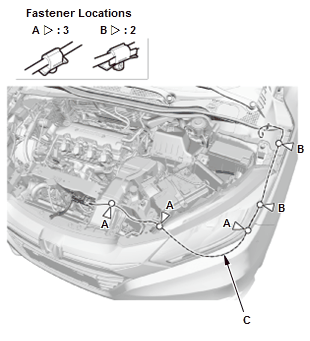

- Remove the clips (A, B), then remove the hood opener cable (C).
8. All Removed Parts - Install
- Install the parts in the reverse order of removal.
HOOD RELEASE HANDLE REMOVAL AND INSTALLATION
Removal & Installation
1. Kick Panel - Remove (Driver's Side) - Refer to: Interior Trim Removal and Installation - Door Areas, or Interior Trim Removal and Installation - Tailgate Areas, or Interior Trim Removal and Installation - Rear Side Area, or Interior Trim Removal and Installation - Cargo Areas, or Interior Trim Removal and Installation - Pillar Areas (With Side Curtain Airbag), or Interior Trim Removal and Installation - Pillar Areas (Without Side Curtain Airbag)
2. Hood Release Handle - Remove
.png)

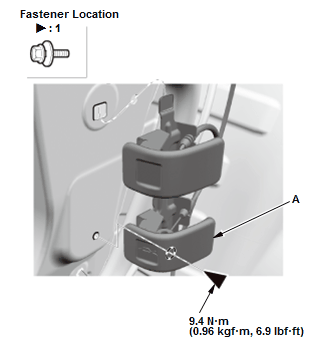

- Remove the hood release handle (A).
.png)

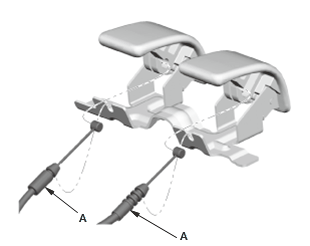

- Disconnect the opener cables (A).
3. All Removed Parts - Install
- Install the parts in the reverse order of removal.
NOTE : Attach at the original position in the outer end of the cable on the hood release handle securely. And check the hood latch operation: Make sure the hood latch unlock when pulling the hood release handle. If necessary, adjust the position of the cable end.
HOOD SEAL REMOVAL AND INSTALLATION
Removal & Installation

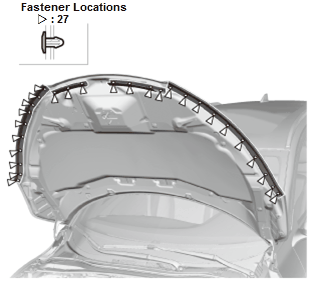

1. Hood Seal - Remove
.png)
2. All Removed Parts - Install
- Install the parts in the reverse order of removal.
