Honda HR-V: Interior Trim Removal and Installation - Cargo Areas

Honda HR-V (2015-2021) Service Manual / Accessories & Equipment / Interior Trim - Service Information / Interior Trim Removal and Installation - Cargo Areas

Removal & Installation

Tonneau Cover

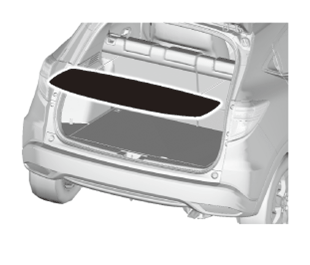

1. Tonneau Cover - Remove (For Some Models)

Interior Trim - Service Information

2. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.

Rear Trim Panel

3. Cargo Floor Board - Remove

Interior Trim - Service Information

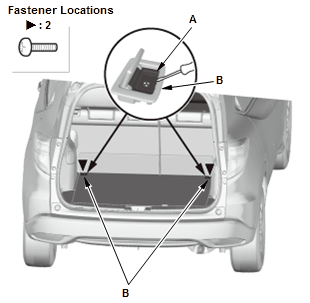

  1. Open the cover (A) with a flat-tip screwdriver
  2. Loosen the screws, and then remove the tie-down hooks (B).

Interior Trim - Service Information

  1. Fold down the rear seat-back to the front side

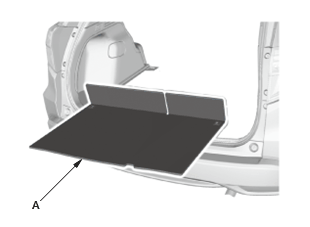

  2. Remove the cargo floor board (A).

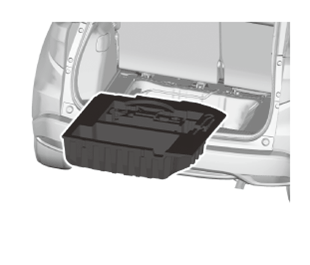

4. Cargo Floor Box - Remove

Interior Trim - Service Information

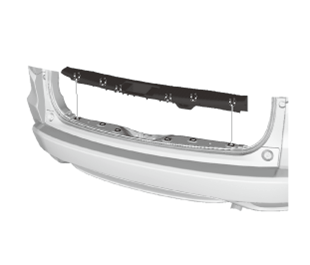

5. Rear Trim Panel - Remove

Interior Trim - Service Information

6. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.
