AUDIO SYSTEM ERROR CODES
The audio system can display a few error codes when some problems are detected with the audio disc player and the audio disc. This is not a complete list of audio error codes. Refer to symptom troubleshooting.

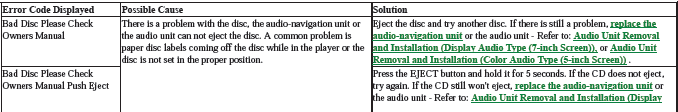

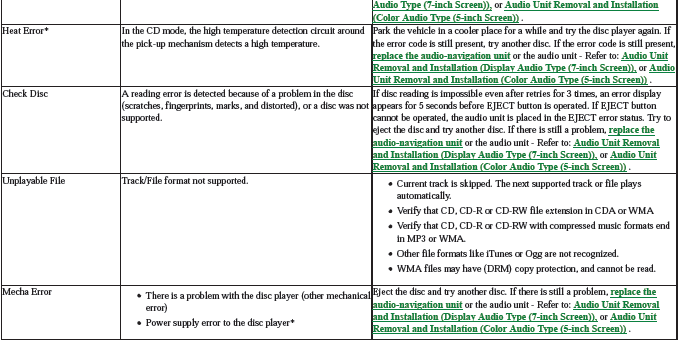

CD Error Codes
.png)
.png)
*: Display audio type (7-inch screen)

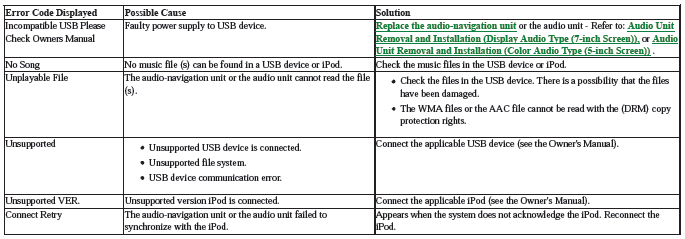

USB Error Codes
.png)
XM Error Codes
.png)
NOTE: Do these checks with the vehicle parked outside with a clear view of the southern horizon.
NAVIGATION SYSTEM ERROR MESSAGES
NOTE: Refer to Error Codes for the error about the audio system.
.png)
