Honda HR-V: Inputs and Outputs
VSA MODULATOR-CONTROL UNIT CONNECTOR FOR INPUTS AND OUTPUTS

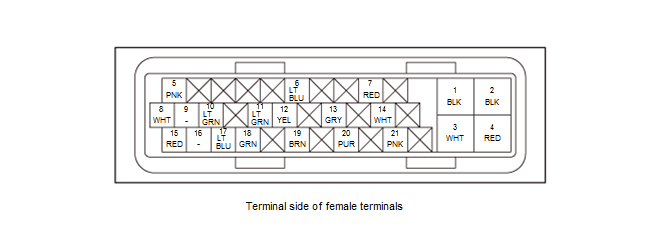

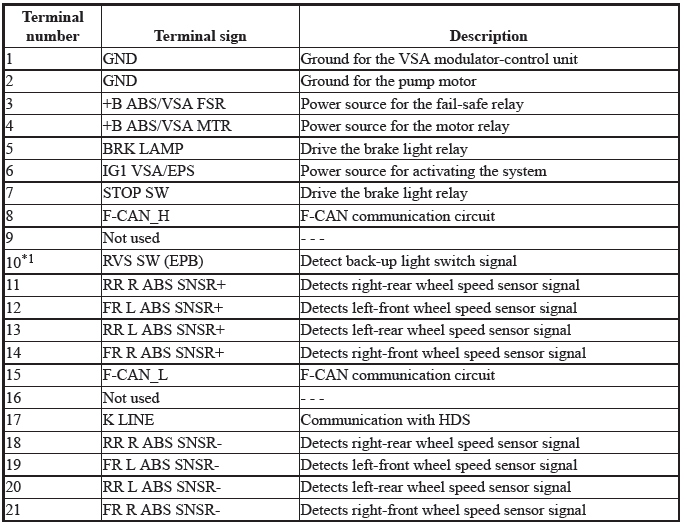

VSA Modulator-Control Unit Inputs and Outputs for 21P Connector
.png)
.png)
*1: M/T
VSA SENSOR NEUTRAL POSITION MEMORIZATION
Procedure
1. HDS - Connect
- Turn the vehicle to the OFF (LOCK) mode.
- Connect the HDS to the DLC.
- Turn the vehicle to the ON mode.
- Make sure the HDS communicates with the vehicle. If it does not
communicate, go to the DLC
circuit troubleshooting.
2. VSA Sensor Neutral Position - Memorize
NOTE: Do not press the brake pedal during this procedure.
- Park the vehicle on a flat and level surface, with the steering wheel in
the straight ahead position
- Select VSA ADJUSTMENT, then select ALL SENSORS with the HDS, and follow
the screen
prompts.
NOTE : See the HDS Help menu for specific instructions.
VSA/TPMS (TIRE PRESSURE MONITORING SYSTEM) ELECTRONIC WIRING DIAGRAM
Refer to appropriate wiring diagram. System Wiring Diagrams
COMPONENT LOCATION INDEX

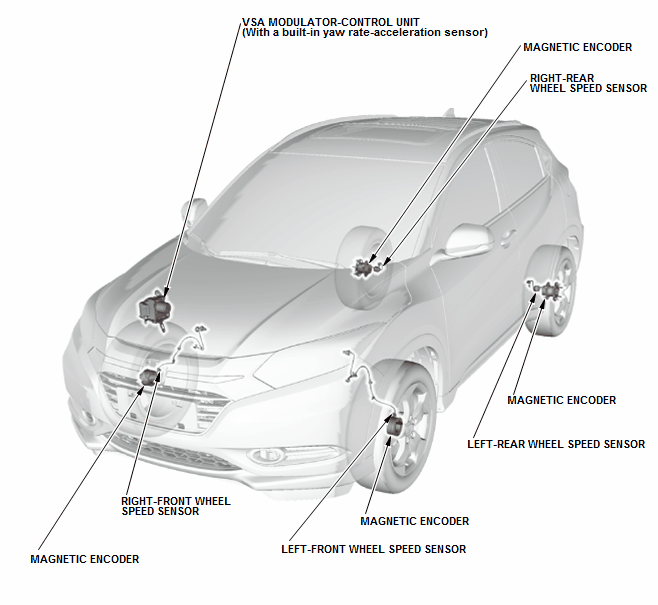

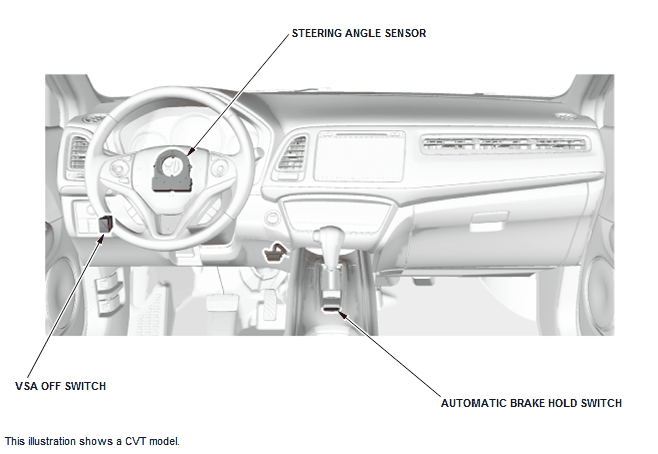

VSA SYSTEM COMPONENT LOCATION INDEX
.png)
.png)
