Honda HR-V: Gauges Symptom Troubleshooting - Outside Air Temperature Indicator Does Not Change

Honda HR-V (2015-2021) Service Manual / Accessories & Equipment / Gauges - Testing & Troubleshooting / Symptom Troubleshooting / Gauges Symptom Troubleshooting - Outside Air Temperature Indicator Does Not Change

Outside air temperature indicator does not change

NOTE: Outside air temperature is indicated based on the measurement value of the outside air temperature sensor located behind the center of the front bumper. Because of the location of the sensor, it may be affected by heat reflection from the road, engine and radiator heat, or hot exhaust from surrounding traffic. To display the outside air temperature, the gauge control module has an indication mode based on engine coolant temperature and vehicle speed. Some modes do not raise the temperature indication, so the outside air temperature indication may not change when the mode continues.

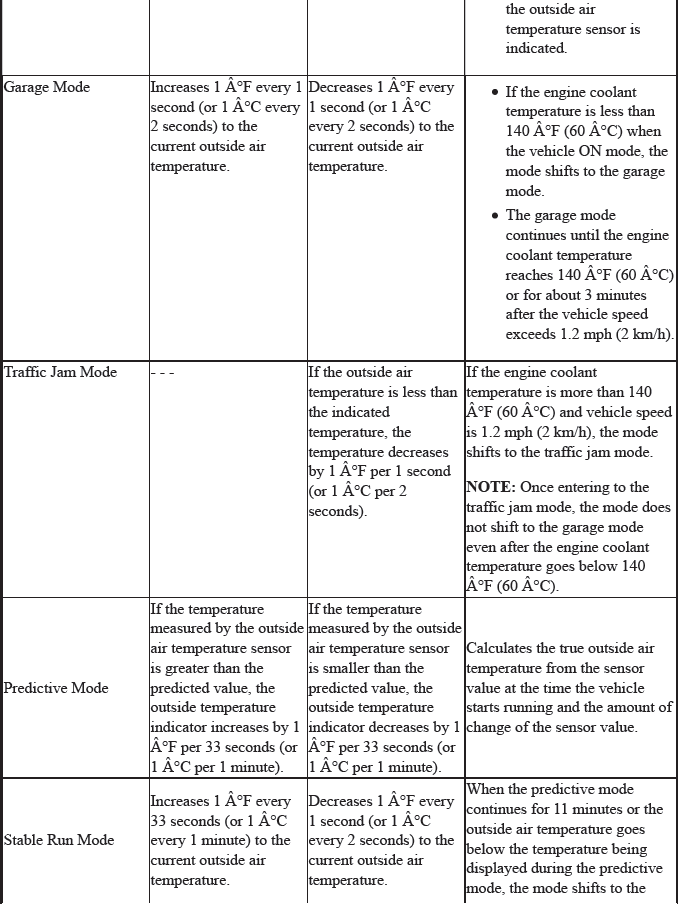

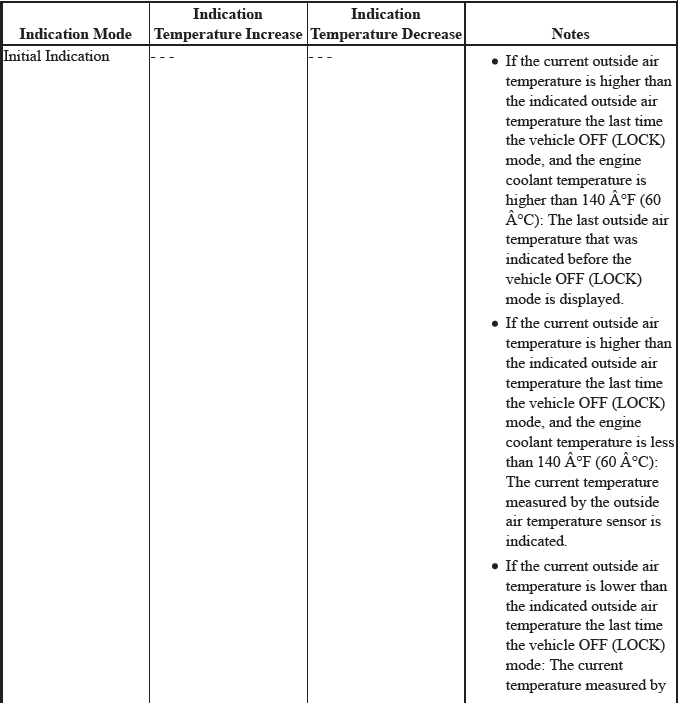

Outside Air Temperature Indication Mode

Gauges - Testing & Troubleshooting

Gauges - Testing & Troubleshooting

Gauges - Testing & Troubleshooting

1. A/C system DTC check:

Check for DTCs with the HDS.

Gauges - Testing & Troubleshooting

Is DTC B1227 or B1228 indicated?

YES

Go to the indicated DTC troubleshooting.

NO

Go to step 2.

2. Outside air temperature sensor check:

Test the outside air temperature sensor.

Is the outside air temperature sensor OK?

YES

Confirm the control method of the outside air temperature indicator.

NO

Replace the outside air temperature sensor.
