Honda HR-V: Circuit Diagram, Inputs and Outputs
CIRCUIT DIAGRAM

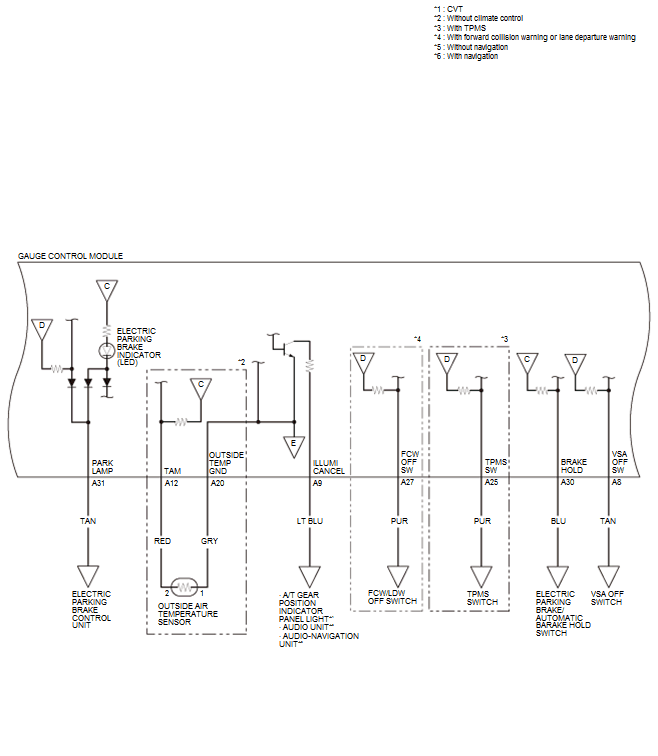

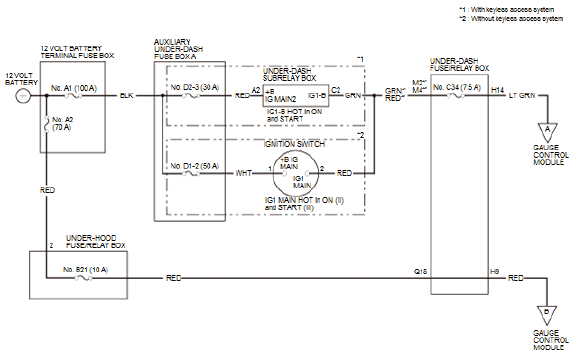

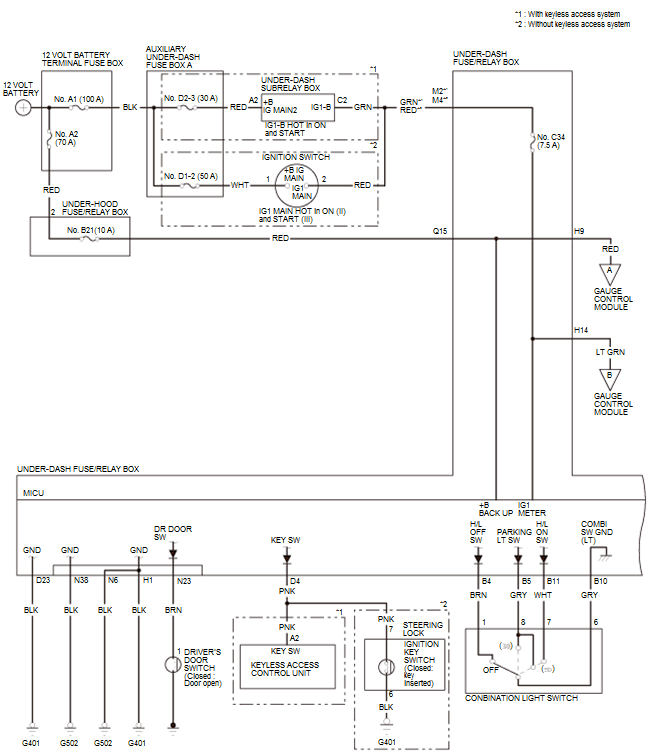

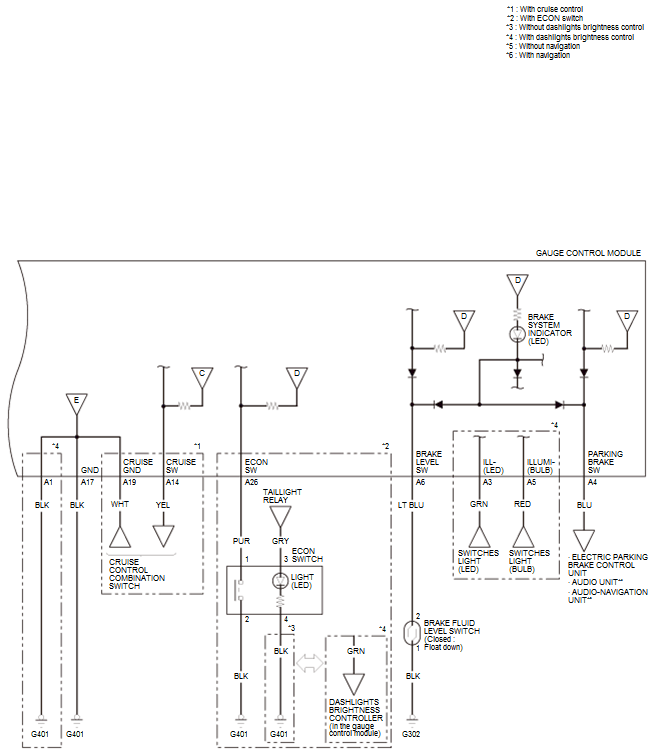

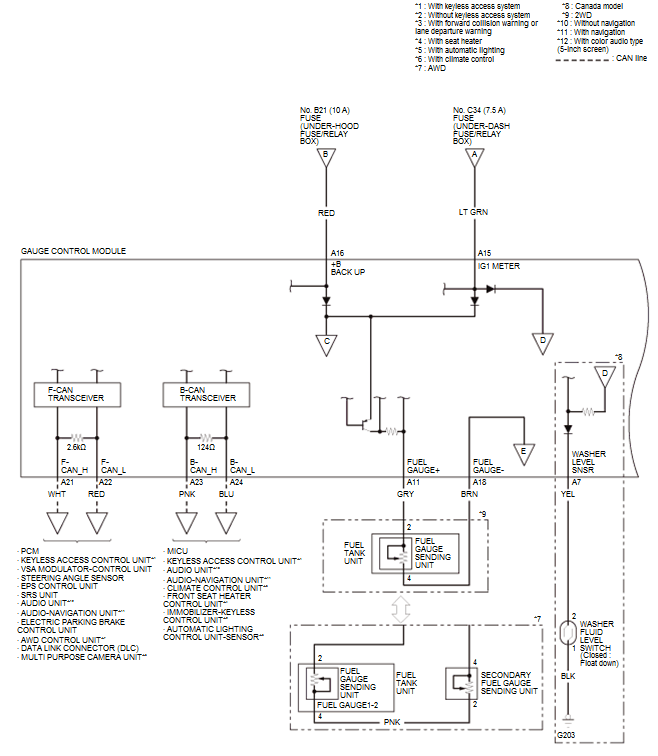

GAUGES CIRCUIT DIAGRAM
.png)
.png)
.png)
.png)

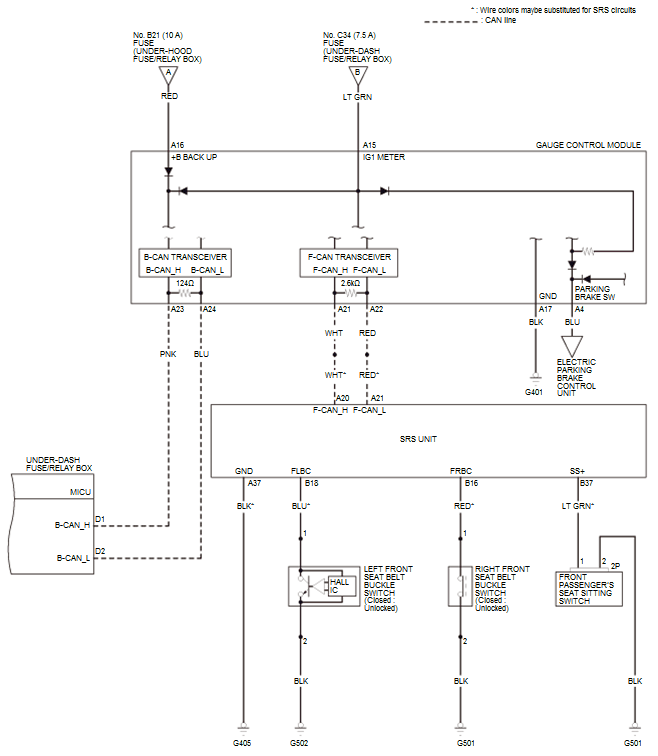

REMINDER SYSTEMS CIRCUIT DIAGRAM
.png)
.png)

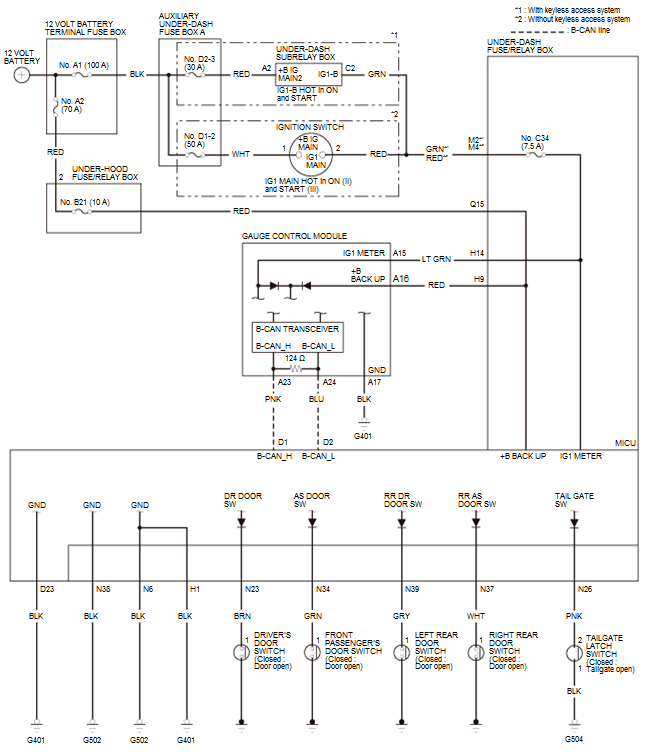

SAFETY INDICATOR SYSTEM CIRCUIT DIAGRAM
.png)
INPUTS AND OUTPUTS

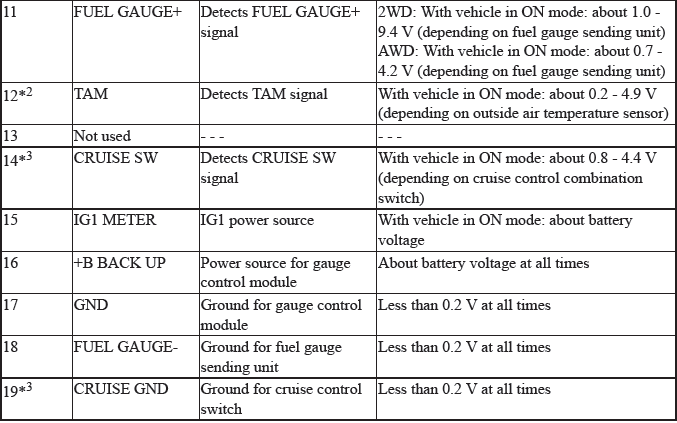

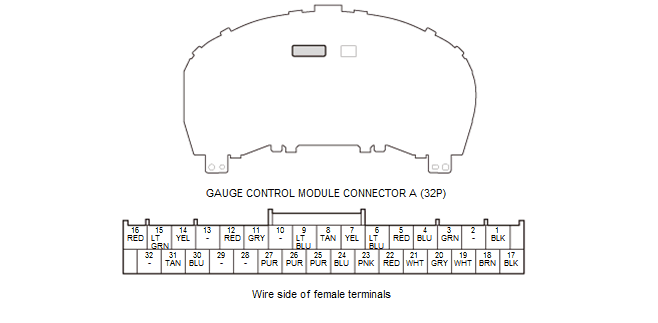

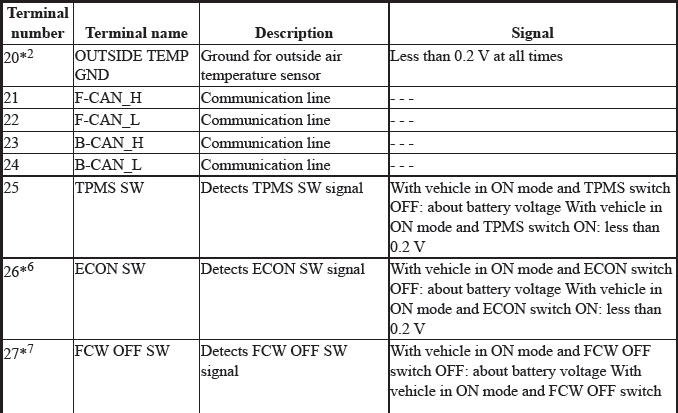

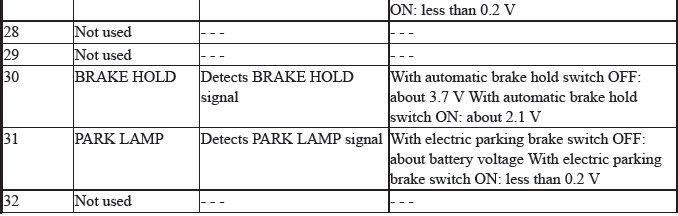

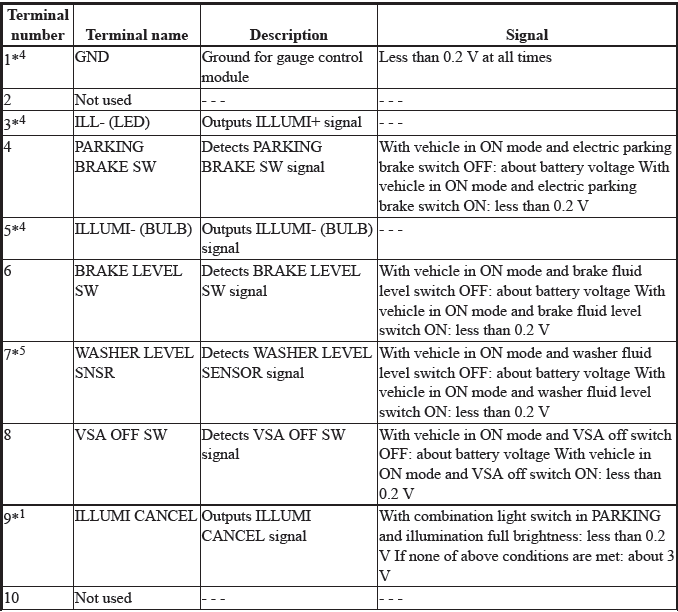

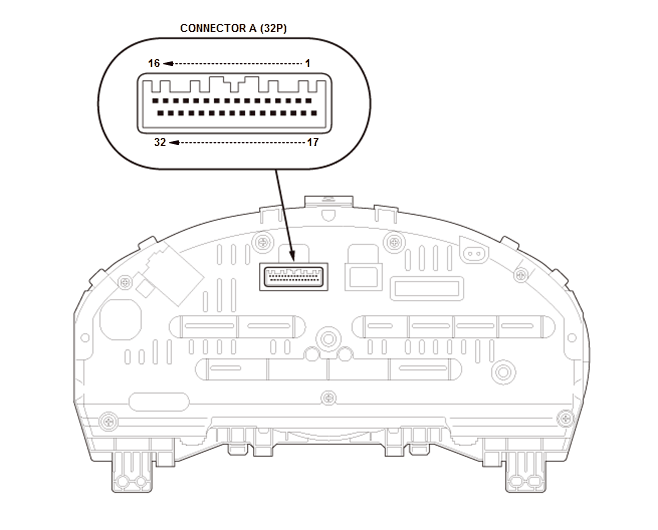

GAUGE CONTROL MODULE CONNECTOR FOR INPUTS AND OUTPUTS
.png)
.png)
.png)
*1: CVT*
*2: Without climate control*
*3: With cruise control
*4: With dashlights brightness control
*5: Canada
model
*6: With ECON switch
*7: With forward collision warning or lane depature warning
.png)
.png)
*1: CVT
*2: Without climate control
*3: With cruise control
*4: With dashlights brightness control
*5: Canada
model
*6: With ECON switch
*7: With forward collision warning or lane depature warning
GAUGES ELECTRONIC WIRING DIAGRAM
Refer to Instrument Cluster
COMPONENT LOCATION INDEX

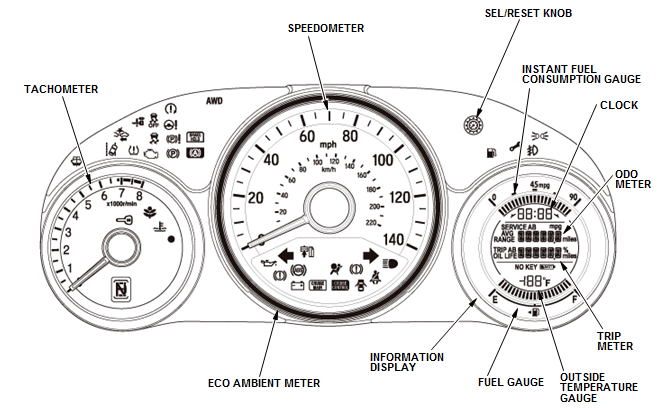

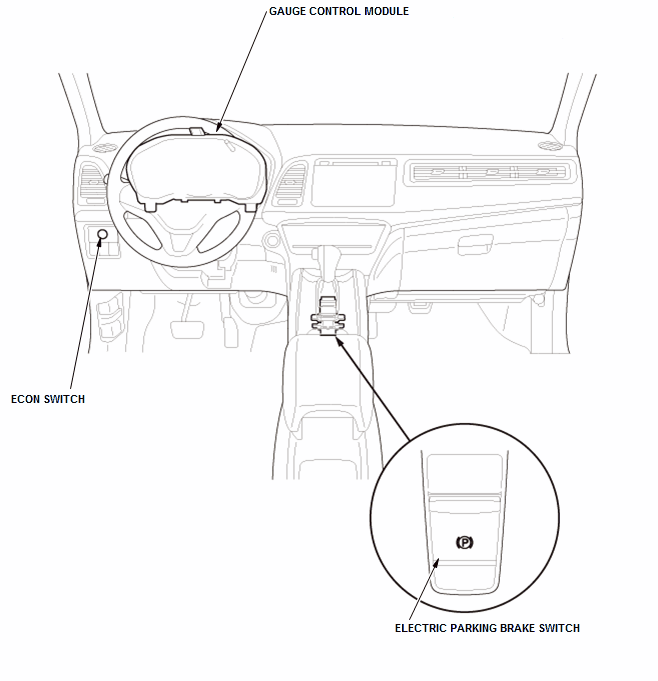

GAUGES COMPONENT LOCATION INDEX

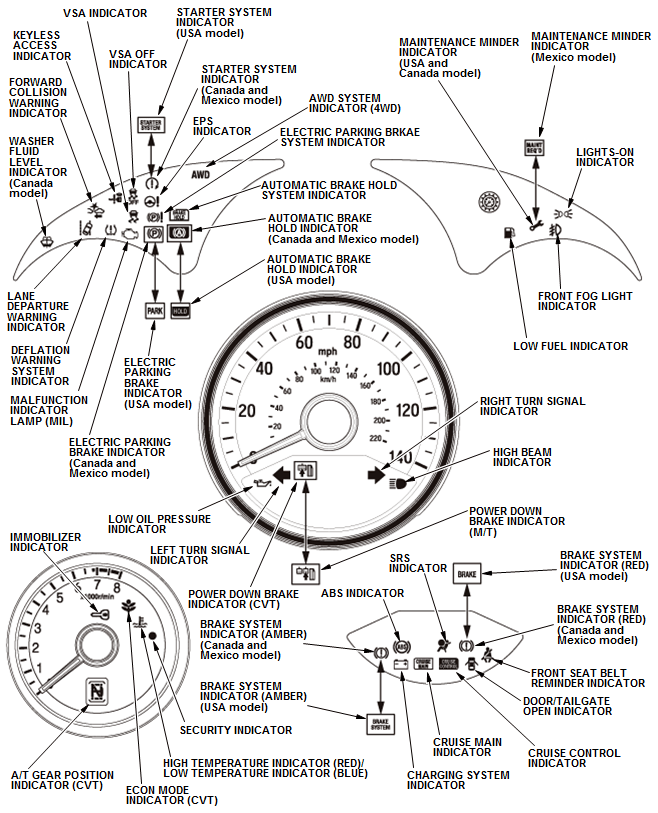

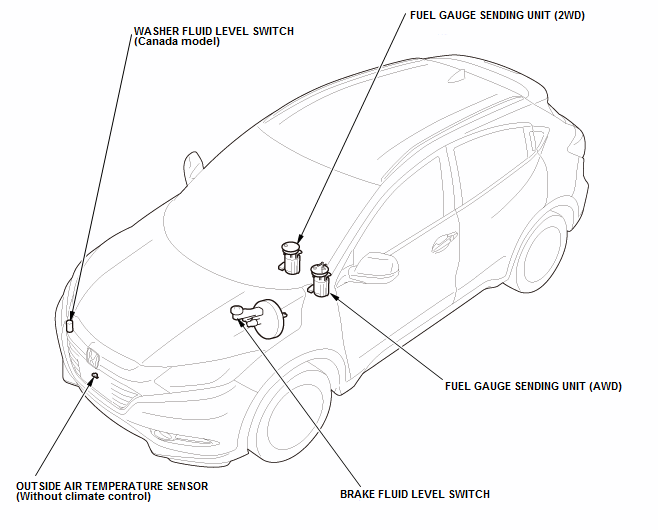

.png)
.png)
.png)
.png)
.png)

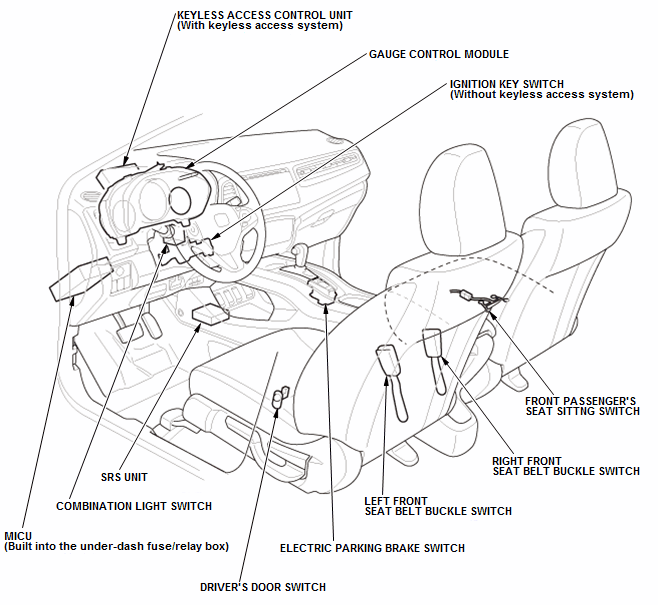

REMINDER SYSTEMS COMPONENT LOCATION INDEX
.png)

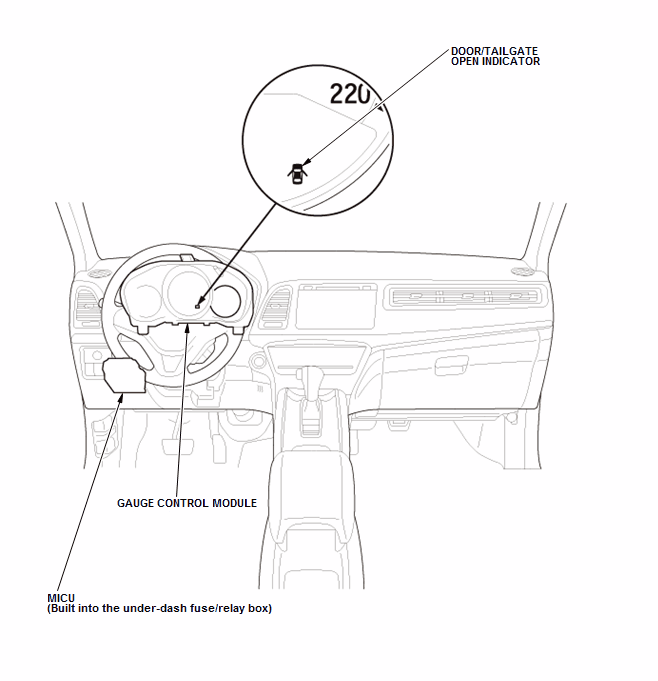

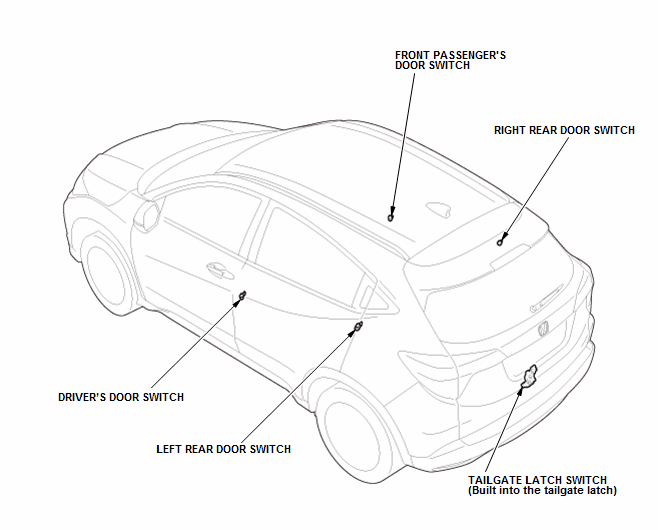

SAFETY INDICATOR SYSTEM COMPONENT LOCATION INDEX
.png)
.png)
