Honda HR-V: Front Seat-Back Cover Removal and Installation

Honda HR-V (2015-2021) Service Manual / Accessories & Equipment / Seats - Service Information / Front Seat-Back Cover Removal and Installation

Removal & Installation

NOTE : SRS components are located in this area. Review the SRS component locations - Refer to: SRS Component Location Index (KA/KC), or SRS Component Location Index (KA/KC) and the precautions and procedures before doing repairs or service.

1. Front Seat - Remove

2. Front Seat-Back Cover/Pad - Remove

Driver's seat

Seats - Service Information

Passenger's seat

Seats - Service Information

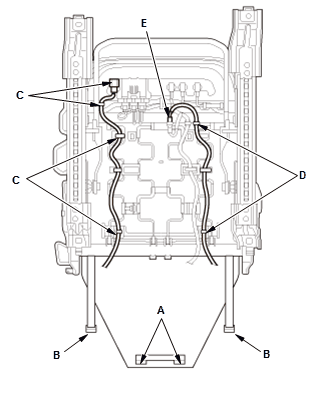

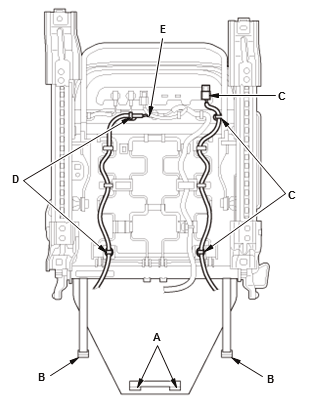

  1. Release the hooks (A)
  2. Release the hooks (B)
  3. Detach the harness clips (C). (with side airbag)
  4. Detach the harness clips (D), then disconnect the connector (E). (with seat heater)

Seats - Service Information

  1. Pull out the harness (A) from the seat-cushion cover holes (B).

    (for some models)

Seats - Service Information

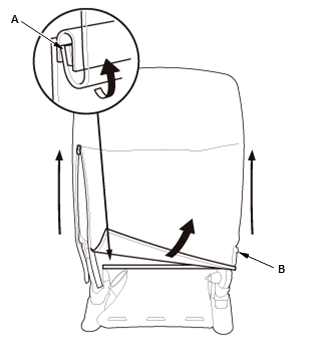

  1. Release the hook (A), then unzip the front seat-back cover (B).

Seats - Service Information

  1. Release the hooks (A) and upholstery rings (B).

Seats - Service Information

  1. Pull out the harness cover (A) and harness (B) from the seat-back cover hole (C).

    (with side airbag)

  2. Pull out the harness cover and harness (D) from the seat-back cover hole. (with seat heater)

Seats - Service Information

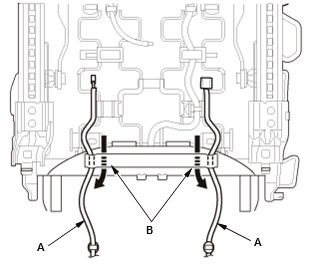

  1. Pull out the harness (A) from the harness cover hole (B). (with side airbag)
  2. Pull out the harness (C) from the harness cover hole. (with seat heater)

Seats - Service Information

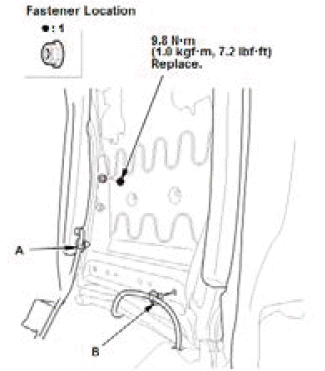

  1. Remove the nut. (with side airbag)
  2. Detach the harness clips (A). (with side airbag)
  3. Detach the harness clips (B). (with seat heater)

Seats - Service Information

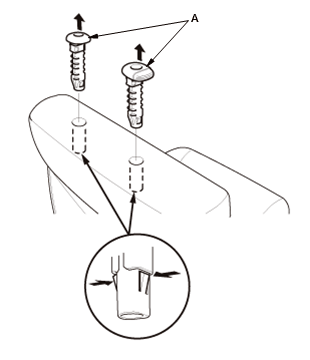

  1. Remove the head restraint guides (A).

Seats - Service Information

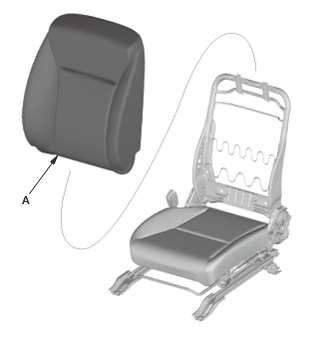

  1. Remove the front seat-back cover/pad (A).

Seats - Service Information

  1. Remove the front seat back silencer (A) from the seat-back cover/pad (B).

Seats - Service Information

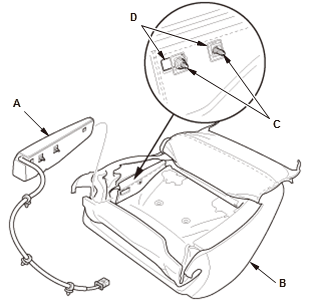

  1. Remove the side airbag (A) from the seat-back cover/pad (B).

    NOTE : Pull out the bolts (C) from the seat-back cover hole (D).

3. Front Seat-Back Cover - Remove

TYPE 1

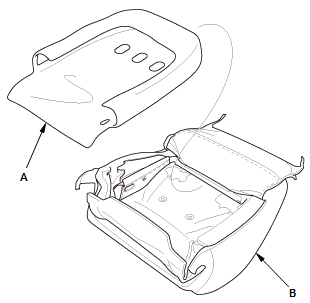

Seats - Service Information

TYPE 2

Seats - Service Information

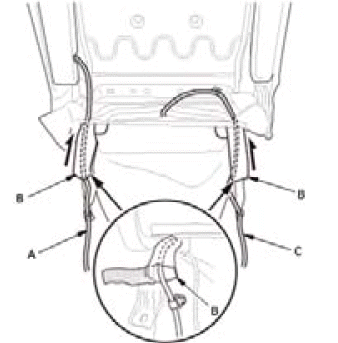

  1. Remove the upholstery rings (A) securing the front seatback cover (B).

4. All Removed Parts - Install

Seats - Service Information

  1. Install the parts in the reverse order of removal.

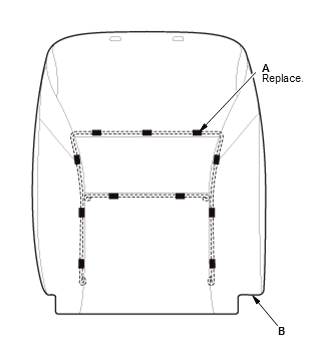

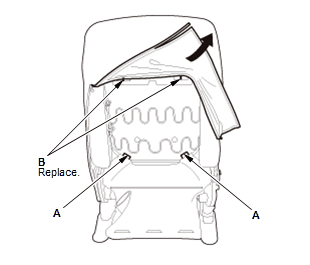

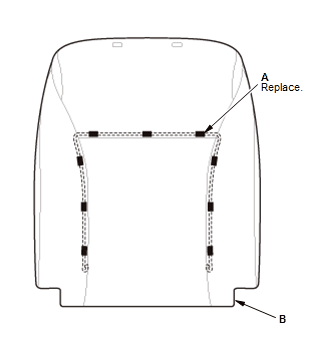

    NOTE : Replace all of the upholstery rings (A) fastening the front seat-back cover (B) to the pad wires (C) with new ones using commercially available upholstery ring pliers (D).
