Honda HR-V: Seat Heater Replacement
Replacement
NOTE : SRS components are located in this area. Review the SRS component locations - Refer to: SRS Component Location Index (KA/KC), or SRS Component Location Index (KA/KC) and the precautions and procedures before doing repairs or service.
Front Seat Cushion Heater
1. Front Seat Cushion Cover - Remove
2. Front Seat Cushion Heater - Remove

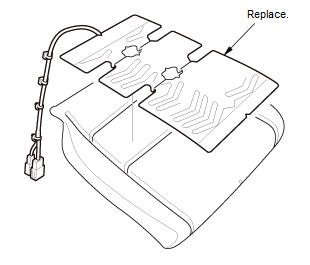

TYPE 1
.png)

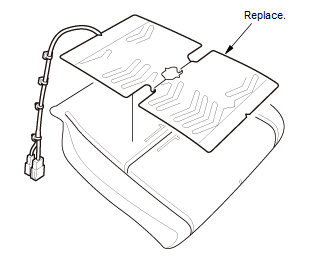

TYPE 2
.png)
NOTE : The front seat cushion heater is glued to the front seat cushion pad. When removing it, take care not to damage the front seat cushion pad.
3. Front Seat Cushion Heater - Replacement

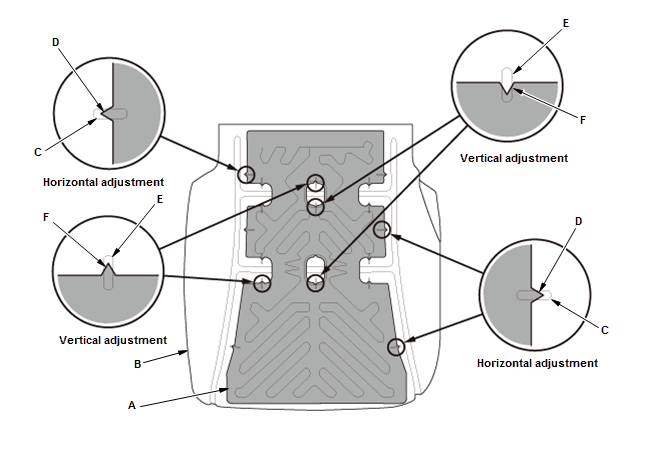

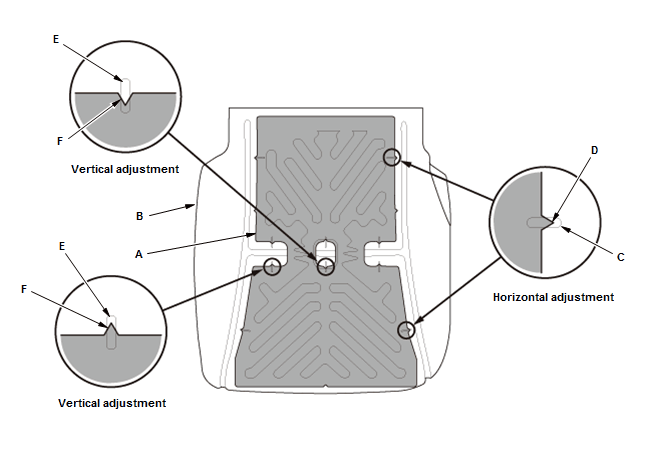

- Vertical adjustment: Overlap the positioning mark (C) on the seat heater side and the location mark (D) on the seat cushion side
- Horizontal adjustment: Overlap the positioning mark (E) on the seat heater side and the location mark (F) on the seat cushion side
TYPE 1
.png)
TYPE 2
.png)
4. All Removed Parts - Install
- All Removed Parts - Install
Front Seat-Back Heater
5. Front Seat-Back Cover - Remove
6. Front Seat-Back Heater - Remove

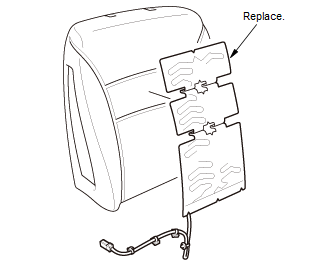

TYPE 1
.png)

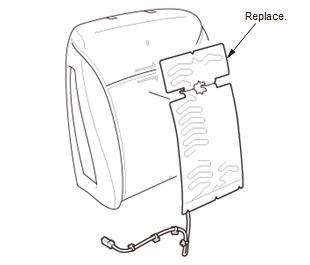

TYPE 2
.png)
NOTE : The front seat-back heater is glued to the front seat-back pad. When removing it, take care not to damage the front seat-back pad.
7. Front Seat-back Heater - Replacement

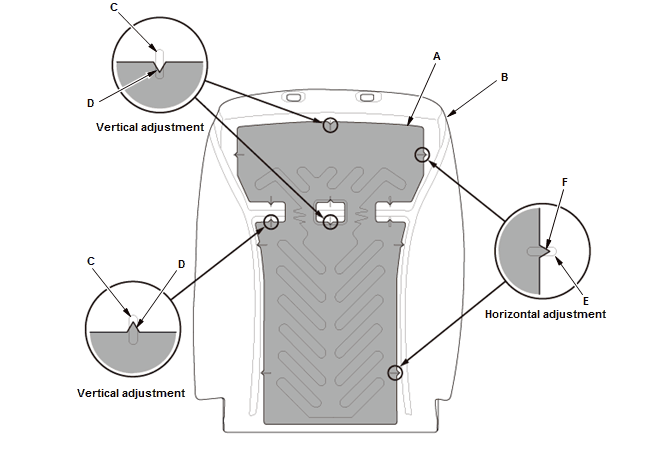

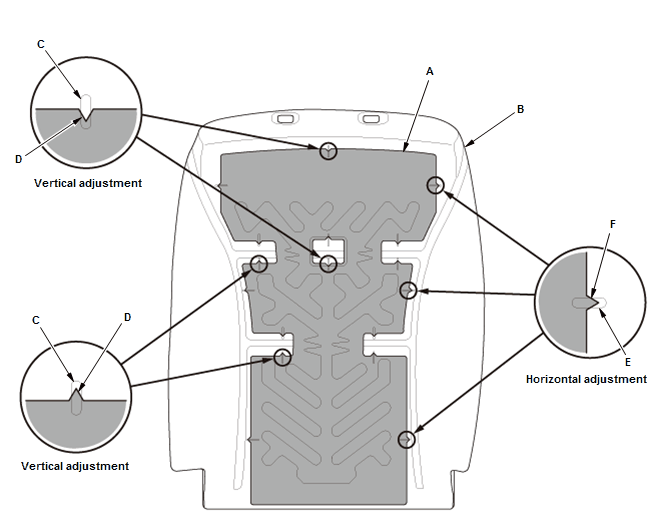

- Vertical adjustment: Overlap the positioning mark (C) on the seat heater side and the location mark (D) on the seat back side
- Horizontal adjustment: Overlap the positioning mark (E) on the seat heater side and the location mark (F) on the seat back side
TYPE 1
.png)
TYPE 2
.png)
8. All Removed Parts - Install
- Install the parts in the reverse order of removal.
