Honda HR-V: Front Door Lower Seal Removal and Installation

Honda HR-V (2015-2021) Service Manual / Accessories & Equipment / Doors - Service Information / Front Door Lower Seal Removal and Installation

Removal & Installation

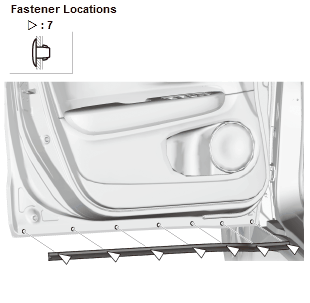

1. Front Door Lower Seal - Remove

Doors - Service Information

2. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.

FRONT DOOR OUTER HANDLE REMOVAL AND INSTALLATION

Removal & Installation

1. Front Door Panel - Remove

2. Front Door Plastic Cover - Remove

Doors - Service Information

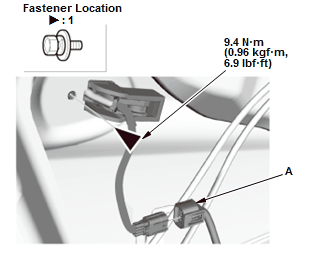

  1. Remove the plug cap (A)
  2. Disconnect the connector (B)

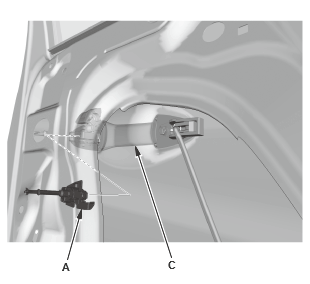

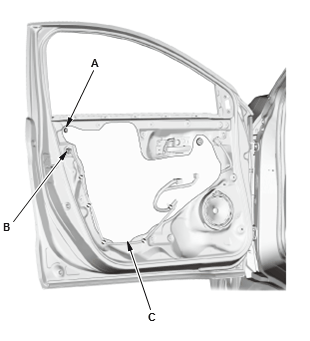

  3. Remove the front door plastic cover (C) as needed.

    NOTE : If the plastic cover is damaged or torn, replace it with a new one.

3. Front Door Outer Handle - Remove

Doors - Service Information

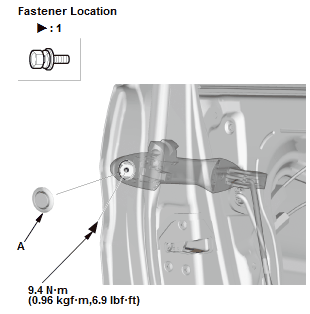

  1. Remove the plug cap (A), then remove the bolt.

Doors - Service Information

  1. Remove the bolt
  2. Disconnect the connector (A). (for some models)

Doors - Service Information

  1. Remove the bolts with a TORX T30 bit

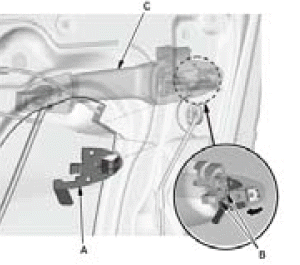

  2. Driver's side: Pull and rotate the front door latch (A) to disconnect the cylinder rod (B), and then pull the front door latch downward.

    NOTE : Take care not to bend the cables (C).

Doors - Service Information

Doors - Service Information

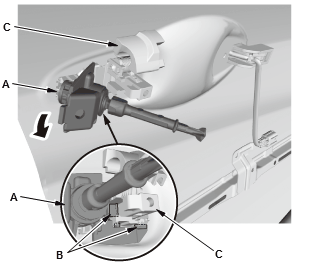

  1. Driver's side: Pull forward the rear side of the lock cylinder (A), and then release the hooks (B) from the outer handle (C) to remove the lock cylinder.

Doors - Service Information

  1. Passenger's side: Pull forward the rear side of the outer handle bracket (A), and then release the hooks (B) from the outer handle (C) to remove the outer handle bracket.

Doors - Service Information

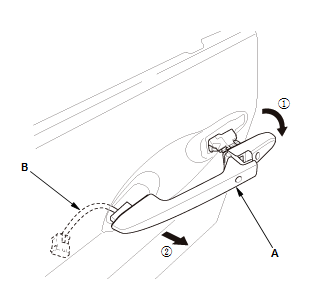

  1. Remove the front door outer handle (A)
  2. Pull out the harness (B) from the door panel. (for some models)

Doors - Service Information

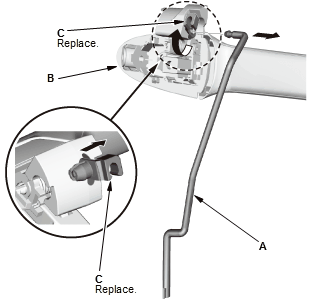

  1. Disconnect the outer handle rod (A) from the front door outer handle (B)
  2. Remove the rod fastener (C) from the outer handle, then replace it with a new one.

4. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.
