Honda HR-V: Front Door Panel Removal and Installation

Honda HR-V (2015-2021) Service Manual / Accessories & Equipment / Doors - Service Information / Front Door Panel Removal and Installation

Removal & Installation

1. Mirror Mount Cover - Remove

Doors - Service Information

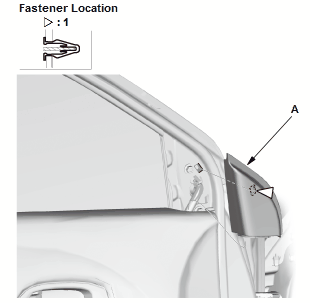

  1. Remove the mirror mount cover (A).

2. Front Door Panel - Remove

Doors - Service Information

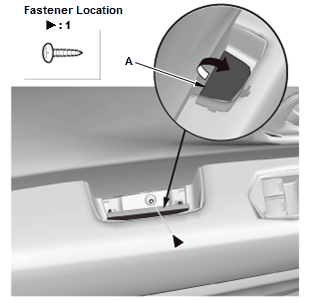

  1. Remove the cap (A) by tilting down the hook (B) with a flat-tip screwdriver.

Doors - Service Information

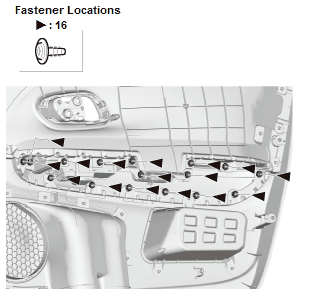

  1. Remove the screws.

Doors - Service Information

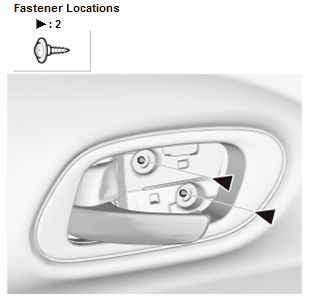

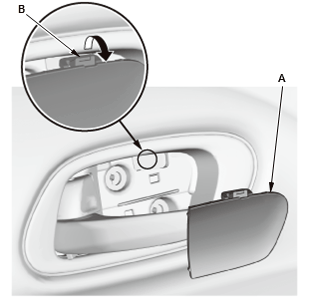

  1. Open the cap (A), then remove the screw.

Doors - Service Information

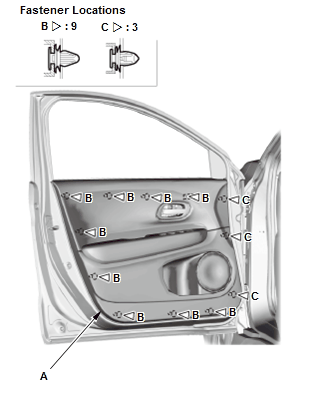

  1. Start at the bottom edge of the front door panel (A), remove the clips (B, C) with a commercially available trim pad remover.

Doors - Service Information

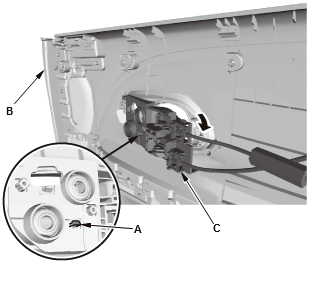

  1. Release the hook (A) while holding the front door panel (B), and remove the inner handle (C).

Doors - Service Information

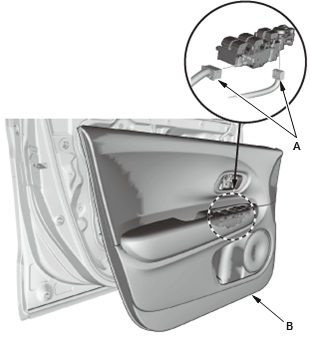

  1. Disconnect these connectors (A), then remove the front door panel (B).

3. Front Door Panel Armrest - Remove

Doors - Service Information

  1. Remove the screws.

Doors - Service Information

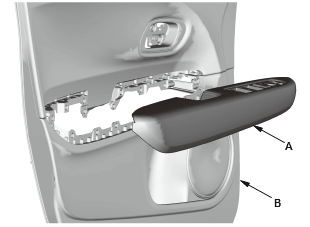

  1. Remove the door armrest (A) from the front door panel (B).

4. Power Window Switch Panel/Pull Pocket- Remove

Driver's side

Doors - Service Information

Passenger's side

Doors - Service Information

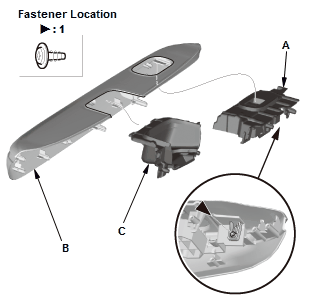

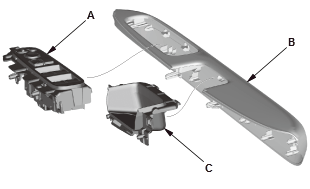

  1. Remove the power window switch panel (A) from the front door armrest (B), and remove the pull pocket (C).

5. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.

6. Power Window Control Unit - Reset

FRONT DOOR REGULATOR REMOVAL AND INSTALLATION

Removal & Installation

1. Front Door Glass - Remove

2. Front Door Regulator - Remove

Doors - Service Information

  1. Disconnect the connector (A)

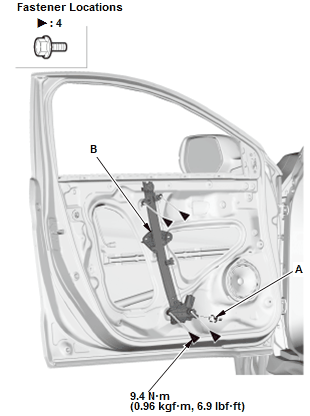

  2. Remove the bolts, then remove the front door regulator (B).

3. All Removed Parts - Install

Doors - Service Information

  1. Install the parts in the reverse order of removal.

    NOTE :

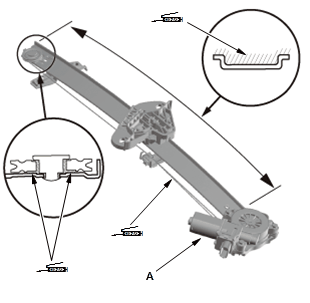

    • Apply multipurpose grease to all sliding surfaces of the front door regulator (A) where shown.
    • Do the front door glass adjustment.
