Honda HR-V: Rear Door Checker Removal and Installation

Honda HR-V (2015-2021) Service Manual / Accessories & Equipment / Doors - Service Information / Rear Door Checker Removal and Installation

Removal & Installation

1. Rear Door Panel - Remove

2. Rear Door Plastic Cover - Remove

Doors - Service Information

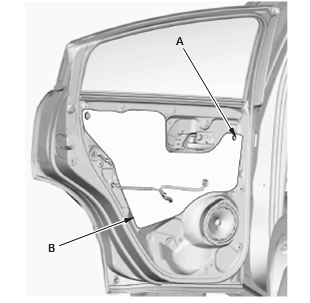

  1. Remove the plug cap (A)
  2. Remove the rear door plastic cover (B) as needed.

    NOTE : If the plastic cover is damaged or torn, replace it with a new one.

3. Rear Door Checker - Remove

Doors - Service Information

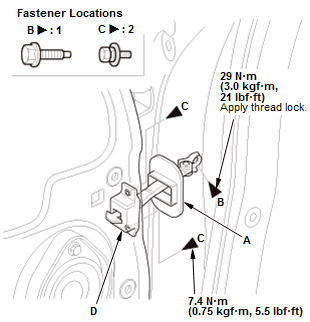

Fig. 2: Rear Door Checker With Torque Specifications

  1. Remove the door checker cap (A)
  2. While supporting the rear door, remove the bolts (B, C)
  3. Remove the rear door checker (D).

4. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.

    NOTE : Apply medium strength liquid thread lock to the door checker mounting bolt before installation.

REAR DOOR GLASS INNER WEATHERSTRIP REMOVAL AND INSTALLATION

Removal & Installation

1. Rear Door Panel - Remove

2. Rear Door Glass Inner Weatherstrip - Remove

Doors - Service Information

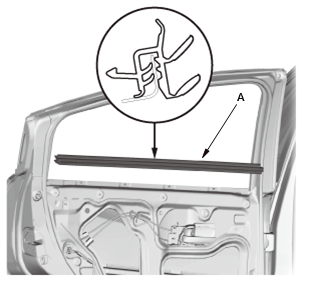

  1. Remove the front door glass inner weatherstrip (A).

3. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.
