Honda HR-V: Front Accessory Power Socket Removal and Installation

Honda HR-V (2015-2021) Service Manual / Electrical / Electrical System - Service Information / Front Accessory Power Socket Removal and Installation

Removal & Installation

1. Front Accessory Power Socket - Remove

Electrical System - Service Information

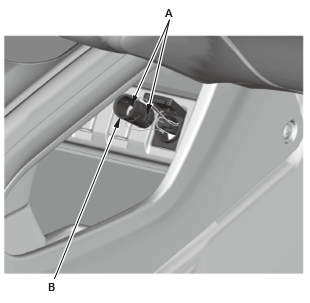

  1. Gently press the tabs (A), and remove the front accessory power socket (B).

Electrical System - Service Information

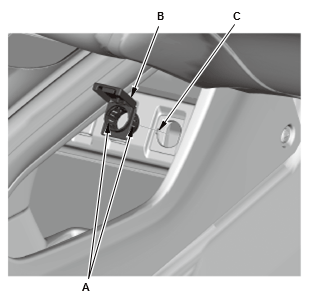

  1. Gently press the tabs (A), and remove the housing (B). Note the location of the indexing tab (C).

2. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.

IGNITION SWITCH REMOVAL AND INSTALLATION

Removal & Installation

NOTE: SRS components are located in this area. Review the SRS component locations - Refer to: SRS Component Location Index (KA/KC), or SRS Component Location Index (KA/KC) and the precautions and procedures before doing repairs or service.

1. 12 Volt Battery Terminal - Disconnect

2. Column Cover - Remove

3. Ignition Switch - Remove

Electrical System - Service Information

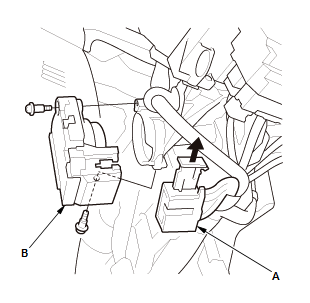

  1. Disconnect the connector (A)
  2. Remove the ignition switch (B).

4. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.
